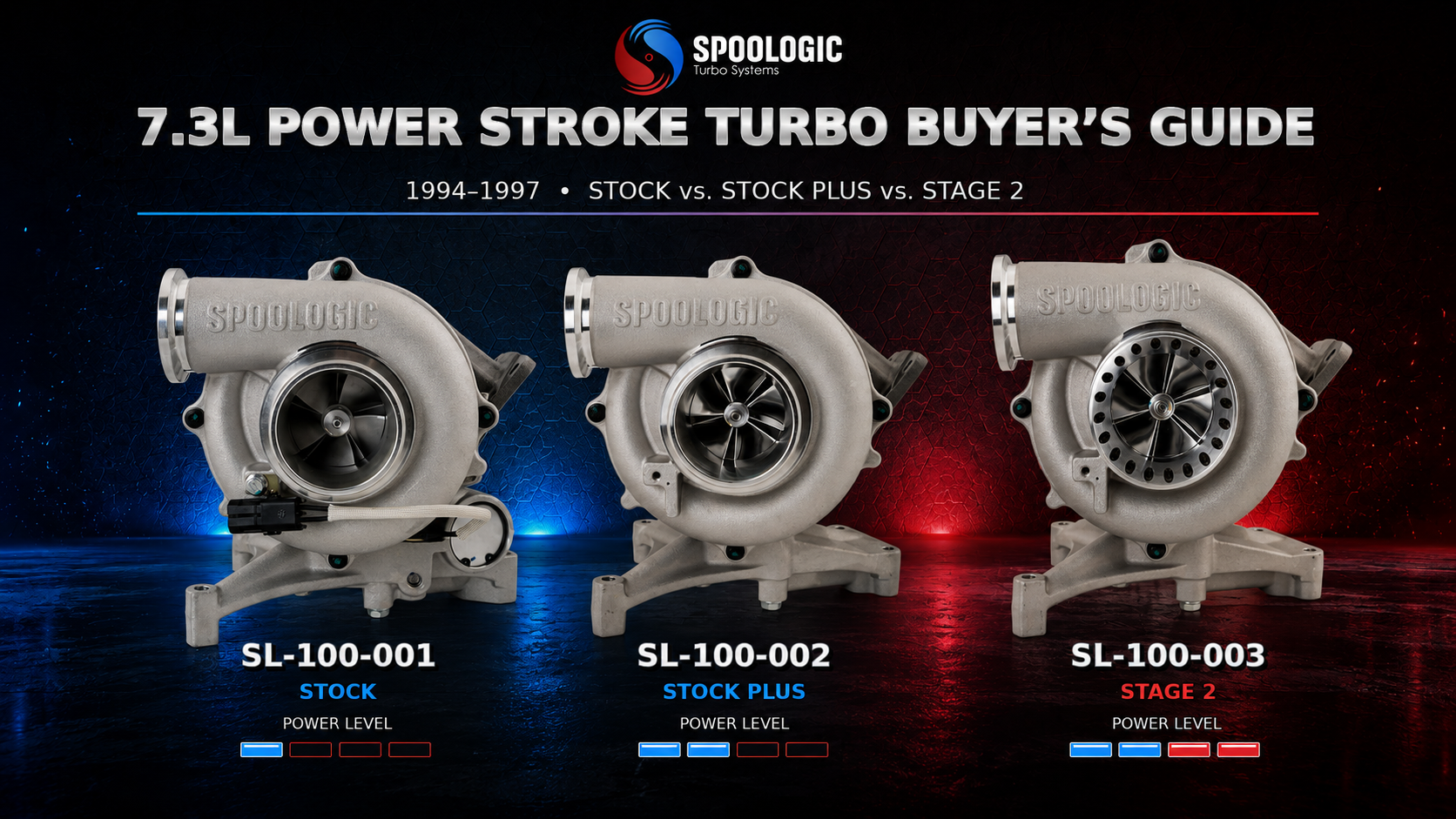

1994–1997 7.3L Power Stroke Turbo Upgrade Guide: Stock vs. Stock Plus vs. Stage 2

The 1994–1997 Ford F-250 and F-350 7.3L Power Stroke responds well to the right turbocharger upgrade, but the best choice is not automatically the largest turbo that fits in the factory location. The turbocharger must be matched to the truck’s injectors, fuel delivery, high-pressure oil system, tuning, intake, exhaust, towing requirements, and intended power level. Installing more airflow capacity than the engine can use may increase cost and complexity without improving drivability, while asking a stock-size turbo to support substantially more fuel than it was designed for can push the turbocharger beyond its most useful operating range.

SPOOLOGIC offers three direct-fit TP38 turbocharger choices for the 1994–1997 7.3L Power Stroke pickup platform: the SL-100-001 Stock, SL-100-002 Stock Plus, and SL-100-003 Stage 2. Each level serves a different type of truck. Stock restores factory-style operation, Stock Plus adds a billet compressor wheel and non-EBPV exhaust configuration for a mild performance improvement, and Stage 2 substantially increases compressor and turbine capacity for properly supported higher-output builds. This guide explains those differences and helps identify which turbo best fits a stock daily driver, towing truck, mildly modified street truck, or fully built performance combination.

Confirm You Have a 1994–1997 7.3L Power Stroke Pickup

This guide applies to 1994–1997 Ford F-250 and F-350 pickup trucks equipped with the direct-injected 7.3L Power Stroke diesel engine and factory-style Garrett TP38 turbo system. Because the 1994 model year also included trucks equipped with the earlier naturally aspirated or turbocharged 7.3L IDI engine, owners of a 1994 truck must confirm that the vehicle is Power Stroke-equipped before ordering. The 1994 Power Stroke application is also commonly described as 1994.5 because the engine was introduced during the model year.

These turbochargers do not fit the Early 1999 or Late 1999–2003 7.3L Power Stroke turbo systems. Early 1999 Super Duty trucks use a different GTP38 turbo, pedestal, exhaust inlet arrangement, intake system, and charge-air connections. Late 1999–2003 trucks use another GTP38 configuration with an internally wastegated turbine housing. Owners of a later truck should use the 1999.5–2003 7.3L Power Stroke Turbo Upgrade Guide instead.

1994–1997 7.3L Power Stroke Turbo Comparison

Turbo	Compressor	Turbine and Bearing System	EBPV Configuration	Calibration Requirements	Best Use
SL-100-001 Stock	60/80mm 5+5 cast aluminum	Factory-style turbine with upgraded journal-bearing internals	Retains factory-style EBPV pedestal and outlet	Stock-style replacement	Daily driving, towing, work trucks, fleet use, and restoration
SL-100-002 Stock Plus	60/80/84mm 5+5 billet aluminum extended-tip design	Factory-style turbine with upgraded journal-bearing internals	Non-EBPV pedestal and outlet with EBPV terminator	Stock or mild custom calibration depending on the rest of the truck	Daily driving, towing, and mild performance use
SL-100-003 Stage 2	66/88/94mm 6+6 billet aluminum with 3.5-inch anti-surge housing	76.5/67.8mm 10-blade turbine, 1.0 A/R housing, and upgraded journal-bearing internals	Non-EBPV pedestal and outlet with EBPV terminator	Custom tuning required	Properly supported higher-output builds with increased fueling

All three SPOOLOGIC turbos retain the non-wastegated, fixed-geometry layout used by the original 1994–1997 TP38 system. This is an important difference from the wastegated GTP38 turbochargers used on later 7.3L Power Stroke trucks. The Stage 2 turbo’s stated ability to support approximately 5–7 PSI more boost than the stock TP38 describes its additional airflow and boost capability. It is not a guaranteed boost increase or a universal boost target. Actual boost depends on injector output, custom tuning, engine load, exhaust energy, elevation, intake restriction, exhaust restriction, and the condition of the complete charge-air system.

Why There Are Three Turbo Levels for This Application

The 1994–1997 SPOOLOGIC lineup contains Stock, Stock Plus, and Stage 2 options. There is no separate Stage 1 turbo in this application. These names identify three distinct configurations rather than a universal industry-wide rating system. Stock is designed to restore factory-style performance. Stock Plus is a conservative billet-wheel upgrade that retains the responsive factory-style turbine. Stage 2 makes a much larger jump by upgrading both the compressor and turbine sides for trucks with increased fueling, custom tuning, and the supporting systems required for substantially greater airflow.

A turbocharger does not create a fixed amount of horsepower by itself. The compressor supplies air, the injectors supply fuel, the high-pressure oil system operates the HEUI injectors, and the engine calibration coordinates the complete combination. A larger compressor can support more power, but only when the engine has enough fuel and exhaust energy to operate the turbo in its intended range. Installing the Stage 2 on a stock-fueled truck does not automatically produce Stage 2 power.

How to Read the Compressor-Wheel Measurements

Compressor-wheel dimensions are normally listed as inducer diameter, exducer diameter, and, when applicable, extended-tip diameter. The inducer is the smaller measurement at the compressor inlet. The exducer is measured across the larger portion of the wheel. An extended-tip wheel uses additional blade geometry beyond the primary exducer measurement to increase effective airflow capability.

The Stock turbo uses a 60/80mm 5+5 cast aluminum compressor wheel. Stock Plus retains the 60mm inducer and 80mm exducer but changes to billet aluminum and adds an 84mm extended-tip profile. Stage 2 increases the compressor to 66/88/94mm and pairs it with a 3.5-inch anti-surge housing. Wheel diameter is important, but it is not the only factor that determines performance. Blade count, blade shape, extended-tip geometry, compressor housing design, shaft speed, pressure ratio, and the turbine driving the compressor all affect how the turbo behaves on the engine.

Why the Turbine Side Matters

The turbine extracts energy from the engine’s exhaust to drive the compressor. A factory-style turbine generally responds quickly because it requires less exhaust energy to accelerate, making it well suited to stock and mildly modified trucks. As injector output and exhaust flow increase, however, the factory-size turbine can eventually become a restriction. Increasing compressor size without providing enough turbine capacity can limit high-RPM airflow and increase drive pressure.

The SL-100-001 Stock and SL-100-002 Stock Plus retain a factory-style TP38 turbine and turbine housing. This preserves the responsive characteristics expected from a stock or mild-upgrade turbo. The SL-100-003 Stage 2 uses a larger 76.5/67.8mm 10-blade turbine wheel and 1.0 A/R turbine housing. The larger turbine provides additional exhaust-flow capacity for higher-output combinations, but it also requires enough fuel and exhaust energy to operate effectively. That is one reason the Stage 2 must be matched with custom tuning and supporting modifications.

SPOOLOGIC SL-100-001 Stock Turbocharger

The SPOOLOGIC SL-100-001 Stock TP38 Turbocharger is designed for owners who need to replace a worn, leaking, damaged, or failed factory turbo without changing the basic character of the truck. It uses a 60/80mm 5+5 cast aluminum compressor wheel matched to a factory-style TP38 turbine and non-wastegated turbine housing. This combination maintains the familiar throttle response, power delivery, and drivability expected from the original turbo system.

The Stock turbo retains the factory-style exhaust back-pressure valve configuration. It includes an EBPV pedestal and outlet plate, allowing the truck to retain the original cold-weather warm-up system and factory-style exhaust arrangement. That makes the SL-100-001 the most appropriate choice for a stock restoration, fleet truck, work truck, tow vehicle, or daily driver whose owner is satisfied with factory power and does not want to delete the EBPV system.

Although it is a stock-replacement turbo, the SL-100-001 is assembled with updated internal components. These include extreme-duty bronze-alloy journal bearings, a 360-degree thrust bearing, step-gap seal rings, and a high-speed VSR-balanced rotating assembly. The goal is dependable factory-style operation rather than a claimed performance increase.

Choose the Stock turbo when:

• The truck has stock injectors or a factory-style fuel and tuning combination
• The goal is to restore original performance and drivability
• The truck is used for daily driving, towing, work, or fleet service
• Retaining the factory EBPV system is important
• No additional turbo airflow capacity is required
• A straightforward stock-style replacement is preferred

SPOOLOGIC SL-100-002 Stock Plus Turbocharger

The SPOOLOGIC SL-100-002 Stock Plus TP38 Turbocharger is designed for owners who want a mild but meaningful performance improvement without moving to the much larger Stage 2 configuration. It replaces the stock-style cast compressor with a 60/80/84mm 5+5 billet aluminum extended-tip wheel while retaining the responsive factory-style TP38 turbine and turbine housing.

The billet compressor wheel increases airflow capability and improves throttle response while preserving the drivability expected from a mild TP38 upgrade. The SL-100-002 typically supports gains of approximately 15–20 horsepower and 5–10 ft-lbs of torque over the Stock turbo when installed on an appropriate combination. These are typical supported gains rather than a guaranteed chassis-dynamometer result. Actual output depends on the truck’s condition, injectors, calibration, intake, exhaust, elevation, and supporting systems.

The Stock Plus also replaces the factory EBPV hardware with a non-EBPV pedestal and non-EBPV outlet plate. Removing the EBPV flap from the exhaust path reduces restriction and eliminates the valve assembly as a potential exhaust leak, oil leak, or future service point. An EBPV terminator is included for the factory electrical connection. The tradeoff is that the truck no longer retains the original exhaust back-pressure cold-weather warm-up function.

Custom tuning is not required solely to install the Stock Plus turbo on an otherwise compatible truck. A mild custom calibration may improve the complete combination when other performance modifications are present, but the SL-100-002 does not carry the Stage 2 requirement for upgraded fueling and a purpose-matched custom tune.

Choose the Stock Plus turbo when:

• The truck is stock or mildly modified
• A billet compressor-wheel upgrade is preferred over a stock replacement
• The truck is used for daily driving, towing, or work
• Improved airflow and throttle response are desired
• The owner wants to eliminate the factory EBPV assembly
• The truck does not need the airflow capacity of a 66mm Stage 2 turbo

SPOOLOGIC SL-100-003 Stage 2 Turbocharger

The SPOOLOGIC SL-100-003 Stage 2 TP38 Turbocharger is a substantially larger performance package designed for properly supported higher-output builds. It is not simply a Stock Plus turbo with another compressor wheel. The Stage 2 combines a 66/88/94mm 6+6 billet aluminum compressor wheel, 3.5-inch anti-surge compressor housing, 76.5/67.8mm 10-blade turbine wheel, 1.0 A/R turbine housing, and non-EBPV exhaust configuration.

The larger compressor provides considerably more airflow capacity than the 60mm Stock and Stock Plus wheels. Its extended-tip design and anti-surge housing help broaden the usable compressor range and support stable airflow at higher boost. On the exhaust side, the larger 10-blade turbine and 1.0 A/R housing provide additional flow capacity for trucks with substantially increased fueling. When correctly matched, this combination is designed to improve high-RPM airflow, reduce turbine-side restriction, and help control smoke and exhaust-gas temperature under load.

The SL-100-003 is designed to support builds in approximately the 500–575 rear-wheel-horsepower range when combined with the proper injectors, fuel delivery, high-pressure oil supply, intake, exhaust, monitoring, and custom tuning. The turbocharger does not create 500–575 horsepower by itself. It provides the airflow capacity required by a properly built engine combination capable of producing that power.

⚠ Custom Tuning Is Required for Stage 2

The SL-100-003 is not designed to operate correctly on the factory calibration. Custom tuning must be matched to the turbocharger, injectors, fuel system, high-pressure oil system, and supporting modifications before the vehicle is driven. Installing the Stage 2 on a factory tune can leave the turbo underboosted, limit performance, and create drivability problems because the fueling, engine calibration, and turbocharger are not properly coordinated.

SPOOLOGIC does not supply, write, sell, or assist with custom tuning. Tuning arrangements should be made with a qualified 7.3L Power Stroke calibrator before the turbo is installed.

Choose the Stage 2 turbo when:

• The truck has or will receive larger performance injectors
• The fuel system can support the planned injector and power combination
• The high-pressure oil system can operate the selected HEUI injectors
• A qualified tuner will create a calibration for the complete build
• A compatible high-flow intake and free-flowing exhaust are installed
• The up-pipes and charge-air system are leak-free
• Boost and exhaust-gas temperature will be monitored
• The realistic goal is a fully supported higher-output build

Stock vs. Stock Plus: Which Is Better for a Tow Truck?

For a stock or near-stock tow truck, the decision usually comes down to whether the owner wants factory-style operation or a conservative performance improvement. The SL-100-001 Stock turbo maintains the original EBPV system and restores factory-style response. It is the safest choice for a restoration, fleet vehicle, or owner who wants the truck to remain as close as possible to its original configuration.

The SL-100-002 Stock Plus is usually the more balanced choice for an owner who already needs a new turbo and wants improved airflow, a billet compressor wheel, and elimination of the factory EBPV assembly. It retains the responsive factory-style turbine, making it better matched to normal driving and towing than an oversized turbo intended for substantially increased fueling.

The Stage 2 should not be selected for a stock tow truck simply because it is the highest performance level available. Without larger injectors, custom tuning, and the systems needed to operate the larger compressor and turbine correctly, much of its airflow capacity will go unused. A mismatched large turbo can also respond more slowly in the low-RPM operating range where a tow vehicle spends considerable time.

Supporting Systems to Inspect Before Replacing the Turbo

A new turbocharger cannot correct leaks, restrictions, or control problems elsewhere in the engine. Before installing any of the three SPOOLOGIC turbos, inspect the up-pipes and turbine-inlet connections for pre-turbo exhaust leaks. Exhaust escaping before it reaches the turbine reduces the energy available to drive the turbo and can cause slow spool-up, low boost, excessive smoke, and poor towing performance.

Inspect the compressor-outlet connections, intake plenums, boots, clamps, and intercooler system for charge-air leaks. A turbo may be operating correctly while a leaking boot or intake connection prevents the compressed air from reaching the cylinders. Any leak that causes low boost with the old turbo can produce the same symptom after the replacement turbo is installed.

The turbocharger also depends on clean engine oil, proper oil delivery, and an unrestricted drain path. Contaminated oil, sludge, debris, a restricted feed passage, or poor drain flow can damage a new turbo regardless of its performance level. The engine’s crankcase-ventilation system, air filter, intake tubing, and compressor inlet should also be inspected so the replacement turbo does not operate against excessive restriction or ingest foreign-object debris.

Supporting Modifications for the Stage 2

The Stage 2 should be treated as one component of a complete performance build. The appropriate combination depends on the truck’s target output and intended use, but planning should include increased-capacity injectors, adequate low-pressure fuel delivery, sufficient high-pressure oil supply, a compatible high-flow intake, free-flowing exhaust, leak-free up-pipes, secure charge-air boots and clamps, boost monitoring, exhaust-gas-temperature monitoring, and custom tuning.

The included 3.5-inch anti-surge compressor housing also requires the application-specific SPOOLOGIC turbo intake boot supplied with the turbocharger. The correct boot must be selected for the vehicle application. The pickup-truck configuration uses the F-250/F-350 intake boot included for that installation.

Injector size should not be selected from a turbo horsepower rating alone. Nozzle size, injection duration, high-pressure oil demand, fuel supply, tuning strategy, towing load, smoke control, and desired exhaust temperature all matter. A qualified 7.3L Power Stroke builder and tuner should evaluate the complete combination rather than treating the turbo and injectors as independent upgrades.

Which 1994–1997 7.3L Turbo Should You Choose?

Choose the SL-100-001 Stock Turbo for Factory-Style Operation

Select the Stock turbo when the goal is dependable factory-style performance, predictable response, original EBPV operation, and straightforward replacement. It is the best fit for stock daily drivers, work trucks, tow vehicles, fleet applications, and restorations that do not require additional turbo airflow capacity.

Choose the SL-100-002 Stock Plus for the Best Mild Upgrade

Select Stock Plus when the truck is stock or mildly modified and the owner wants a responsive billet-wheel upgrade without moving into the fueling, tuning, and supporting-modification requirements of Stage 2. It is especially well matched to daily drivers and tow trucks that benefit from improved airflow while continuing to use the responsive factory-style TP38 turbine. The owner must also be comfortable eliminating the factory EBPV system.

Choose the SL-100-003 Stage 2 for a Fully Supported Performance Build

Select Stage 2 when larger injectors, adequate fuel delivery, sufficient high-pressure oil capacity, a high-flow intake, upgraded exhaust flow, leak-free up-pipes, secure charge-air plumbing, monitoring, and custom tuning are already installed or included in the build plan. Its larger compressor, larger turbine, anti-surge housing, and 1.0 A/R turbine housing provide capacity the lower levels do not, but that capacity becomes useful only when the engine and calibration are capable of using it.

Frequently Asked Questions

Is the 1994–1997 Turbo a TP38 or GTP38?

The factory-style turbo used on 1994–1997 7.3L Power Stroke pickups is the Garrett TP38. Early 1999 and Late 1999–2003 Super Duty trucks use different GTP38 configurations. These turbo families are not directly interchangeable without changing multiple supporting components.

Does This Turbo Fit a 1994 7.3L IDI Truck?

No. These turbos fit 1994 trucks only when equipped with the direct-injected 7.3L Power Stroke engine. They do not fit the earlier naturally aspirated or factory-turbocharged 7.3L IDI engine. Because both engines were offered during the 1994 model year, engine identification is required before ordering.

Do Any of These Turbos Use a Wastegate?

No. The 1994–1997 TP38 uses a non-wastegated, fixed-geometry turbine configuration. This differs from the internally wastegated GTP38 turbo system used on Late 1999–2003 7.3L Power Stroke trucks.

Does the Stock Turbo Retain the Factory EBPV?

Yes. The SL-100-001 Stock turbo includes a factory-style EBPV pedestal and outlet plate. It is the only turbo in this three-option lineup that retains the original exhaust back-pressure valve configuration.

Do Stock Plus and Stage 2 Delete the EBPV?

Yes. The SL-100-002 Stock Plus and SL-100-003 Stage 2 include a non-EBPV pedestal, non-EBPV outlet plate, and EBPV terminator. Removing the valve eliminates the EBPV flap from the exhaust path and removes the original valve assembly as a potential leak or service point, but the factory cold-weather exhaust back-pressure warm-up function is no longer retained.

Does the Stock Plus Turbo Require Custom Tuning?

Custom tuning is not required solely to install the Stock Plus turbo on an otherwise compatible truck. It is designed as a mild upgrade for stock and lightly modified combinations. A properly written calibration may improve the overall combination when other performance modifications are present.

Does the Stage 2 Turbo Require Custom Tuning?

Yes. Custom tuning is required for the SL-100-003. The calibration must be matched to the larger compressor, larger turbine, injectors, fuel supply, high-pressure oil system, intake, exhaust, and intended use. The Stage 2 is not designed to operate correctly on the factory calibration.

Can the Stage 2 Be Installed With Stock Injectors?

The SL-100-003 is a direct-fit turbocharger, but it is designed for higher-output combinations with increased fueling and the supporting systems needed to use its additional airflow. With stock injectors, much of the turbo’s capacity would go unused while the owner would still face the custom-tuning and supporting-hardware requirements. Stock or Stock Plus is normally a more appropriate match for a stock-fueled truck.

Does the Stage 2 Turbo Make 500–575 Rear-Wheel Horsepower?

The turbocharger does not create that power by itself. The SL-100-003 is designed to provide enough airflow to support approximately 500–575 rear-wheel horsepower when combined with the proper injectors, fuel delivery, high-pressure oil supply, intake, exhaust, engine condition, and custom tuning. Actual output must be produced by the complete engine combination.

Will the Stage 2 Automatically Add 5–7 PSI of Boost?

No fixed increase is guaranteed. The Stage 2 has approximately 5–7 PSI more boost capability than the stock TP38 configuration, but actual manifold pressure depends on fueling, tuning, engine load, exhaust energy, elevation, intake and exhaust restriction, and the condition of the charge-air system. Boost should be monitored as one part of the complete engine combination rather than treated as the sole measurement of turbo performance.

Will a Larger Turbo Lower Exhaust-Gas Temperature?

A correctly matched higher-flowing turbo can provide the air required to support additional fuel more cleanly and may help control exhaust-gas temperature in a properly calibrated combination. A larger turbo does not guarantee lower EGT. If the turbo is oversized, underdriven, paired with excessive fuel, affected by exhaust or boost leaks, or tuned incorrectly, response and exhaust temperature can become worse.

Do These Turbos Fit the Early 1999 7.3L Power Stroke?

No. Although the Early 1999 turbo is also related to the original 7.3L Power Stroke platform, it uses a different GTP38 turbocharger, pedestal, exhaust inlet arrangement, up-pipes, intake crossover, and charge-air connections. The 1994–1997 TP38 turbos should not be ordered for an Early 1999 truck.

The Bottom Line

The SPOOLOGIC 1994–1997 7.3L Power Stroke turbo lineup provides three clearly different choices. The SL-100-001 Stock restores factory-style operation and retains the original EBPV configuration. The SL-100-002 Stock Plus adds a 60/80/84mm billet extended-tip compressor, mild supported performance gains, and a non-EBPV exhaust configuration while retaining the responsive factory-style turbine. The SL-100-003 Stage 2 adds a 66/88/94mm compressor, 3.5-inch anti-surge housing, 76.5/67.8mm 10-blade turbine, and 1.0 A/R turbine housing for properly supported higher-output builds.

Choose the turbo that matches the truck you actually have and the build you are prepared to complete—not simply the highest stage number available. Stock is the correct choice for factory-style operation. Stock Plus is the best all-around mild upgrade for most stock and lightly modified trucks. Stage 2 is intended for increased-fueling combinations with custom tuning and the supporting systems required to use its substantially greater airflow capacity. Customers who are unsure which configuration fits their truck can contact SPOOLOGIC at 844-266-7800 with information about the truck’s injectors, tuning, fuel system, high-pressure oil system, intake, exhaust, towing use, and realistic power goal before placing an order.
