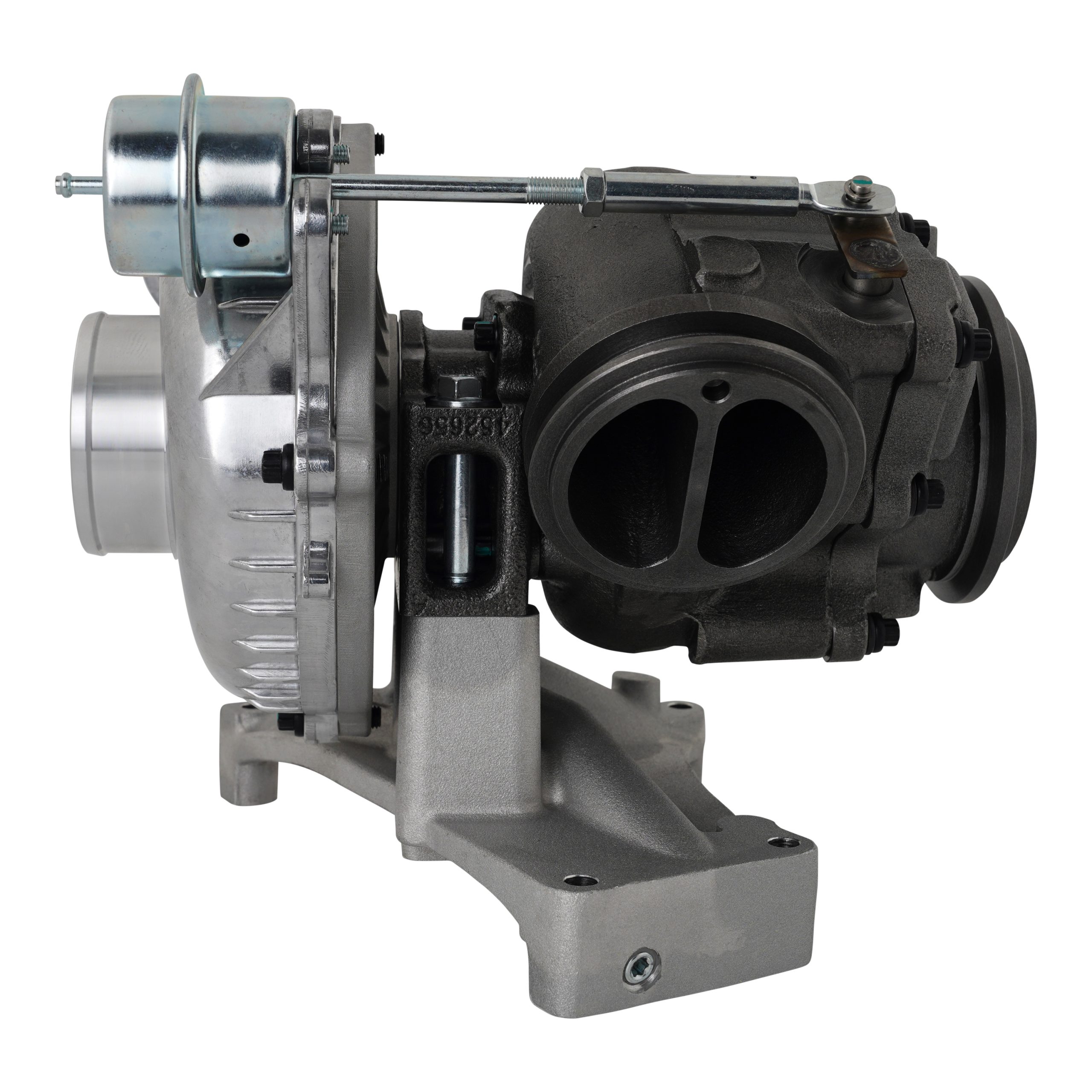

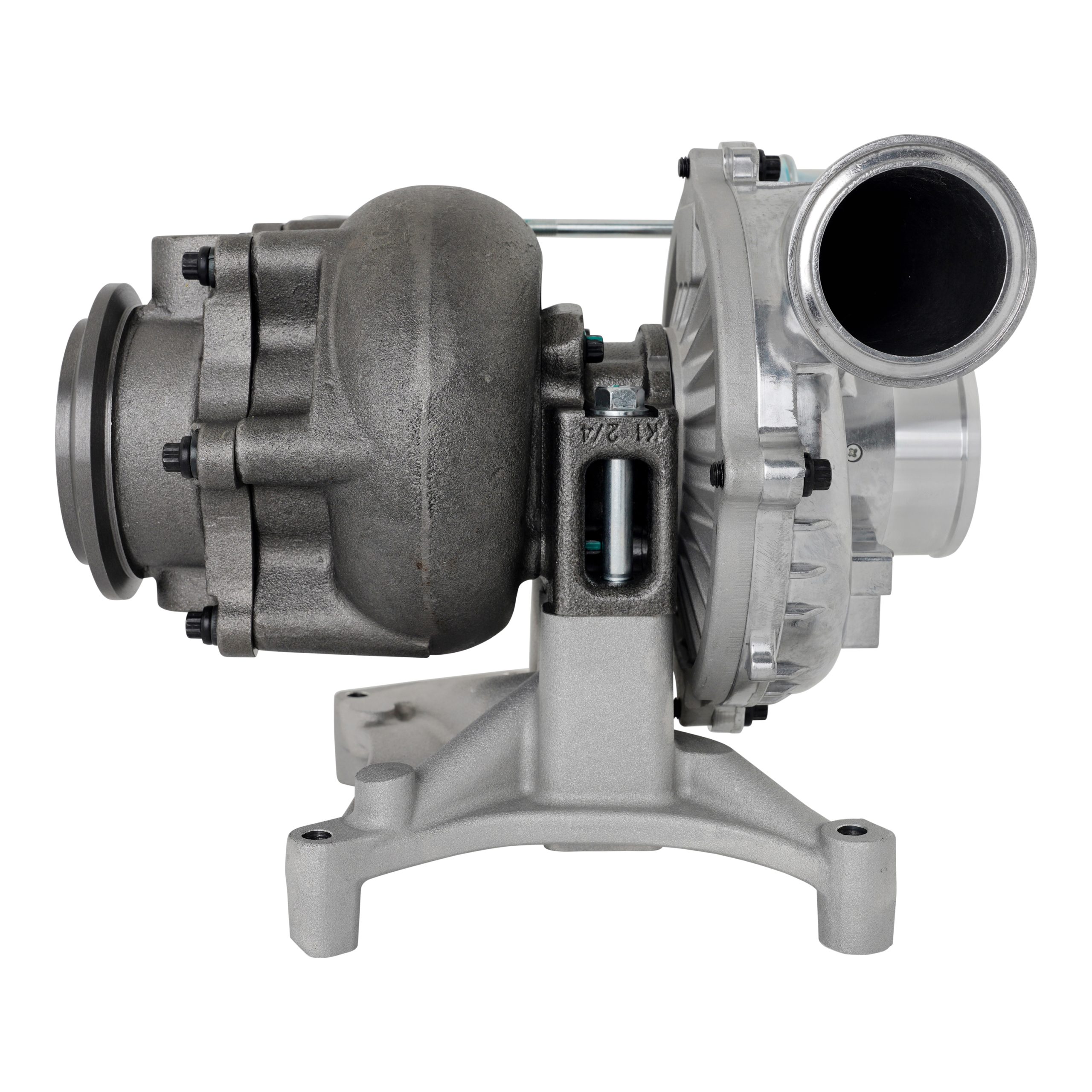

5+5 Billet Compressor Wheel — SPOOLOGIC SL-220-002

The SL-100-005 upgrades the factory-style cast compressor wheel to the SPOOLOGIC SL-220-002 5+5 billet aluminum compressor wheel. Its extended-tip design increases airflow capability while maintaining the quick, responsive characteristics that make the Stock Plus configuration well suited for daily driving, towing, work trucks, and mildly upgraded 7.3L Powerstroke applications.

• Inducer: 60mm
• Exducer: 80mm
• Extended-Tip Diameter: 84mm
• Blade Design: 5+5 — five main blades, five splitter blades
• Material: Billet aluminum

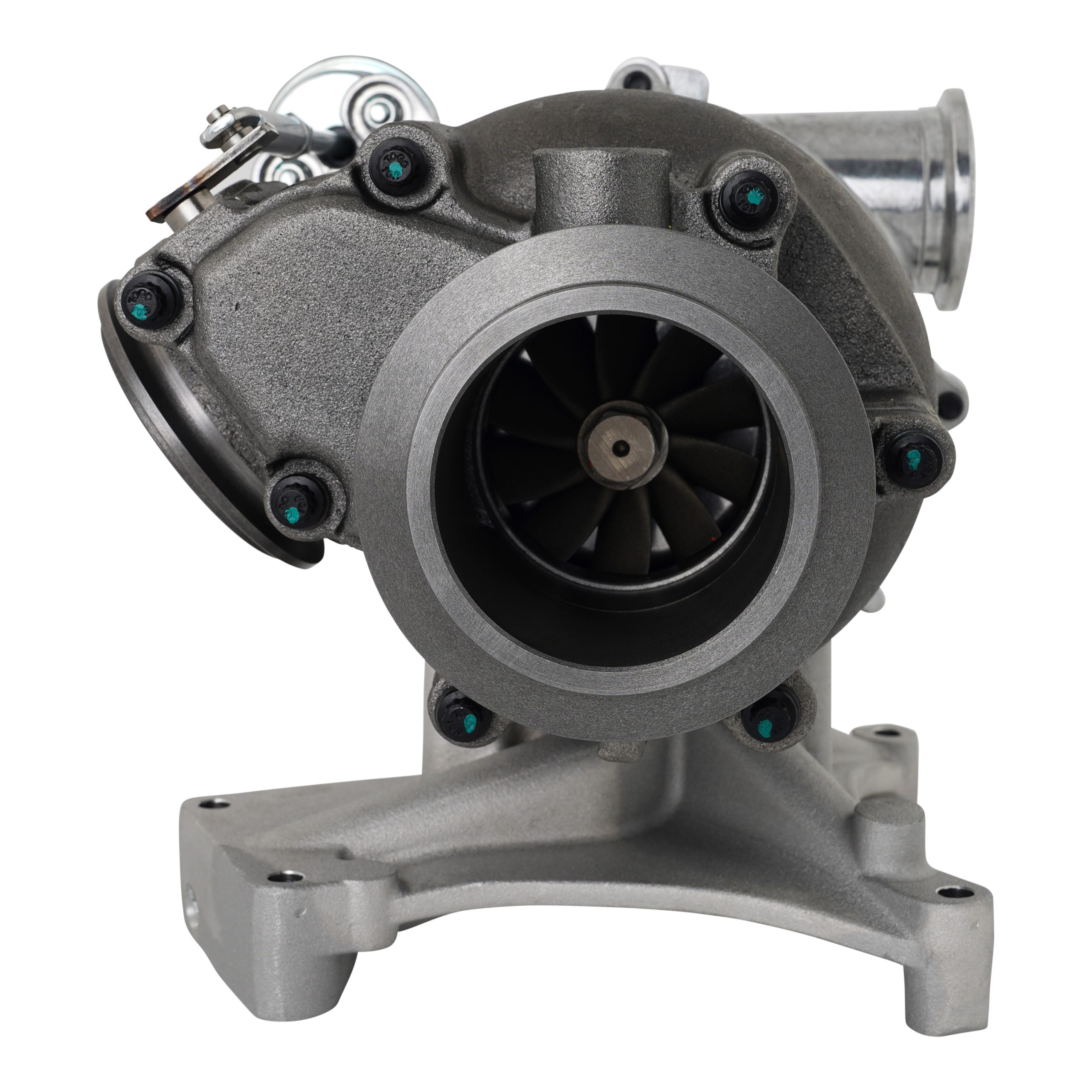

Turbine Wheel & Internal Wastegate

The factory-style GTP38 turbine wheel and internally wastegated turbine housing are matched to the upgraded billet compressor wheel for balanced Stock Plus operation. The turbine side retains the familiar fixed-geometry, internally wastegated GTP38 configuration while supporting the additional airflow of the billet compressor wheel.

• Housing: Factory-style internally wastegated GTP38 housing
• Configuration: Fixed-geometry, internally wastegated design
• Turbine Wheel: Factory-style configuration
• Application: Matched to the 60/80/84mm billet compressor wheel

Non-EBPV Pedestal & Outlet Configuration

The SL-100-005 includes a SPOOLOGIC Non-EBPV turbo pedestal and Non-EBPV turbo outlet plate in place of the factory exhaust back-pressure valve components. Removing the EBPV flap from the exhaust path reduces restriction and eliminates the EBPV valve assembly as a common leak and service point. A SPOOLOGIC EBPV terminator is also included for the factory electrical connection after the valve assembly is removed.

Upgraded Internals — Standard

Every SPOOLOGIC turbocharger is assembled with updated internal components designed to improve durability, sealing, and rotating-assembly operation:

• Extreme-duty journal bearings — Bronze-alloy bearings with updated oil-groove geometry
• 360-degree thrust bearing — Increased surface area for axial-load support
• Step-gap seal rings — Improved sealing and oil control
• High-speed VSR balancing — Balanced at high speed for smooth operation

What’s Included

• 1 SPOOLOGIC Stock Plus GTP38 Performance Turbocharger — SL-100-005, Brand New, VSR Balanced
• 1 SPOOLOGIC Non-EBPV Turbo Pedestal — SL-340-005
• 1 SPOOLOGIC Non-EBPV Turbo Outlet Plate — SL-370-004
• 1 SPOOLOGIC EBPV Terminator — SL-610-004
• 4 Yellow Turbo Pedestal O-Rings — SL-310-001
• 1 SPOOLOGIC Turbo-To-Spyder O-Ring — SL-310-002

Features

• Brand-new, direct-fit Stock Plus GTP38 performance turbocharger
• Mild performance upgrade for street, towing, and work-truck use
• 60/80/84mm 5+5 billet aluminum compressor wheel
• Improved airflow and throttle response over stock
• Typical gains: approx. 15–20 hp / 5–10 ft-lbs over stock
• Factory-style internally wastegated GTP38 configuration
• Non-EBPV pedestal and outlet plate reduce restriction
• EBPV terminator included
• Extreme-duty bronze-alloy journal bearings
• 360-degree thrust bearing
• Step-gap seal rings
• High-speed VSR-balanced rotating assembly
• One-year limited warranty

Fits Early 1999 7.3L Powerstroke

• Early 1999 Ford F-250 / F-350 / F-450 / F-550 Super Duty — 7.3L Powerstroke
  Engine Build Date: 12/7/1998 and Before

Turbo Applications

• Stock Plus performance upgrade for the factory Garrett GTP38 turbocharger in Early 1999 7.3L Powerstroke applications

Replaces Factory OEM Turbocharger Part Numbers

• Garrett: 702650-5005
• Ford: F81Z-6K682-AA / F81Z6K682AA
• Ford: F81Z-6K682-AARM / F81Z6K682AARM
• Motorcraft: TC-3-RM / TC3RM

? Not For Sale In California

Emissions Notice: Not CARB approved. Not legal for sale or use in the state of California.

1-Year Limited Warranty

Every SPOOLOGIC turbocharger is covered by a 1-Year Limited Warranty against defects in materials and workmanship from the date of purchase. Warranty coverage requires that the unit first be shipped back to SPOOLOGIC for inspection. If SPOOLOGIC determines the failure was caused by a defect in materials or workmanship, the turbocharger will be repaired or replaced at SPOOLOGIC’s discretion. Warranty does not cover damage from foreign object debris, oil starvation, contaminated oil, extended oil change intervals, over-boosting, over-fueling, operation beyond the turbocharger’s intended operating range, improper installation, use outside the listed fitment, cosmetic wear, coating discoloration, or normal heat cycling marks. Warranty does not cover labor, shipping, towing, downtime, or any other costs outside the turbocharger itself.
