SPOOLOGIC Stock Turbocharger

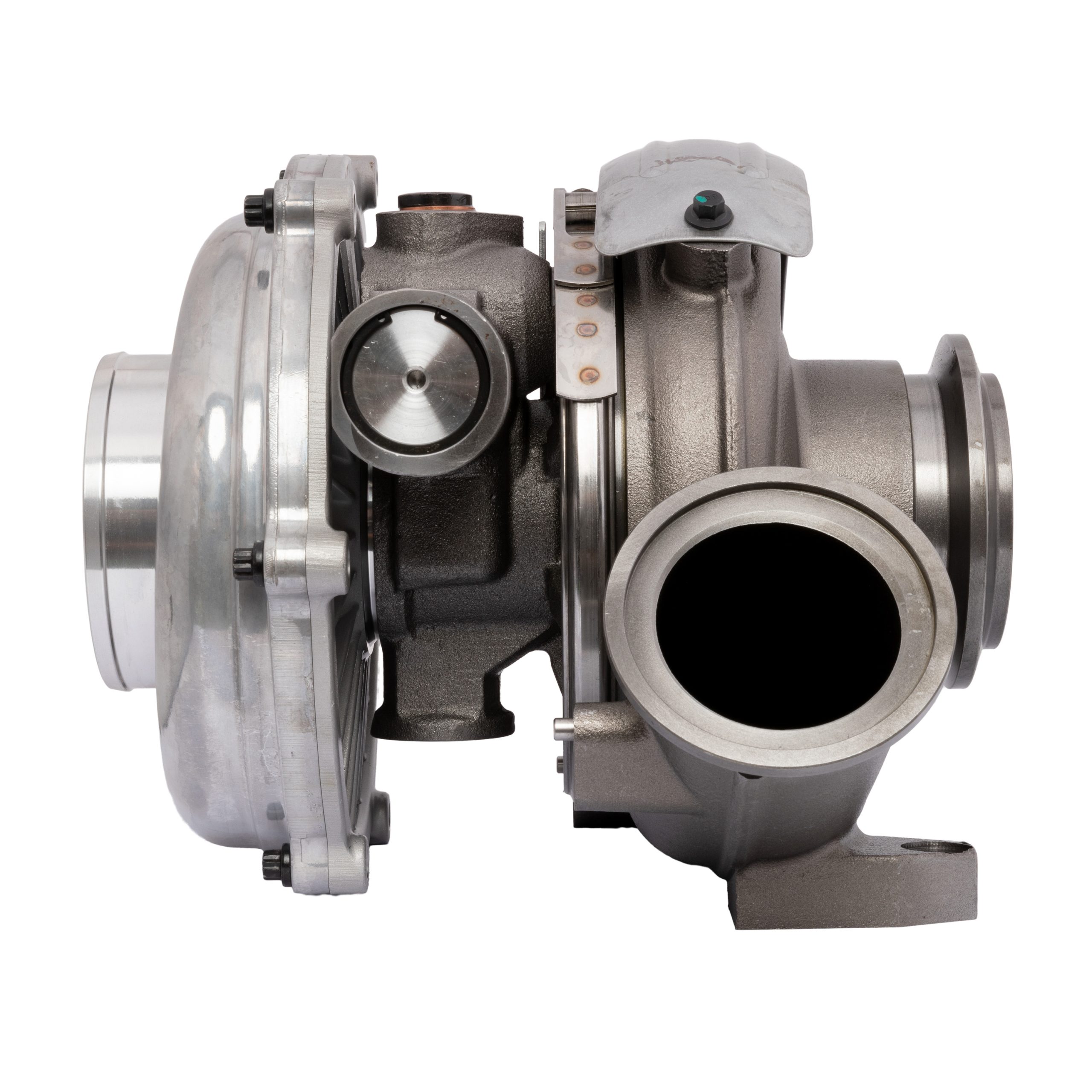

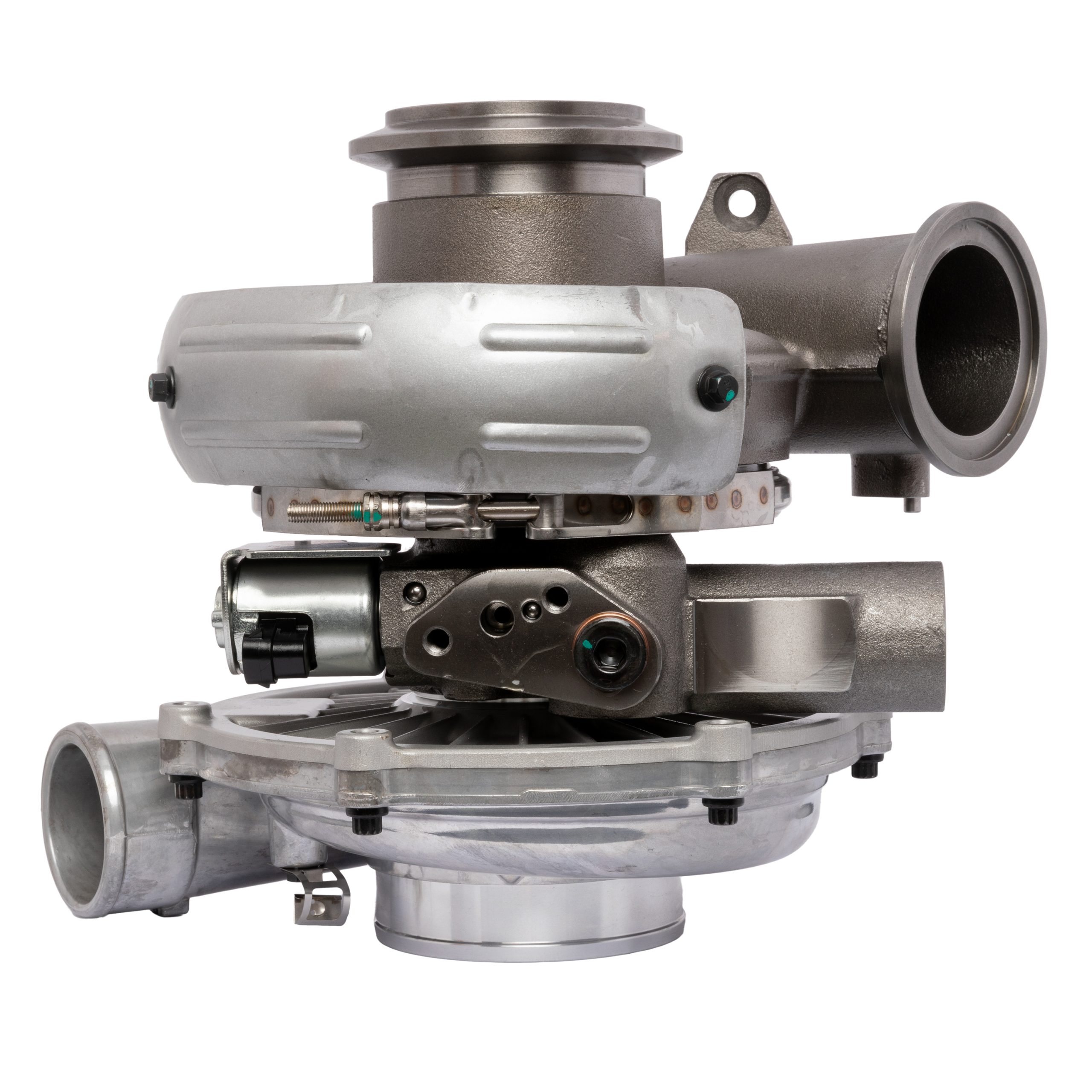

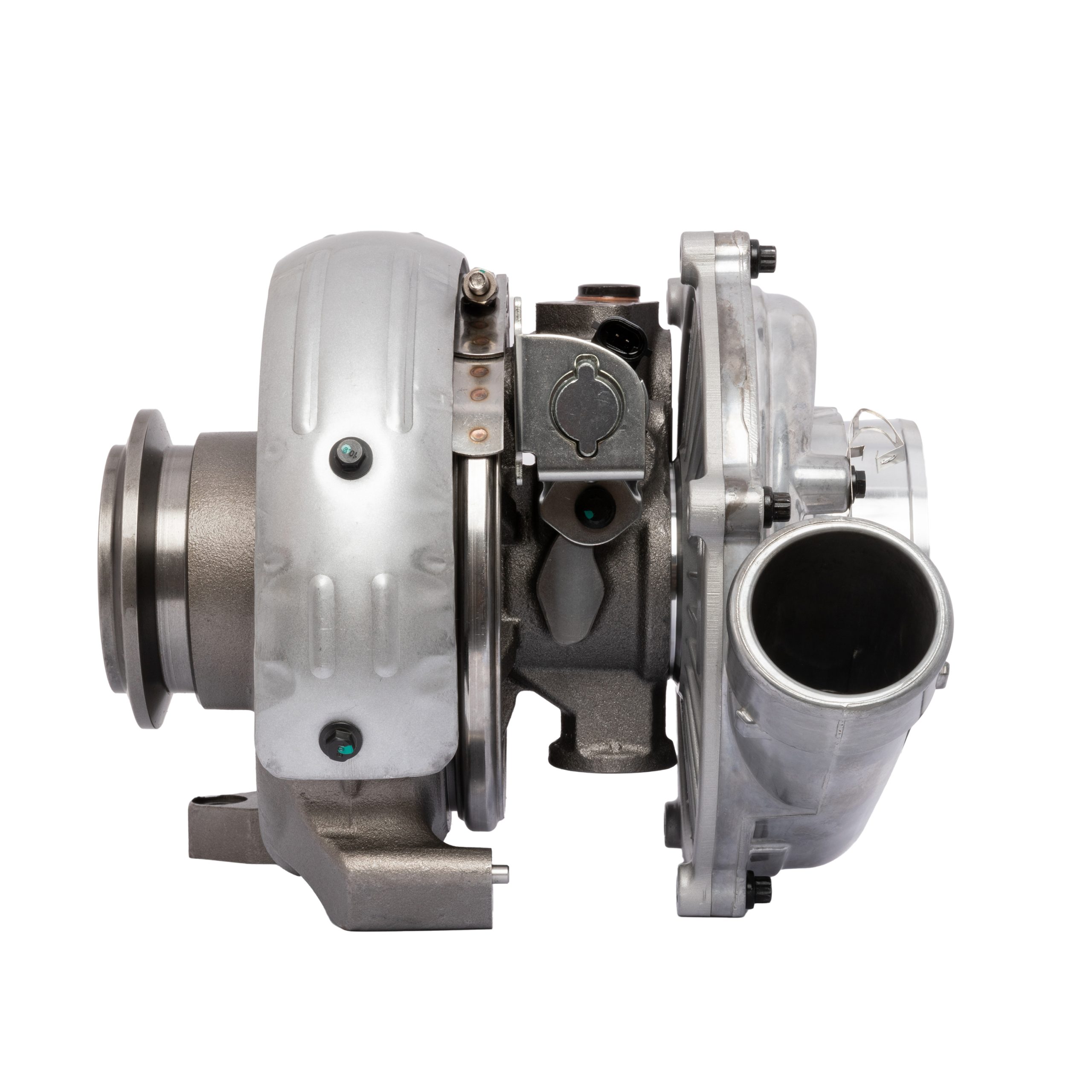

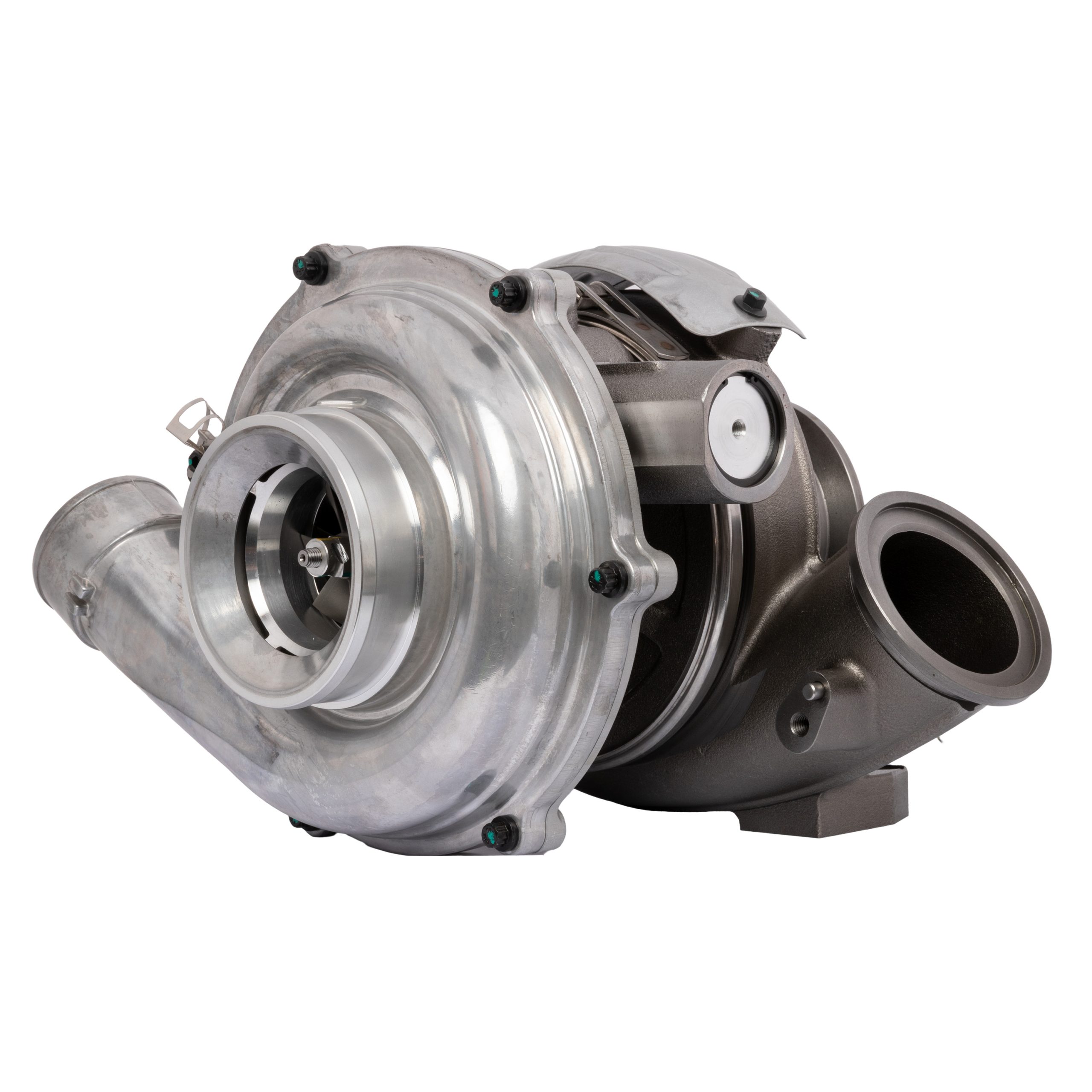

The SPOOLOGIC SL-100-020 is a brand-new, direct-fit drop-in GT3782VA stock replacement turbocharger for 2003 Ford F-250 F-350 F-450 F-550 Super Duty trucks and 2003 Ford Excursion models equipped with the 6.0L Powerstroke. Designed to replace a worn, leaking, or failed factory turbocharger without changing the character of the vehicle, it maintains factory-style performance, throttle response, airflow, drivability, electro-hydraulic VGT operation, and the distinctive 2003 turbine sound. The SL-100-020 combines the factory-style 59/82 mm 7+7 cast compressor wheel, 2003-specification 10-blade turbine shaft, nine 15 mm VGT vanes, completely new variable-geometry components, and upgraded SPOOLOGIC internals without requiring a remanufactured core or core charge.

Features

• Brand new, no core charge
• GT3782VA stock replacement
• Direct drop-in fit using factory connections.
• 7+7 cast aluminum compressor wheel
• Journal bearings, 360-degree thrust bearing, and step-gap seals
• New VGT solenoid, unison ring, and vanes
• Nine 15 mm VGT vanes
• High-speed VSR balancing

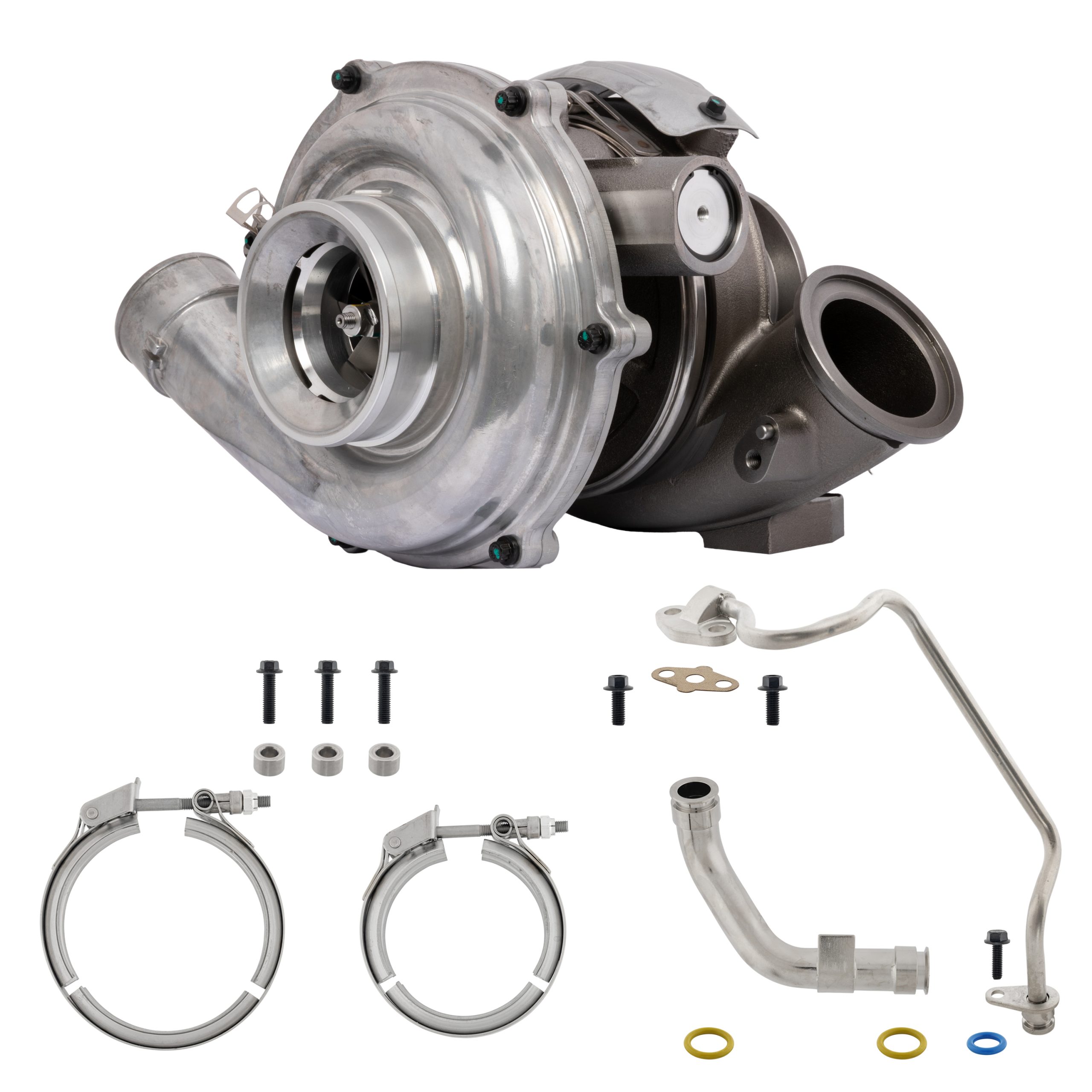

What's Included

• 1 SPOOLOGIC Turbocharger — SL-100-020
• 1 SPOOLOGIC VGT Control Solenoid — SL-270-006
• 1 SPOOLOGIC Oil Feed and Drain Line Set — SL-350-001
• 1 SPOOLOGIC Turbocharger Installation Kit — SL-310-011
• 1 SPOOLOGIC Up-Pipe-to-Turbo V-Band Clamp — SL-330-005
• 1 SPOOLOGIC Turbo-to-Downpipe V-Band Clamp — SL-330-009
• 1 SPOOLOGIC Turbo Heat Shield — SL-390-001

⚠️ Some early 2003 engines need an updated oil filter base for the supplied oil feed line. Base not included.

Fitment

• 2003 Ford F-250 F-350 F-450 F-550 6.0L Powerstroke
• 2003 Ford Excursion 6.0L Powerstroke

For upgrades using the 2003 mounting configuration, compare the Stock Plus SL-100-023 and Stage 1 SL-100-027. Our 2003–2007 6.0L turbo buyer’s guide explains mounting identification and the differences between the performance levels.

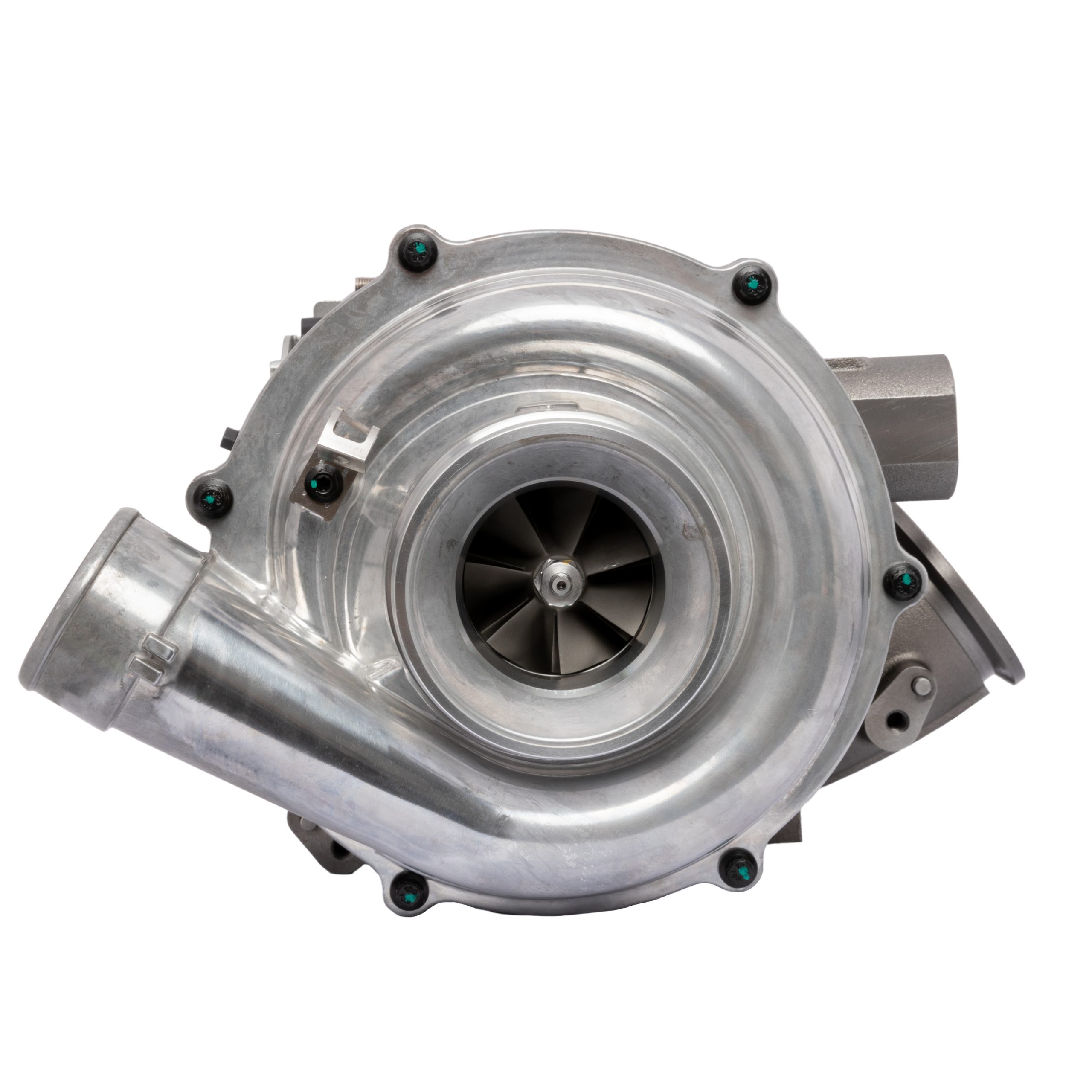

Compressor Wheel

Compressor wheel: SL-220-010

• Inducer Diameter: 59 mm
• Exducer Diameter: 82 mm
• Blade Design: 7+7 — seven full-length main blades and seven splitter blades
• Material: Cast aluminum

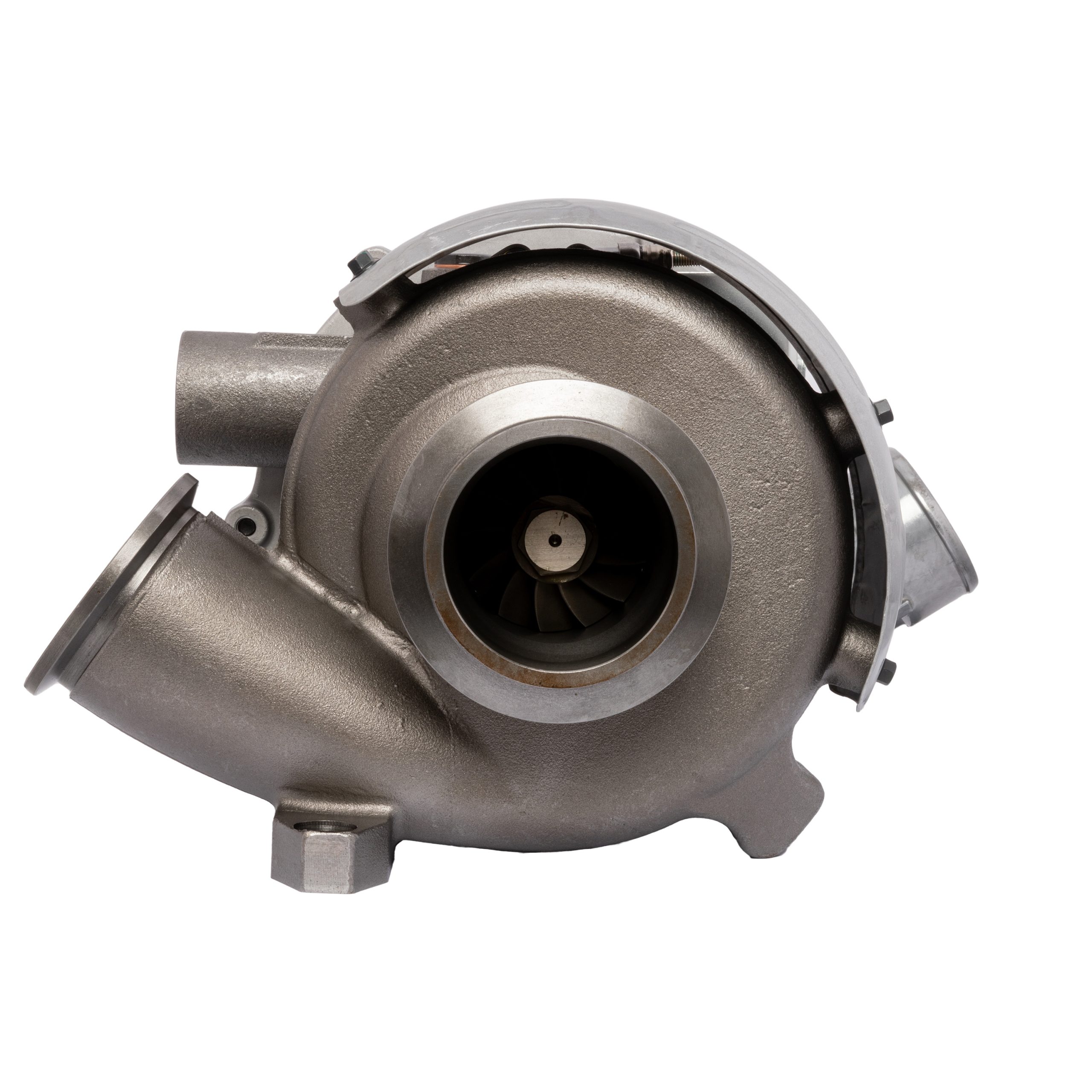

Turbine Shaft

Turbine shaft: SL-240-003

• Turbine Inducer Diameter: 72.5 mm
• Turbine Exducer Diameter: 66.4 mm
• Turbine Blade Count: 10

• Turbine wheel material: High-nickel Inconel

Bearings, Seals, and Balancing

Updated bearings and seals improve durability, sealing, and shaft operation:

• Extreme-duty journal bearings — Bronze alloy with updated oil grooves
• 360-degree thrust bearing — Greater bearing area than 270-degree designs
• Step-gap seal rings — Improved sealing and oil control
• High-speed VSR balancing — Smooth, consistent operation

VGT Control System

The VGT system uses engine oil pressure to adjust the turbine vanes, supporting low-speed response and exhaust flow at higher engine speeds. Each turbo includes a new, preinstalled VGT control solenoid, unison ring, and vane assembly.

• VGT Vane Pack: Nine 15 mm vanes

OEM Cross-References

• Garrett New: 725390-5006S
• Garrett Remanufactured: 725390-9006S
• Ford: 3C3Z-6K682-CCRM / 3C3Z6K682CCRM
• Motorcraft: TC-13-RM / TC13RM

1-Year Limited Warranty

Every SPOOLOGIC turbocharger carries a one-year limited warranty against defects in materials and workmanship from the original purchase date. Coverage applies to the original purchaser with dated proof of purchase. Contact SPOOLOGIC for return authorization before shipping the turbocharger for inspection. If inspection confirms a covered defect, SPOOLOGIC will repair or replace the turbocharger at its discretion. Damage from foreign-object debris, oil starvation, contaminated or restricted oil flow, extended oil-change intervals, over-boosting, over-fueling, improper installation or tuning, operation beyond the intended range, or use outside the listed application is excluded, along with cosmetic wear, coating discoloration, and normal heat-cycling marks. Customers are responsible for shipping both to SPOOLOGIC and back, whether the claim is approved or denied. Labor, diagnostics, removal, reinstallation, towing, downtime, and other related expenses are not covered. See the SPOOLOGIC Warranty Policy for complete terms and claim procedures.
