SPOOLOGIC Up-Pipe to Turbo V-Band Clamp

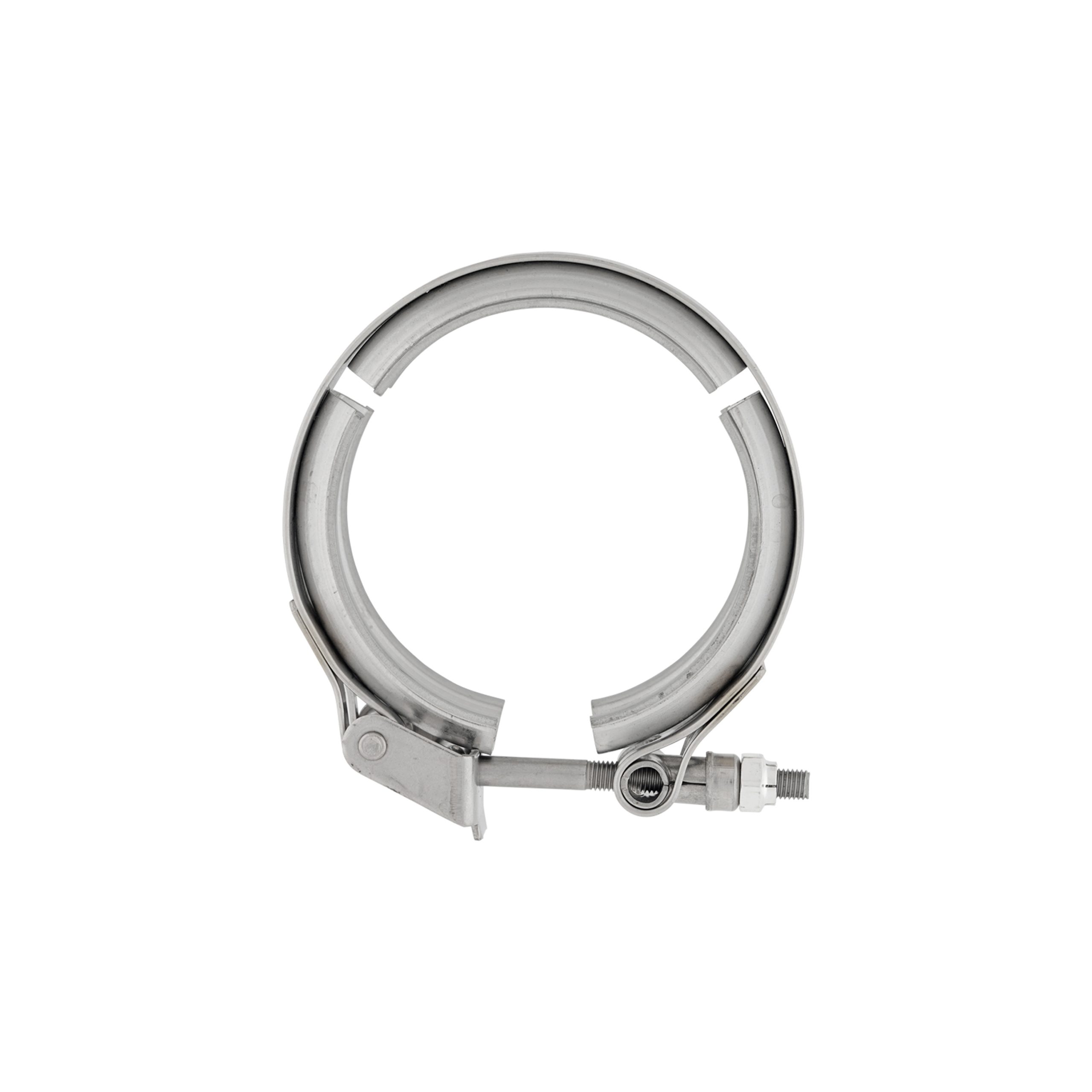

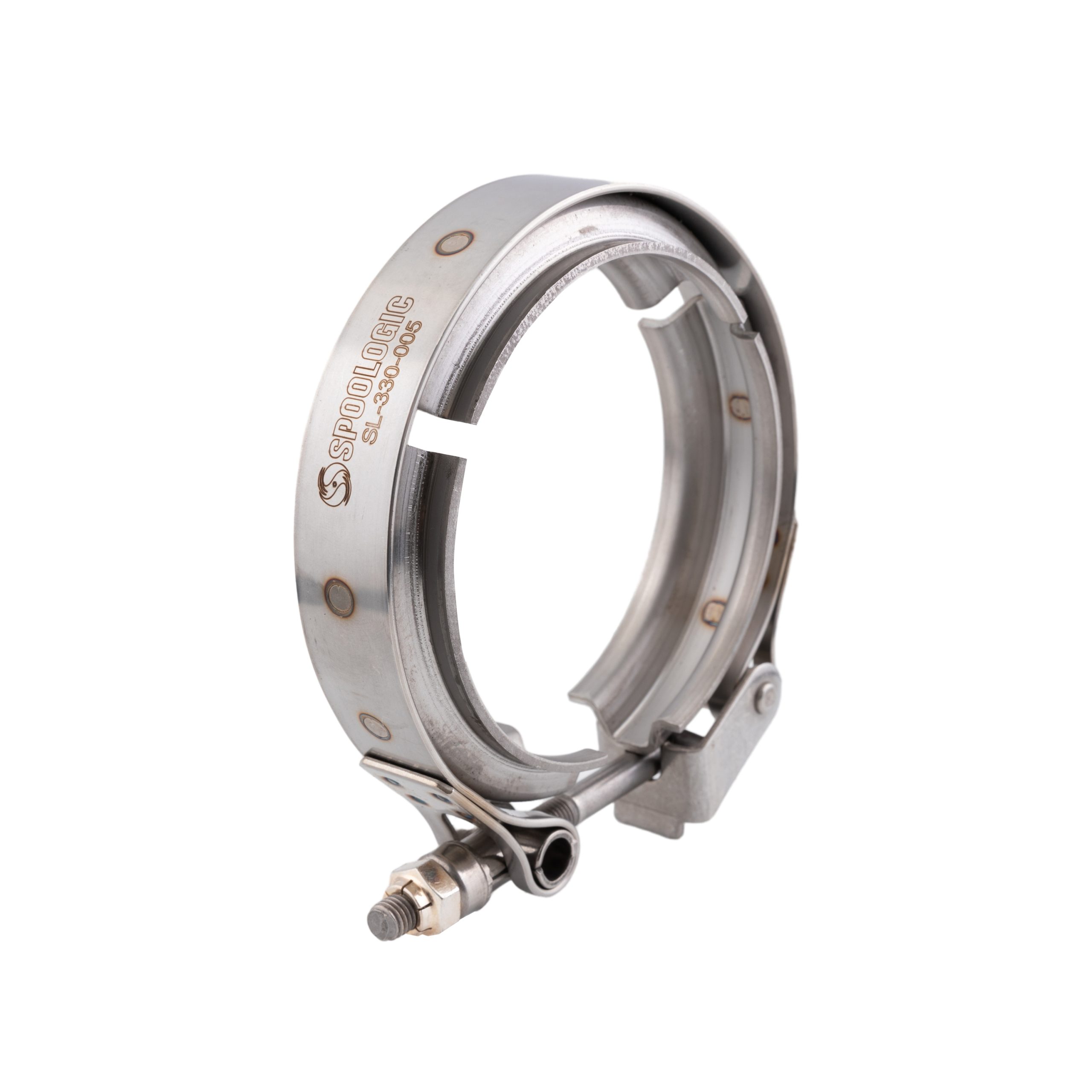

The SPOOLOGIC Pro-Series V-Band Clamp SL-330-005 secures the turbocharger up-pipe connection on the listed Ford 7.3L and 6.0L Powerstroke applications. It combines a mandrel-formed 304 stainless steel band, floating V-segments, a heavy-gauge stainless T-bolt, a flanged stainless lock nut, and a Pro-Series stainless quick-release latch.

Features

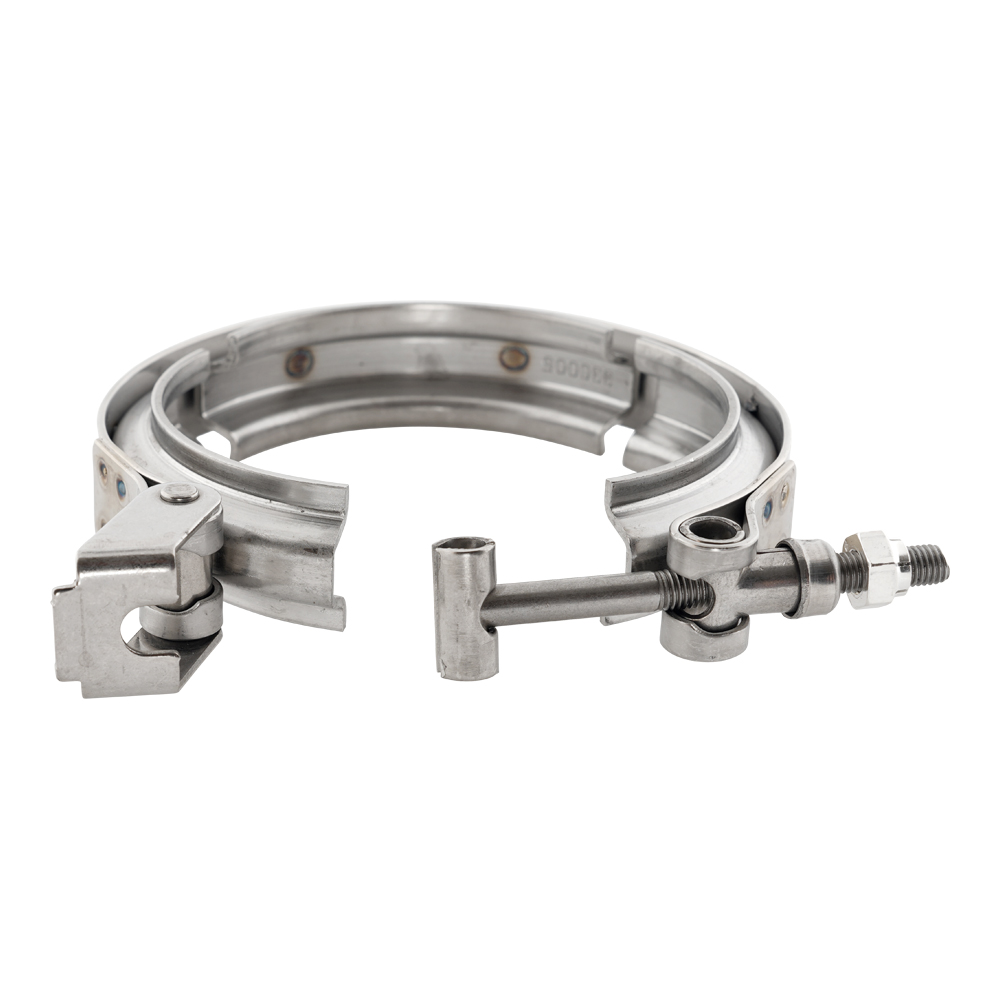

• Pro-Series stainless T-bolt latch with quick-release action
• Mandrel-formed 304 stainless steel band
• Floating V-segments for even clamping force
• Heavy-gauge stainless T-bolt and flanged stainless lock nut
• Application-specific turbo up-pipe connection
• Lifetime SPOOLOGIC warranty

Turbo Up-Pipe Connection

The V-band clamp holds the mating exhaust flanges together at the turbocharger inlet. Inspect the clamp, latch, fastener, and mating flanges when servicing an exhaust leak or removing the turbocharger. Soot or exhaust noise at the joint can also result from damaged or misaligned flanges; inspect the complete connection before replacing parts.

⚠️ Installation Notes

Confirm the flange profile and application before installation, especially with aftermarket turbos or up-pipes. Align and seat the mating flanges and clamp correctly, and follow the applicable service procedure and tightening specification.

What's Included

• 1 SPOOLOGIC Pro-Series Turbo Up-Pipe V-Band Clamp — SL-330-005

Fitment

• 1999–2003 Ford F-250 F-350 F-450 F-550 Super Duty — 7.3L Powerstroke
• 2003–2007 Ford F-250 F-350 F-450 F-550 Super Duty — 6.0L Powerstroke
• 1998–2003 Ford E-350 E-450 Econoline — 7.3L Powerstroke
• 2002–2003 Ford E-550 Econoline — 7.3L Powerstroke
• 2004–2010 Ford E-350 E-450 Econoline — 6.0L Powerstroke
• 2000–2003 Ford Excursion — 7.3L Powerstroke
• 2003–2005 Ford Excursion — 6.0L Powerstroke

Turbo Applications

• Garrett GTP38 — factory 7.3L Powerstroke configuration in the listed applications
• Garrett GTP38R — compatible 7.3L Powerstroke performance replacement retaining the matching inlet connection
• Garrett GT3782VA — factory 6.0L Powerstroke configuration
• Garrett GT3788VA — compatible 6.0L Powerstroke performance replacement retaining the matching inlet connection

OEM and Aftermarket Cross-References

• Ford: F81Z-8287-EA / F81Z8287EA
• Aeroquip / Murray: YF-2562 / YF2562

Lifetime SPOOLOGIC Warranty

The SPOOLOGIC Pro-Series V-Band Clamp is designed to last a lifetime. Every component — the mandrel-formed 304SS band, the floating V-segments, the heavy-gauge 304 stainless T-bolt, the flanged stainless lock nut, and the Pro-Series stainless quick-release latch — is built from corrosion-resistant stainless steel with no stamped or carbon-steel failure points. If the clamp fails under normal use, SPOOLOGIC will replace it for the original purchaser — no time limit, no questions.
