SPOOLOGIC Stock Low Pressure Turbocharger

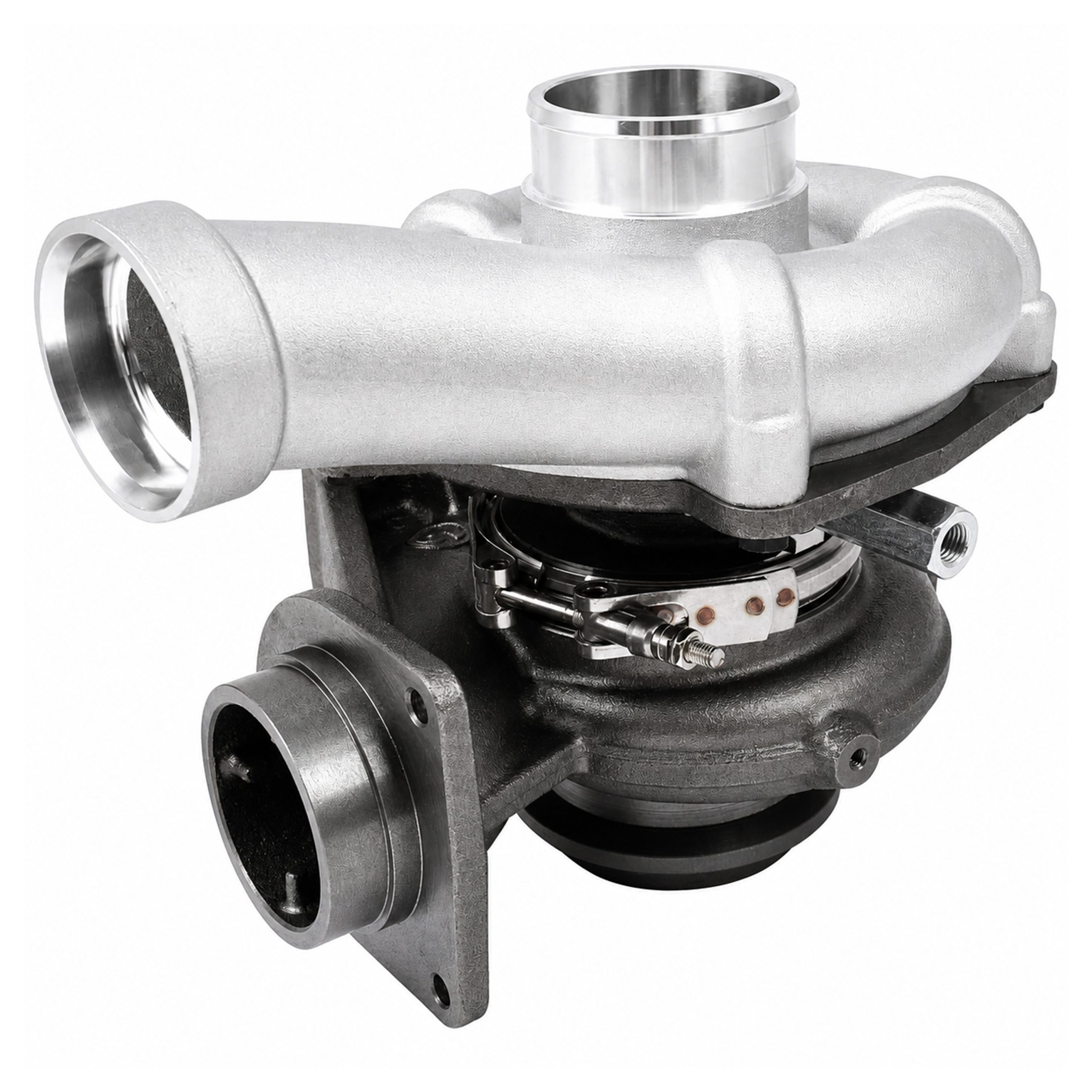

The SPOOLOGIC SL-100-031 Stock Low-Pressure Turbocharger is a brand-new, direct-fit replacement for the large rear-mounted low-pressure turbocharger in the factory V2S compound system used on 2008–2010 Ford F-250 F-350 F-450 F-550 Super Duty trucks equipped with the 6.4L Powerstroke. It retains factory-size compressor and turbine geometry to restore proper airflow, throttle response, drivability, and towing performance while working with the original high-pressure turbocharger and factory engine controls.

Features

• Brand new, no core charge
• stock low-pressure turbocharger
• Direct drop-in fit using factory connections.
• Factory-size cast aluminum compressor wheel
• 10-blade turbine wheel
• Factory-style turbine housing
• Journal bearings, 360-degree thrust bearing, and step-gap seals
• High-speed VSR balancing

What's Included

• 1 SPOOLOGIC Low-Pressure Turbocharger — SL-100-031

Low-pressure turbo only. High-pressure turbo sold separately.

Installation gaskets are not included. SPOOLOGIC Turbo Installation Gasket Kit — SL-310-013 is sold separately.

Fitment

• 2008-2010 Ford F-250 F-350 F-450 F-550 6.4L Powerstroke

Compound Turbo System

The factory compound system uses two turbochargers in sequence. Intake air passes through the larger low-pressure compressor, then the smaller high-pressure compressor before reaching the intercooler. Exhaust drives the high-pressure VGT turbine first, then the low-pressure turbine.

The corresponding stock high-pressure turbo is SL-100-032. For a billet-compressor low-pressure upgrade, compare the Stock Plus SL-100-033. To replace both stages with a full installation gasket kit, see the Stock compound set SL-100-035.

Compressor Wheel

• Compressor Inducer: 64.5 mm
• Compressor Exducer: 88 mm
• Material: Cast aluminum
• Compressor blade design: 7+7

Turbine Shaft

Turbine shaft: SL-240-007

• Turbine Inducer: 79.6 mm
• Turbine Exducer: 73.2 mm
• Blade Count: 10
• Turbine wheel material: High-nickel Inconel

Bearings, Seals, and Balancing

This SPOOLOGIC turbocharger is assembled with upgraded internal components designed to improve shaft support, sealing, and rotating-assembly stability.

• Extreme-duty journal bearings
• 360-degree thrust bearing
• Step-gap seal rings
• High-speed VSR balancing

OEM Cross-References

Low-Pressure Turbocharger References

• BorgWarner: 177100 / 179523 / 477100 / 479523
• Ford: 8C3Z-6K682-A / 8C3Z6K682A
• Ford: 8C3Z-6K682-AA / 8C3Z6K682AA
• Ford: 8C3Z-6K682-AARM / 8C3Z6K682AARM
• Motorcraft: TC-11-RM / TC11RM

1-Year Limited Warranty

Every SPOOLOGIC turbocharger carries a one-year limited warranty against defects in materials and workmanship from the original purchase date. Coverage applies to the original purchaser with dated proof of purchase. Contact SPOOLOGIC for return authorization before shipping the turbocharger for inspection. If inspection confirms a covered defect, SPOOLOGIC will repair or replace the turbocharger at its discretion. Damage from foreign-object debris, oil starvation, contaminated or restricted oil flow, extended oil-change intervals, over-boosting, over-fueling, improper installation or tuning, operation beyond the intended range, or use outside the listed application is excluded, along with cosmetic wear, coating discoloration, and normal heat-cycling marks. Customers are responsible for shipping both to SPOOLOGIC and back, whether the claim is approved or denied. Labor, diagnostics, removal, reinstallation, towing, downtime, and other related expenses are not covered. See the SPOOLOGIC Warranty Policy for complete terms and claim procedures.
