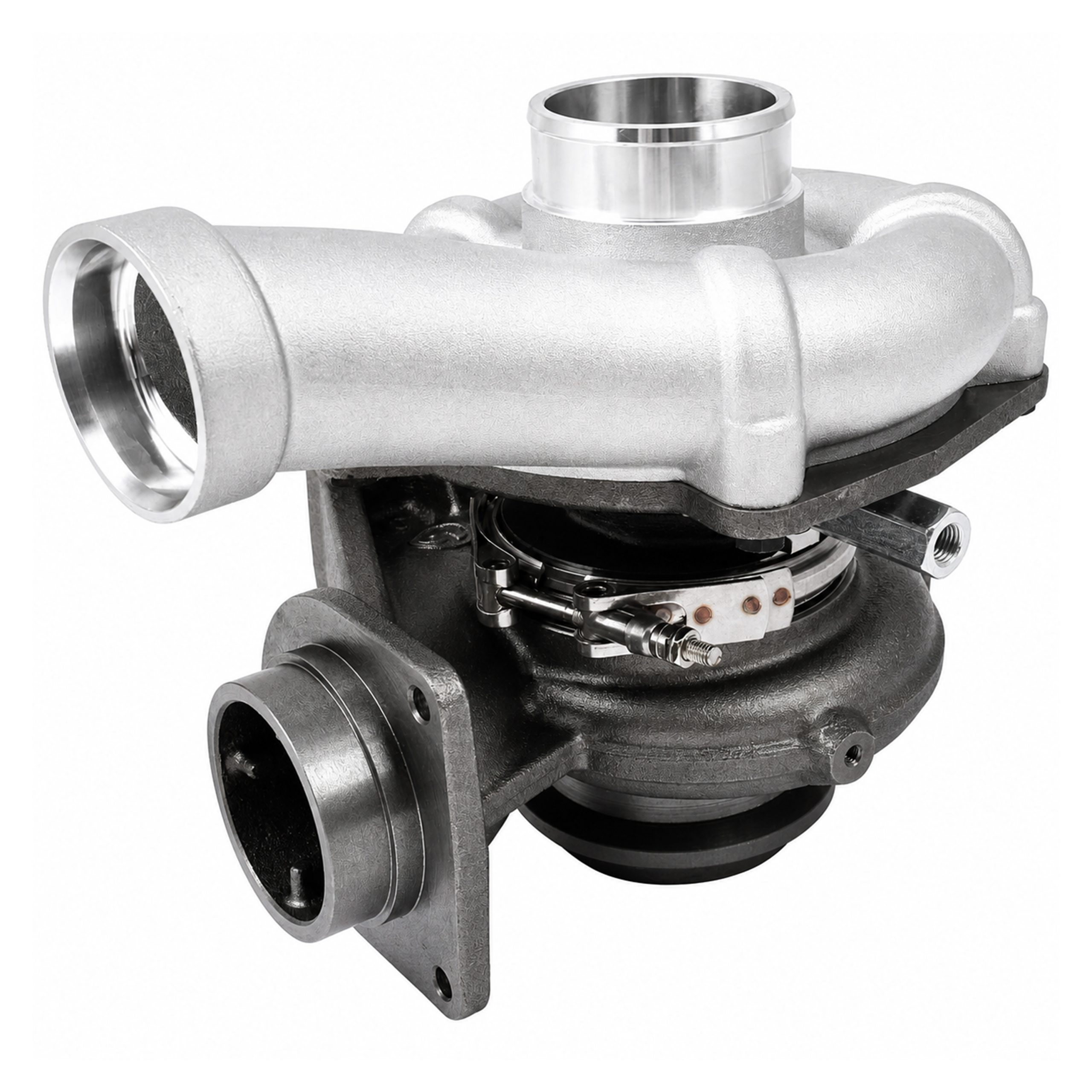

The SPOOLOGIC SL-100-033 is a brand new Stock Plus upgrade for the large rear-mounted low pressure (LP) atmospheric turbo on 2008-2010 Ford F-250, F-350, F-450, and F-550 Super Duty trucks with the 6.4L Powerstroke V2S compound twin-turbo system. Built around the SPOOLOGIC SL-220-022 7+7 billet extended-tip compressor wheel in place of the factory cast wheel, it’s a mild performance step up from a factory or worn LP unit, in a direct bolt-in package.

When paired with a healthy factory HP turbo, expect roughly 20-30 RWHP and 10-15 lb-ft of torque over a stock or worn factory LP turbo alone. Best results come from pairing the LP upgrade with the matching Stock Plus HP SL-100-032 so both compressors are billet-upgraded. Every SPOOLOGIC turbo is built brand new — never remanufactured — and backed by a 1-Year Limited Warranty.

6.4L V2S Compound Twin-Turbo System — How It Works

The 6.4L Powerstroke runs a sequential V2S compound twin-turbo system — the most complex factory turbo setup Ford ever put on a diesel. A small front-mounted high pressure (HP) variable-geometry turbo spools first for off-idle response, feeding compressed air into the inlet of this larger rear-mounted low pressure (LP) atmospheric turbo — the unit this SKU upgrades — as boost builds. At higher RPM and load, the HP turbine backs off and the LP turbo takes over the bulk of the airflow duty. A billet LP compressor moves more of that air without touching the HP side.

SL-220-022 7+7 Billet Compressor Wheel

The SL-100-033 is built with the SPOOLOGIC SL-220-022 7+7 billet extended-tip compressor wheel and the SL-240-007 low pressure turbine shaft. The 5-axis CNC-machined forged billet aluminum wheel keeps the proven 7+7 OE base geometry with 96mm extended exducer tips for measurably better airflow, quicker spool, and cooler EGTs on the atmospheric side — without changing the bolt pattern, housings, or plumbing.

• Inducer: 64.5mm
• Exducer: 88mm base / 96mm extended-tip outer diameter
• Blade configuration: 7 major + 7 splitter blades
• Material: 5-axis CNC-machined forged billet aluminum
• Balance: High-speed VSR balanced as part of the complete CHRA assembly

Turbine Wheel

Factory-spec 10-blade turbine wheel in a wastegated housing, matched to the upgraded billet compressor for clean spool and proper drive pressure on the atmospheric side of the compound system.

• Turbine blade count: 10
• Housing: wastegated, matched to billet compressor

Upgraded Internals — Standard

Every SPOOLOGIC turbo is assembled with upgraded internal components that go beyond a basic factory-style replacement:

• Extreme duty journal bearings — premium bronze-alloy bearings machined to tighter tolerances with improved oil groove geometry, maintaining the precise oil film that keeps the turbo shaft centered at 100,000+ RPM — even under higher heat and shaft loads
• 360-degree thrust bearing — added strength and load capacity over the factory 270-degree bearing, better at handling boost-driven thrust loads
• Step gap seal rings — improved sealing performance, less blow-by past the CHRA
• High-speed VSR balancing — smooth, dependable operation and longer bearing life

What’s Included

• 1 SPOOLOGIC Stock Plus Low Pressure turbocharger — brand new, VSR balanced, billet wheel

Features

• Direct drop-in fit for 2008-2010 6.4L Powerstroke Super Duty trucks — low pressure position only
• SPOOLOGIC SL-220-022 7+7 billet compressor wheel — 64.5/88/96mm extended-tip, 5-axis CNC-machined forged billet aluminum
• SPOOLOGIC SL-240-007 low pressure turbine shaft
• Approximately 20-30 RWHP and 10-15 lb-ft over stock LP when paired with a healthy factory or upgraded HP turbo
• Extreme duty journal bearings, 360-degree thrust bearing, step gap seal rings, VSR balanced
• No core charge — ever
• Brand new, backed by a 1-Year Limited Warranty

Fits 2008-2010 6.4L Powerstroke

• 2008 – 2010 Ford F-250 / F-350 / F-450 / F-550 Super Duty 6.4L Powerstroke

Turbo Applications

• Low pressure (rear, atmospheric) side of the 6.4L V2S compound system only — billet upgrade, pairs with a factory or SPOOLOGIC high pressure VGT (SL-100-034 stock or SL-100-032 stock plus)
• Replaces factory V2S low pressure turbo, 2008-2010 6.4L Powerstroke — Stock Plus billet upgrade

Replaces Factory OEM Part Numbers

• 177100
• 479514
• 479523
• 8C3Z-6K682-A / 8C3Z6K682A
• 8C3Z-6K682-AARM / 8C3Z6K682AARM
• 8C3Z-6K682-ERM / 8C3Z6K682ERM
• TC-11-RM / TC11RM

⚠ Not For Sale In California

Emissions Notice: Not CARB approved. Not legal for sale or use in the state of California.

1-Year Limited Warranty

Every SPOOLOGIC turbocharger is covered by a 1-Year Limited Warranty against defects in materials and workmanship from the date of purchase. Warranty coverage requires that the unit first be shipped back to SPOOLOGIC for inspection. If SPOOLOGIC determines the failure was caused by a defect in materials or workmanship, the turbocharger will be repaired or replaced at SPOOLOGIC’s discretion. Warranty does not cover damage from foreign object debris, oil starvation, contaminated oil, extended oil change intervals, over-boosting, over-fueling, tuning beyond the turbo’s rated operating range, improper installation, use outside the listed fitment, cosmetic wear, coating discoloration, or normal heat cycling marks. Warranty does not cover labor, shipping, towing, downtime, or any other costs outside the turbocharger itself.
