SPOOLOGIC Turbo Rebuild Kit Cast Wheels Turbine Shafts Unison Ring Actuator Rod Gaskets

The SPOOLOGIC Advanced Combo Lp + Hp Turbo Rebuild Kit SL-900-006-K16 is a bundled, complete rebuild package for 2008-2010 Ford F-250 F-350 F-450 F-550 Super Duty 6.4L Powerstroke BorgWarner V2S applications. It combines a SPOOLOGIC base rebuild kit with a new cast compressor wheel, turbine shaft, unison ring assembly, unison ring actuator rod, and a complete gasket set, so you have everything needed to restore the turbo to factory performance in one box.

Features

• 2 Cast compressor wheels LP + HP
• 2 Turbine shafts LP + HP
• Extreme duty journal bearings and spacer
• 360° thrust bearing and collars

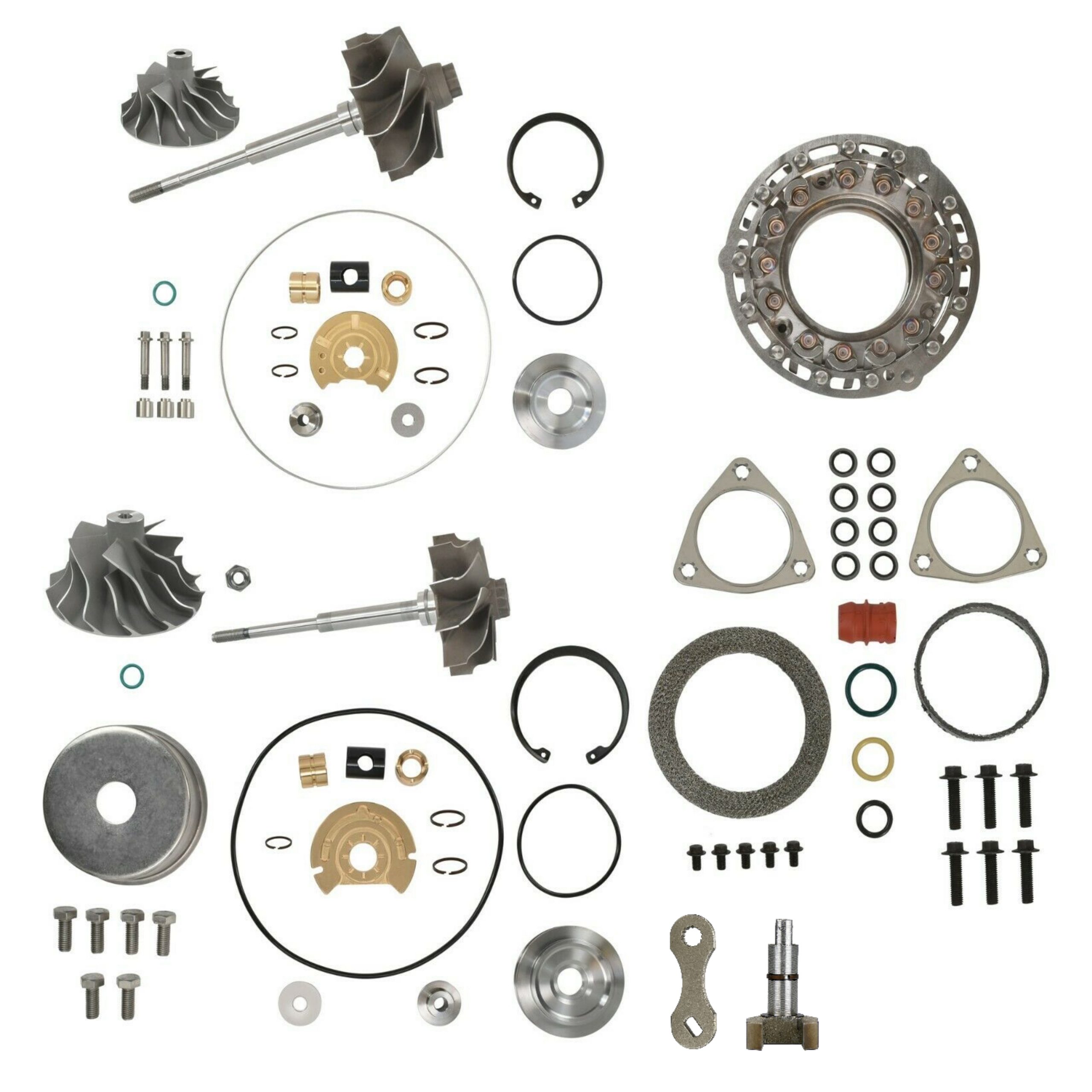

What's Included

• 1 SPOOLOGIC Low Pressure Basic Turbo Rebuild Kit — SL-210-004
• 1 SPOOLOGIC High Pressure Basic Turbo Rebuild Kit — SL-210-005
• 1 SPOOLOGIC V2S Low Pressure 7+7 Cast Compressor Wheel — SL-220-020
• 1 SPOOLOGIC V2S High Pressure 7+7 Cast Compressor Wheel — SL-220-021
• 1 SPOOLOGIC Low Pressure Turbine Shaft 10 Blade — SL-240-007
• 1 SPOOLOGIC High Pressure Turbine Shaft 11 Blade — SL-240-008
• 1 SPOOLOGIC V2S High Pressure Turbo Unison Ring Assembly — SL-270-010
• 1 SPOOLOGIC Turbo VGT Actuator Rod — SL-270-011
• 1 SPOOLOGIC Turbo Mounting Gasket Set — SL-310-013

Fitment

• 2008-2010 Ford F-250 F-350 F-450 F-550 6.4L Powerstroke

Common BorgWarner V2S Failure Symptoms

If your 6.4L Powerstroke turbo is showing any of these symptoms, a full rebuild is recommended:

• Variable vane geometry sticking or hanging — slow spool, lazy throttle response, soot buildup in the cartridge
• Excessive shaft play or oil seal leakage — blue smoke at idle, oil residue in the intercooler boots, end-play beyond OEM tolerance
• Bearing failure — whining, grinding, or whistling that scales with RPM
• Loss of boost and reduced power — turbo not building rated boost under load, derate codes, excess EGT

Advanced Rebuild Kit — Everything in One Box

This package supplies the rebuild components listed in What’s Included for the BorgWarner V2S turbocharger.

Balancing Notes

This kit contains unassembled repair components. Compressor wheels and turbine shafts are individually balanced; balancing the completed rotating assembly is recommended best practice.

⚠️ DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC turbocharger repair product is intended for experienced turbo builders and qualified technicians. Proper installation requires suitable tools, careful inspection, and correct assembly. All sales are final—no warranty, returns, or exchanges. Confirm compatibility before ordering. See the SPOOLOGIC Warranty Policy for details on products sold without a warranty.
