SPOOLOGIC Stock Plus Performance Turbocharger

SKU # : SL-100-081

Vehicle Fitment:

2003-2004 Dodge Ram 5.9L Cummins
2004 trucks built through January 4, 2004

6 Reviews

$849.95 - $899.95

Color

RawRedBlack

1

Add to Cart

Orders Placed Within 02 Hours | 56 Minutes | 00 Seconds Ships Today

• In Stock
• Calculated at checkout
• ITEM NO : 1041

California Residents: Prop 65 Warning | WARNING: Cancer and Reproductive Harm

Visit: www.p65warnings.ca.gov

Share

• Description
• Additional information

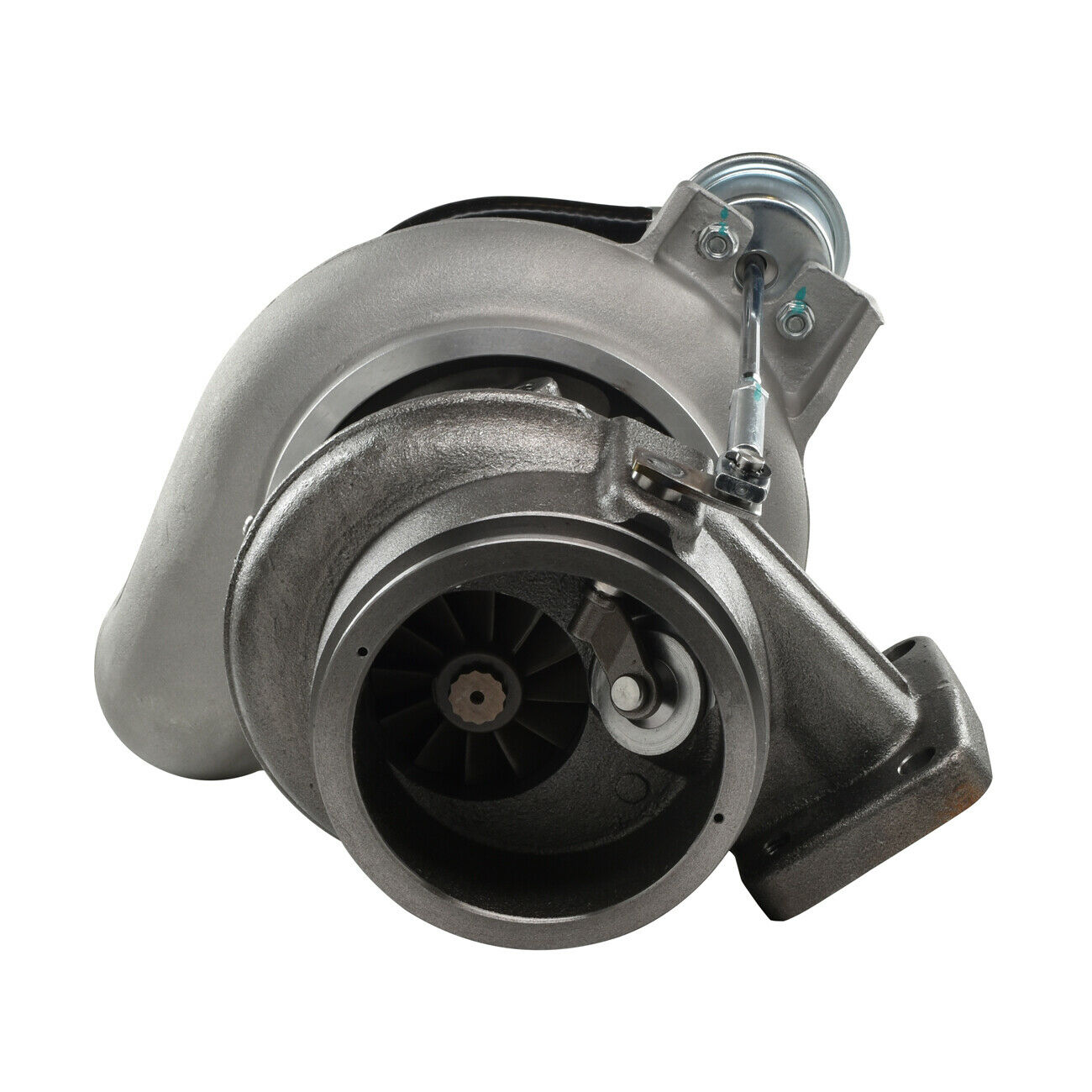

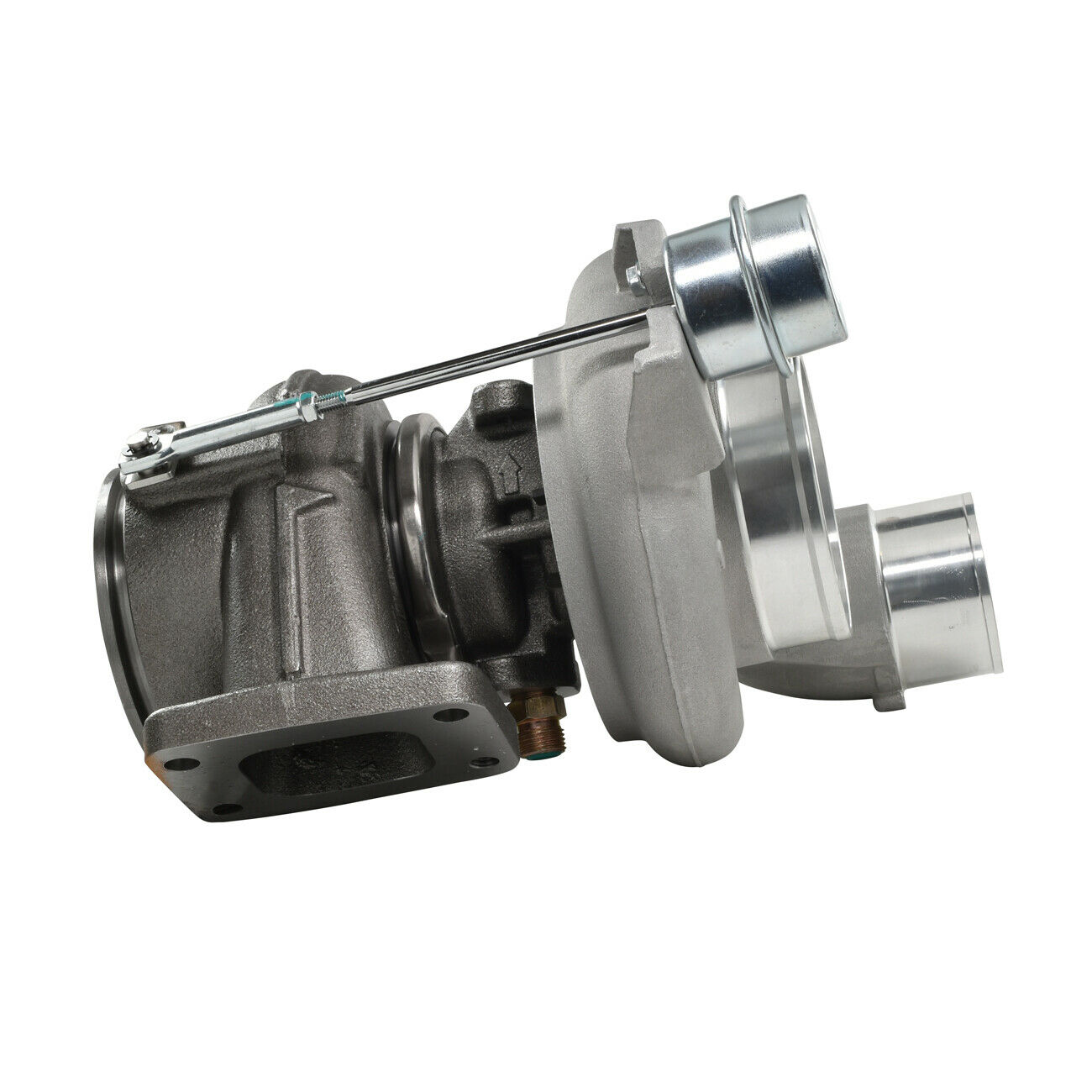

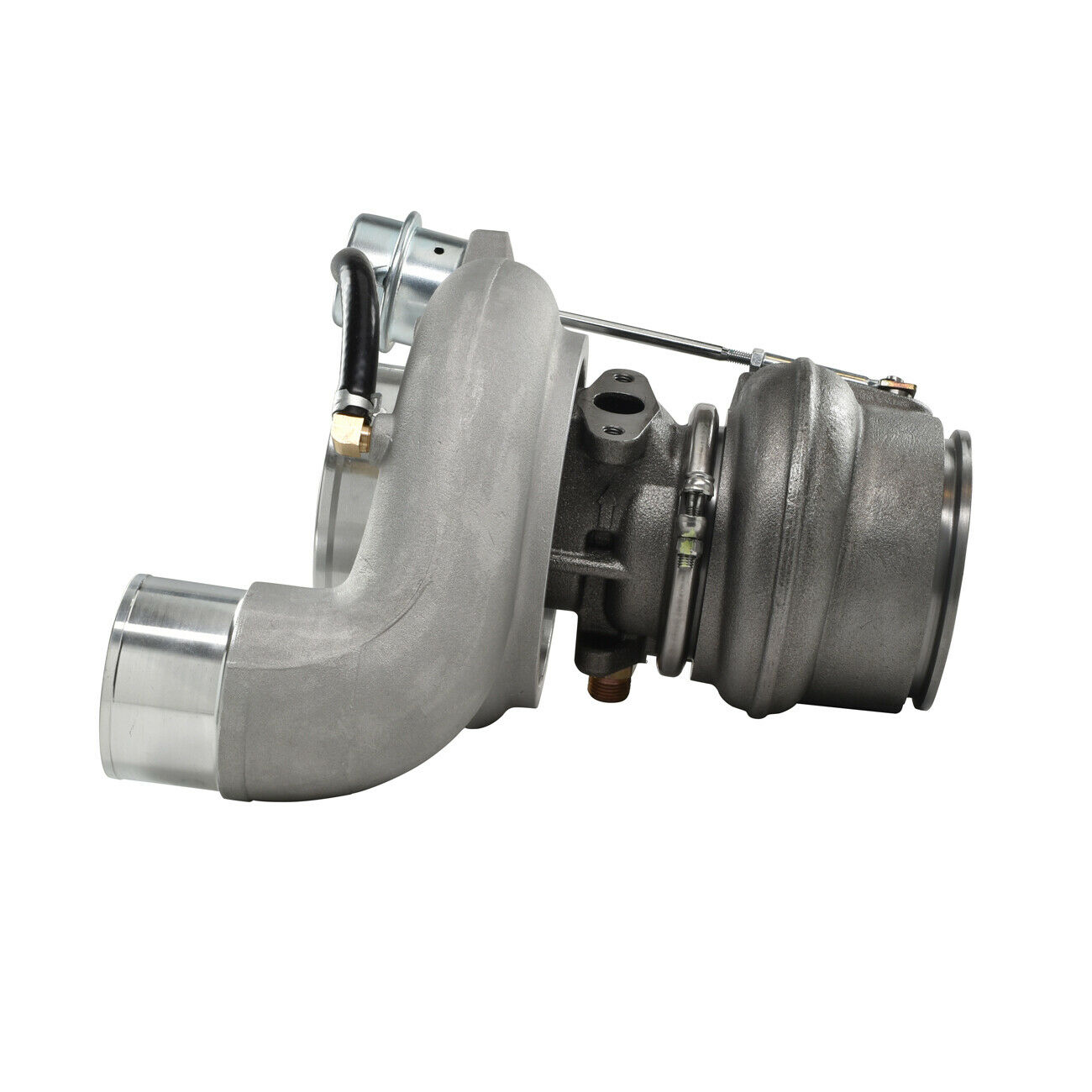

The SPOOLOGIC SL-100-081 is a brand-new, direct-fit drop-in Stock Plus performance turbocharger for 2003–2004 Dodge Ram 2500 and 3500 pickup trucks equipped with the 5.9L Cummins common rail with the early mechanical-wastegate turbo configuration. It combines a 56/86 mm billet aluminum compressor wheel with a 65/58 mm turbine, upgraded internal components, and a ceramic-coated turbine housing and center-section exterior. Designed for daily driving, towing, and work-truck use, it pairs the billet compressor upgrade with factory-calibration compatibility.

Features

• Brand new, no core charge
• Stock Plus performance turbocharger
• Direct drop-in fit using factory connections.
• 7+7 billet aluminum compressor wheel
• 12-blade turbine assembly
• Journal bearings, 360-degree thrust bearing, and step-gap seals
• Internally wastegated turbine housing
• Ceramic coating; raw, red, or black compressor housing options
• High-speed VSR balancing

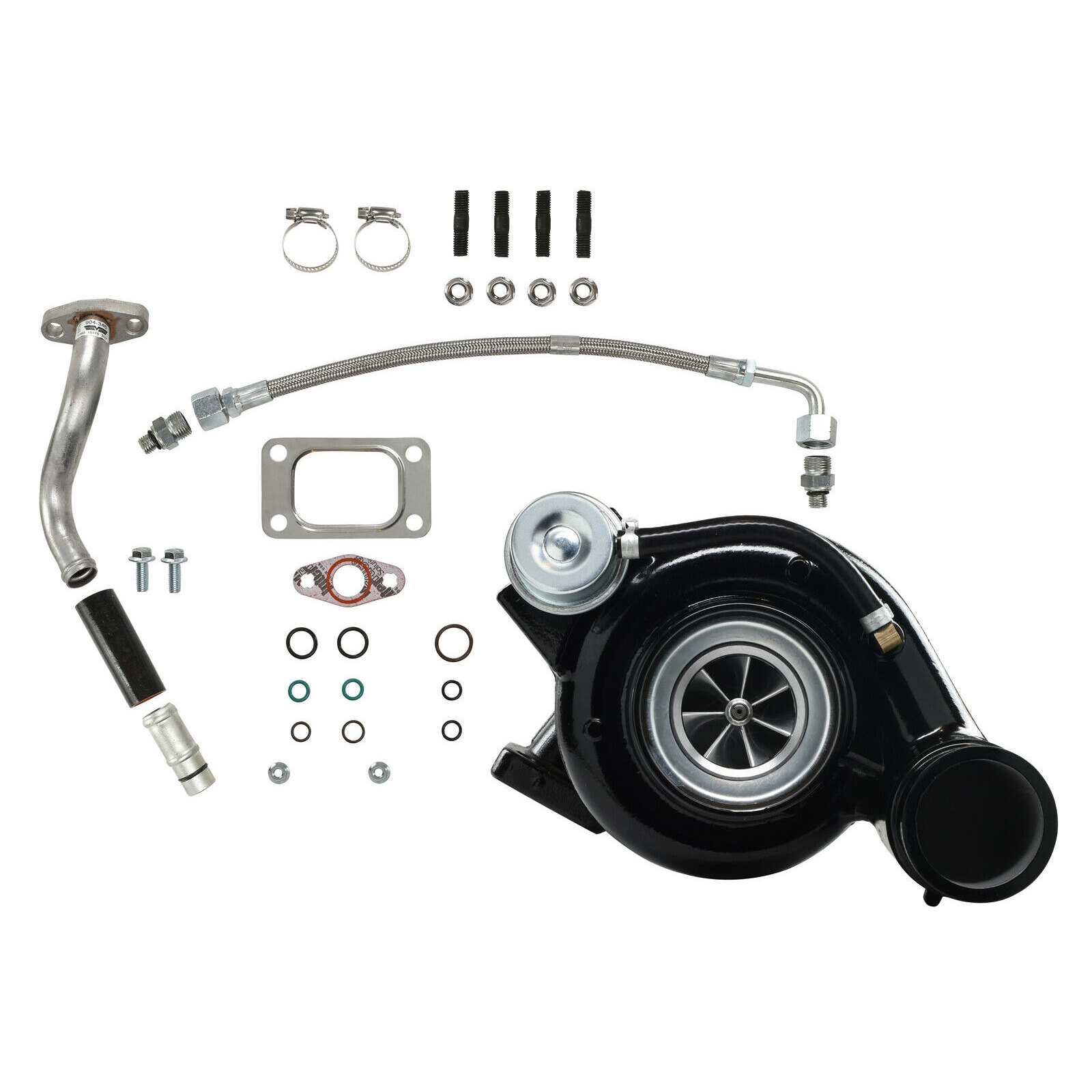

What's Included

• 1 SPOOLOGIC Turbocharger — SL-100-081

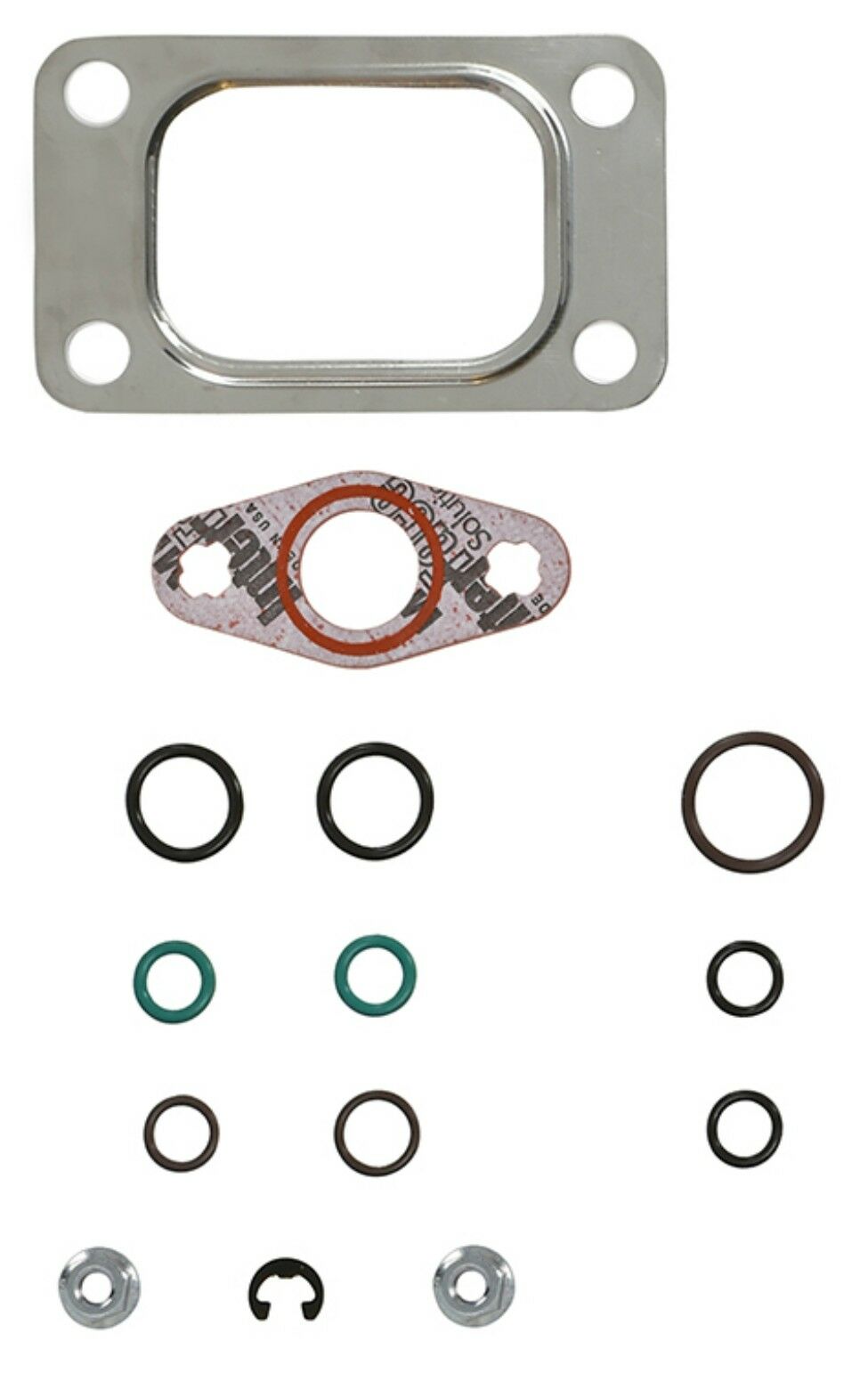

• 1 SPOOLOGIC Turbo Installation Gasket Kit — SL-310-072

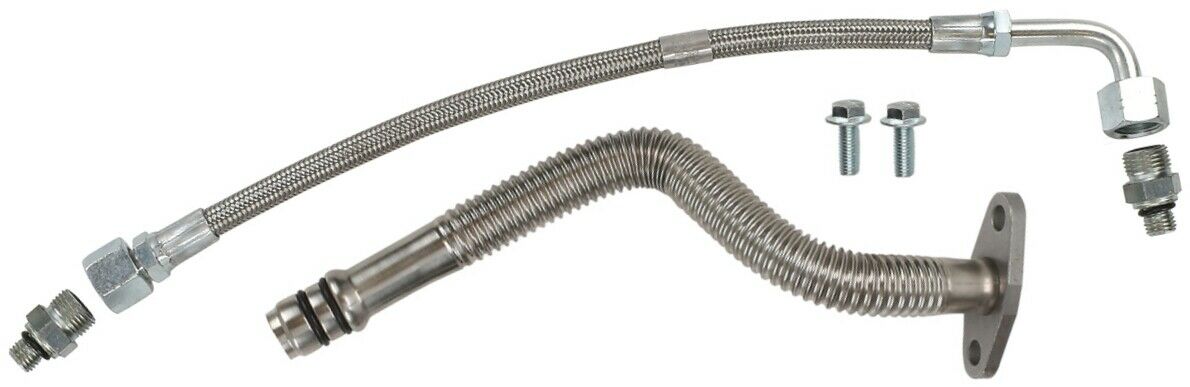

• 1 SPOOLOGIC Oil Feed Line — SL-350-054
• 1 SPOOLOGIC Oil Drain Line — SL-350-065

Fitment

• 2003-2004 Dodge Ram 2500 3500 5.9L Cummins
• 2004 trucks built through January 4, 2004

For the later HE351CW configuration, see SL-100-083.

Compare Stock SL-100-080 and Stage 1 SL-100-084 for other configurations. Confirm the individual product’s fitment and hardware requirements before selecting a turbocharger.

Tuning and Supporting Modifications

Tuning is optional and is not required to use this Stock Plus turbocharger.

Compressor Wheel

• Inducer diameter: 56 mm
• Exducer diameter: 86 mm
• Blade design: 7+7 splitter blade
• Compressor extended tip: N/A
• Compressor wheel material: 5-axis CNC-machined billet aluminum

Turbine Shaft

• Turbine inducer: 65 mm
• Turbine exducer: 58 mm
• Blade count: 12
• Turbine wheel material: High-nickel Inconel

Bearings, Seals, and Balancing

The SL-100-081 is assembled with upgraded internal components designed to support shaft stability, oil control, and consistent rotating-assembly operation.

• Extreme-duty journal bearings — Bronze alloy with updated oil grooves
• 360-degree thrust bearing — Axial-load support
• Step-gap seal rings — Improved sealing and oil control
• High-speed VSR balancing — Smooth, consistent operation

Wastegate Control

Boost pressure operates the wastegate actuator mechanically. This configuration does not use the later HE351CW electrical wastegate control solenoid.

• Configuration: Internally wastegated

Coatings and Finish Options

The turbine housing and center-section exterior are ceramic coated to help manage radiant heat and resist oxidation. Heat reduction varies with operating conditions. The finish options below apply only to the compressor housing.

• Raw: Bead-blasted satin natural aluminum; uncoated compressor housing
• Black: Gloss black powder-coated compressor housing
• Red: Gloss red powder-coated compressor housing

OEM Cross-References

• Holset / Cummins: 3593075
• Holset / Cummins: 3599810
• Holset / Cummins: 3599811
• Holset / Cummins: 4033667
• Holset / Cummins: 4033667H
• Mopar: R5086863AB

Use these numbers to identify the original application. Confirm the engine, model year, transmission where applicable, and turbocharger configuration before ordering.

⚠️ Emissions Notice

Not CARB approved. Not legal for sale or use in the state of California.

1-Year Limited Warranty

Every SPOOLOGIC turbocharger carries a one-year limited warranty against defects in materials and workmanship from the original purchase date. Coverage applies to the original purchaser with dated proof of purchase. Contact SPOOLOGIC for return authorization before shipping the turbocharger for inspection. If inspection confirms a covered defect, SPOOLOGIC will repair or replace the turbocharger at its discretion. Damage from foreign-object debris, oil starvation, contaminated or restricted oil flow, extended oil-change intervals, over-boosting, over-fueling, improper installation or tuning, operation beyond the intended range, or use outside the listed application is excluded, along with cosmetic wear, coating discoloration, and normal heat-cycling marks. Customers are responsible for shipping both to SPOOLOGIC and back, whether the claim is approved or denied. Labor, diagnostics, removal, reinstallation, towing, downtime, and other related expenses are not covered. See the SPOOLOGIC Warranty Policy for complete terms and claim procedures.
