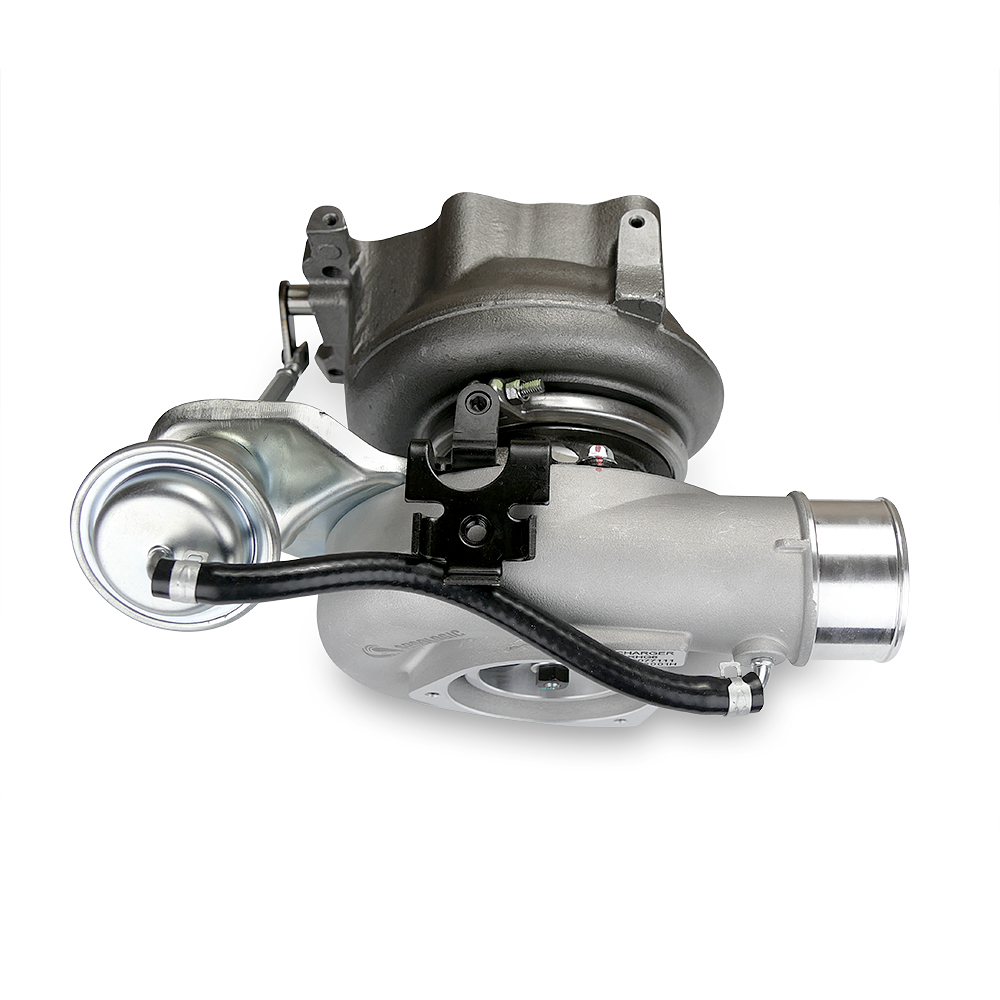

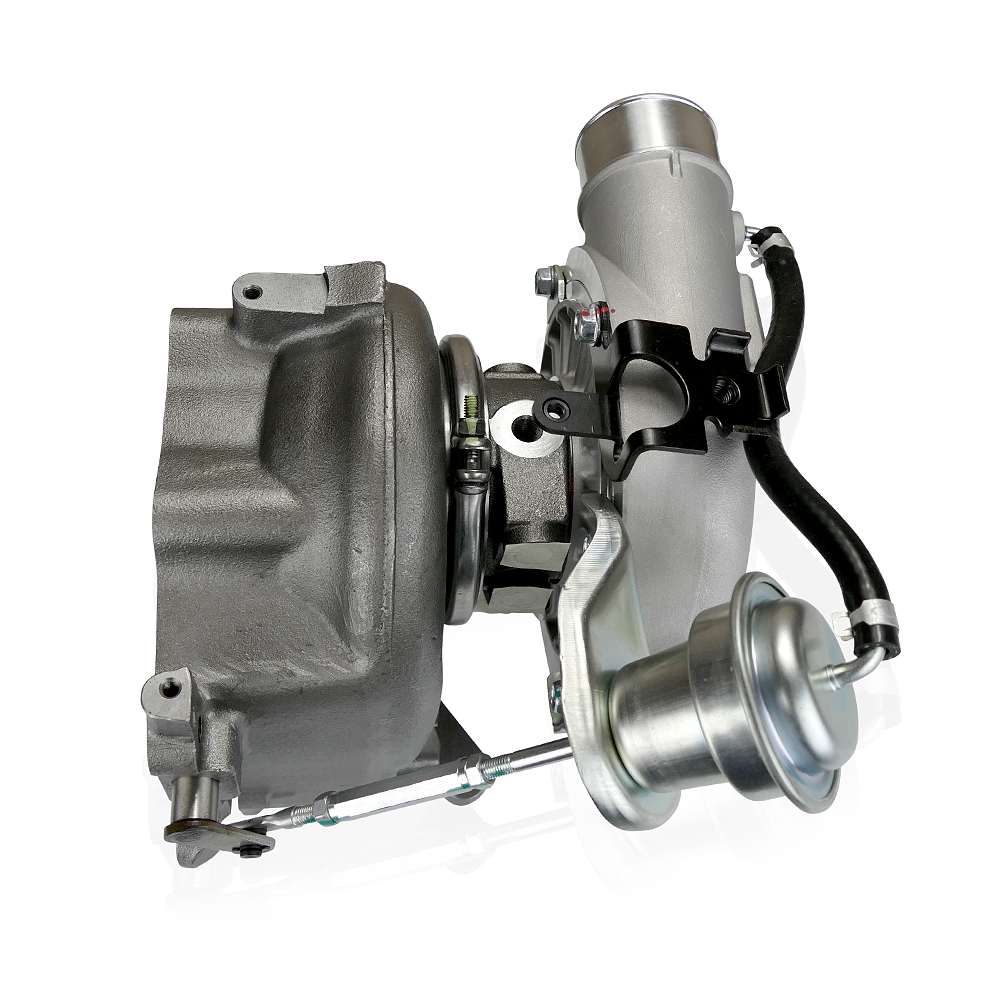

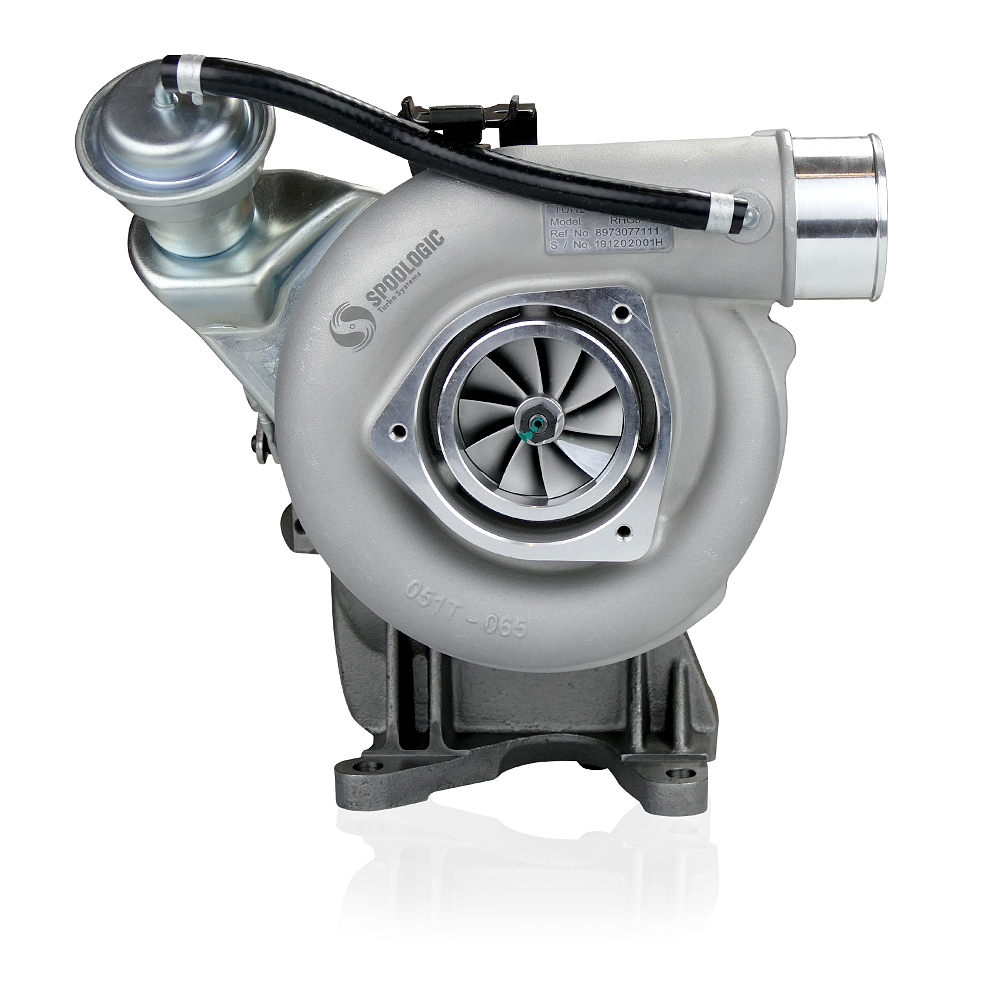

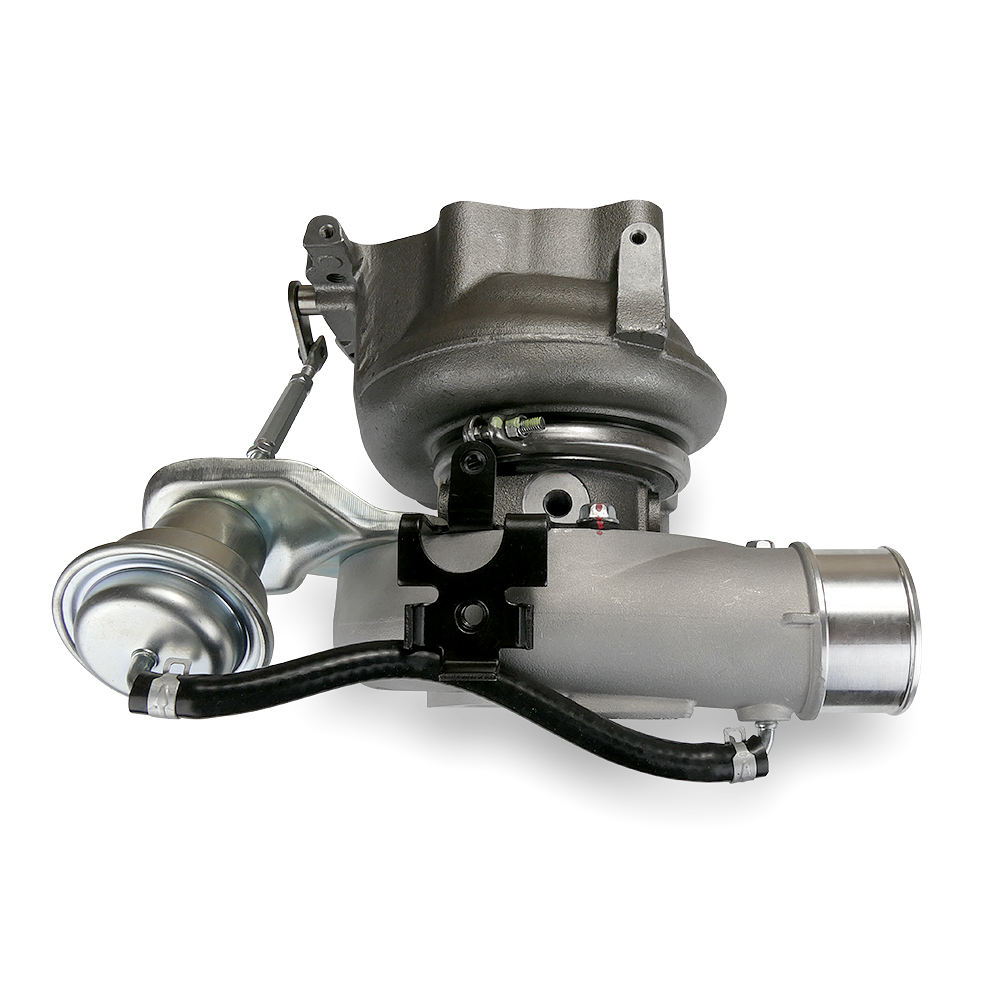

SPOOLOGIC Stock Turbocharger (Federal Emissions)

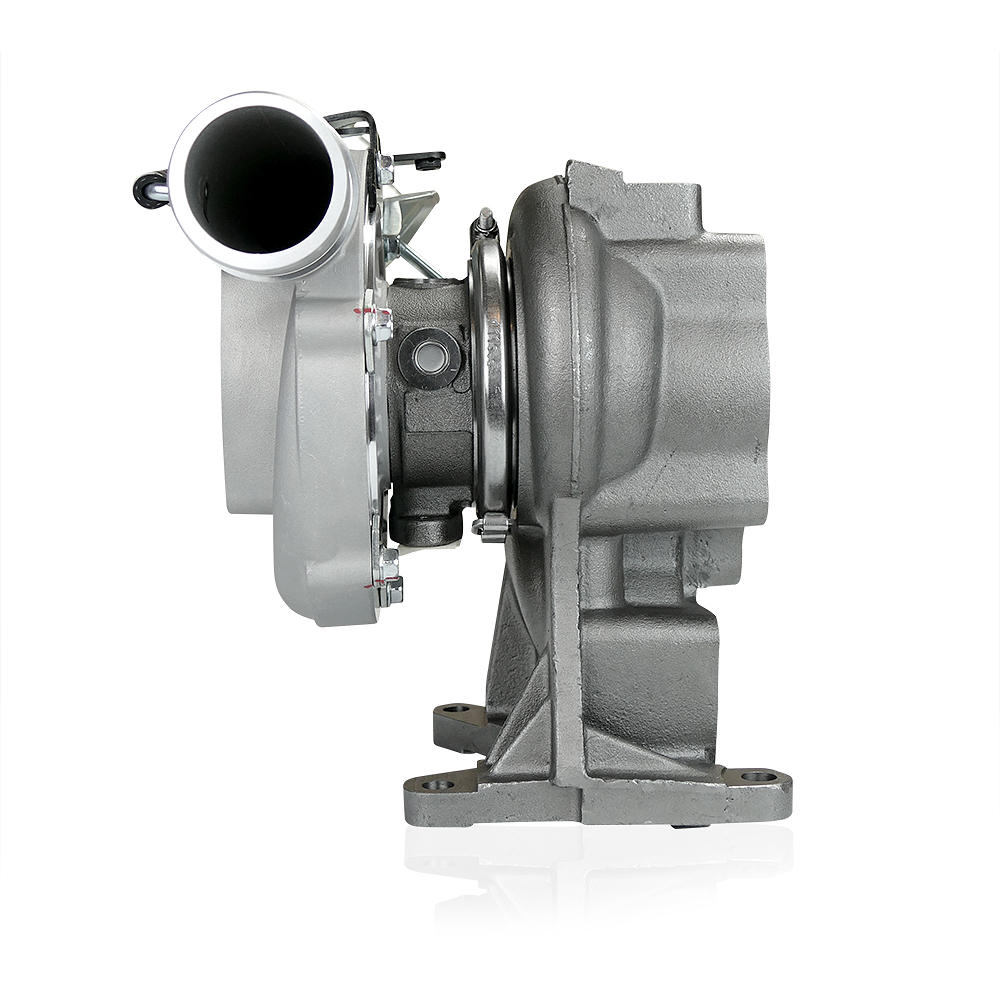

The SPOOLOGIC SL-100-050 is a brand-new, direct-fit RHG6 stock replacement turbocharger for 2001–2004 Chevrolet Silverado 2500HD 3500 and GMC Sierra 2500HD 3500 pickup trucks equipped with the 6.6L Duramax LB7 and Federal emissions. Designed for daily driving, towing, and work-truck service, it combines factory-size compressor and turbine wheels with upgraded internal components, a new wastegate actuator, ceramic-coated hot-side components, and installation hardware. It provides a replacement for a worn, leaking, or failed original turbocharger while maintaining factory-style throttle response and drivability.

Features

• Brand new, no core charge
• stock RHG6 turbocharger
• Direct drop-in fit using factory connections.
• Factory-size compressor wheel
• 11-blade turbine assembly
• Journal bearings, 360-degree thrust bearing, and step-gap seals
• Internally wastegated housing with a new actuator
• Ceramic-coated turbine housing and center-section exterior
• High-speed VSR balancing

What's Included

• 1 SPOOLOGIC Turbocharger — SL-100-050
• 1 SPOOLOGIC Wastegate Actuator
• 1 SPOOLOGIC Turbo Installation Gasket Kit — SL-310-021
• 1 SPOOLOGIC Oil Feed Line — SL-350-020
• 1 SPOOLOGIC Oil Drain Line — SL-350-030
• 1 SPOOLOGIC Downpipe to Exhaust Pipe V-Band Clamp — SL-330-030

Fitment

• 2001-2004 Chevrolet Silverado GMC Sierra 2500 3500 6.6L Duramax LB7
• Federal emissions applications

Compare the Stock Plus SL-100-051 and Stage 1 SL-100-052 for other configurations in this application range.

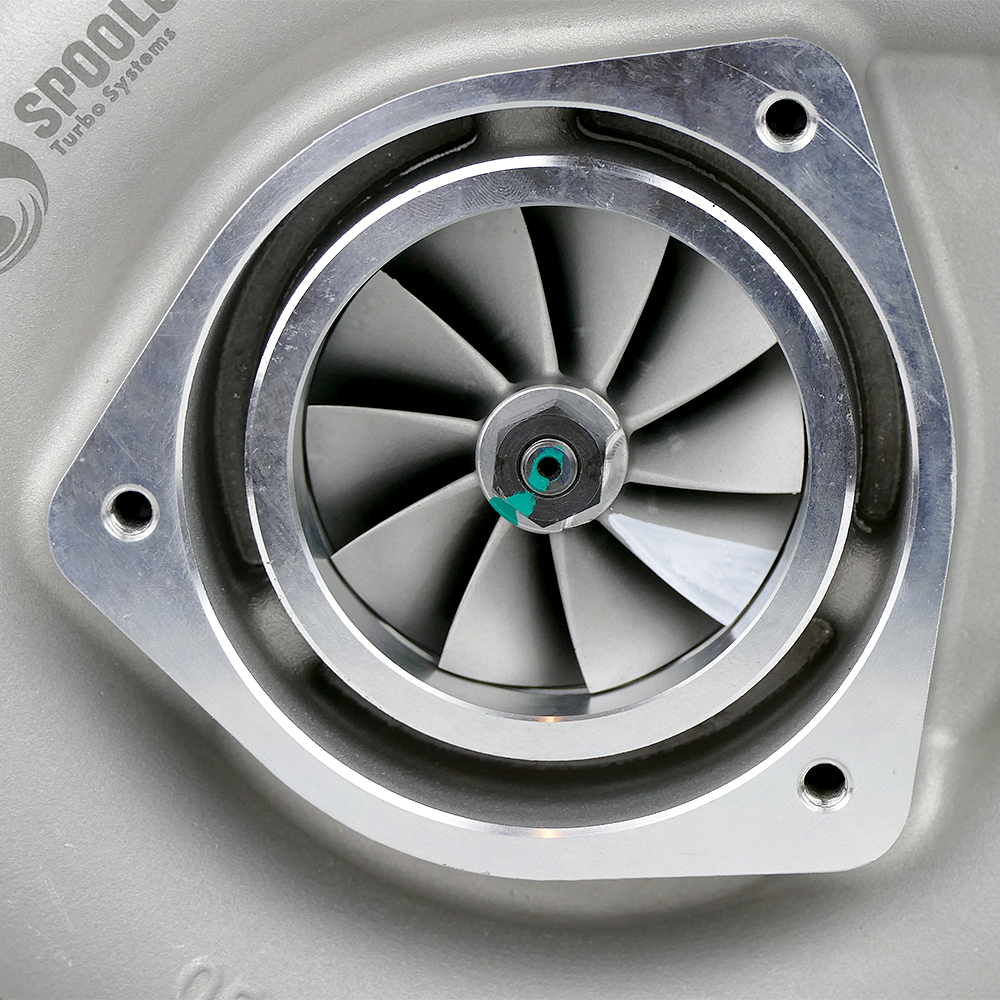

Compressor Wheel

• Inducer diameter: 60.6 mm
• Exducer diameter: 82 mm
• Compressor blade design: 11+0 — 11 full-length blades with no splitters
• Compressor wheel material: Cast aluminum

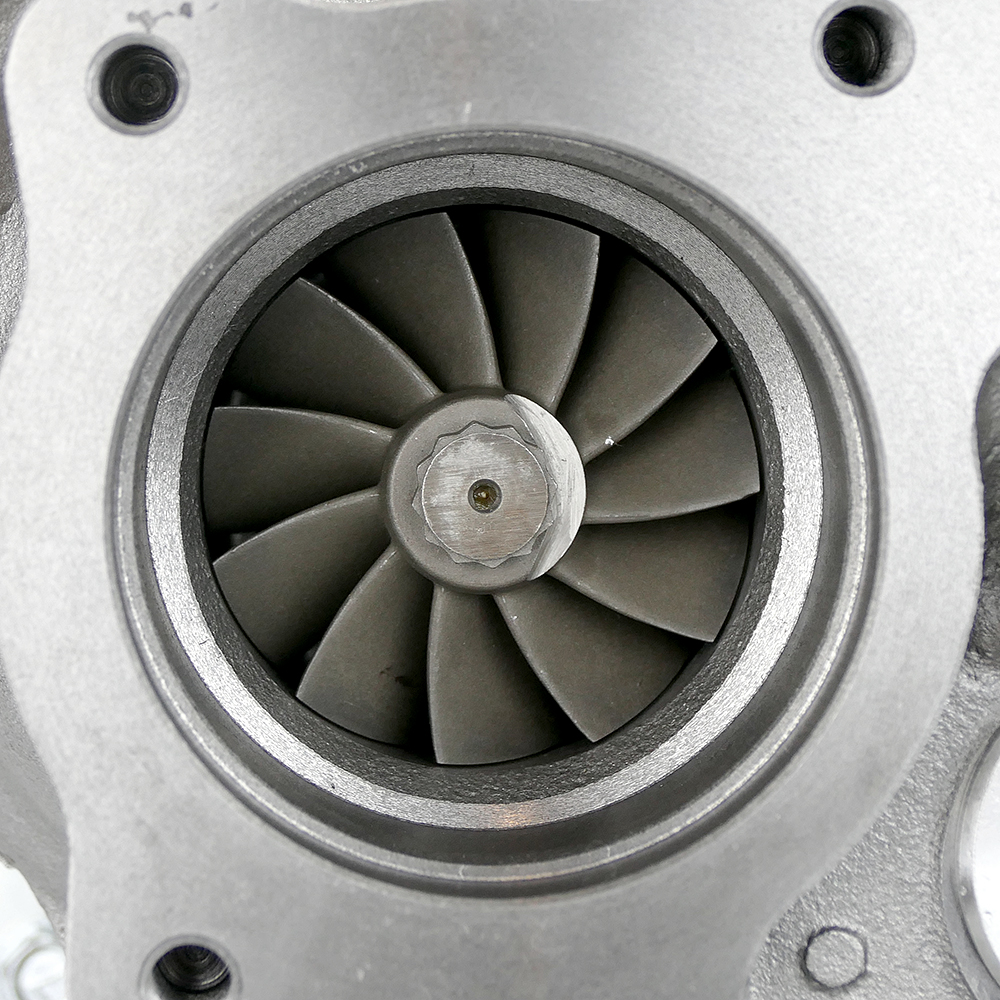

Turbine Shaft

• Turbine inducer: 68 mm
• Turbine exducer: 62 mm
• Blade count: 11
• Turbine wheel material: High-nickel Inconel

Bearings, Seals, and Balancing

The SL-100-050 is assembled with upgraded internal components designed to support shaft stability, oil control, and consistent rotating-assembly operation.

• Extreme-duty journal bearings — Bronze alloy with updated oil grooves
• 360-degree thrust bearing — Axial-load support
• Step-gap seal rings — Improved sealing and oil control
• High-speed VSR balancing — Smooth, consistent operation

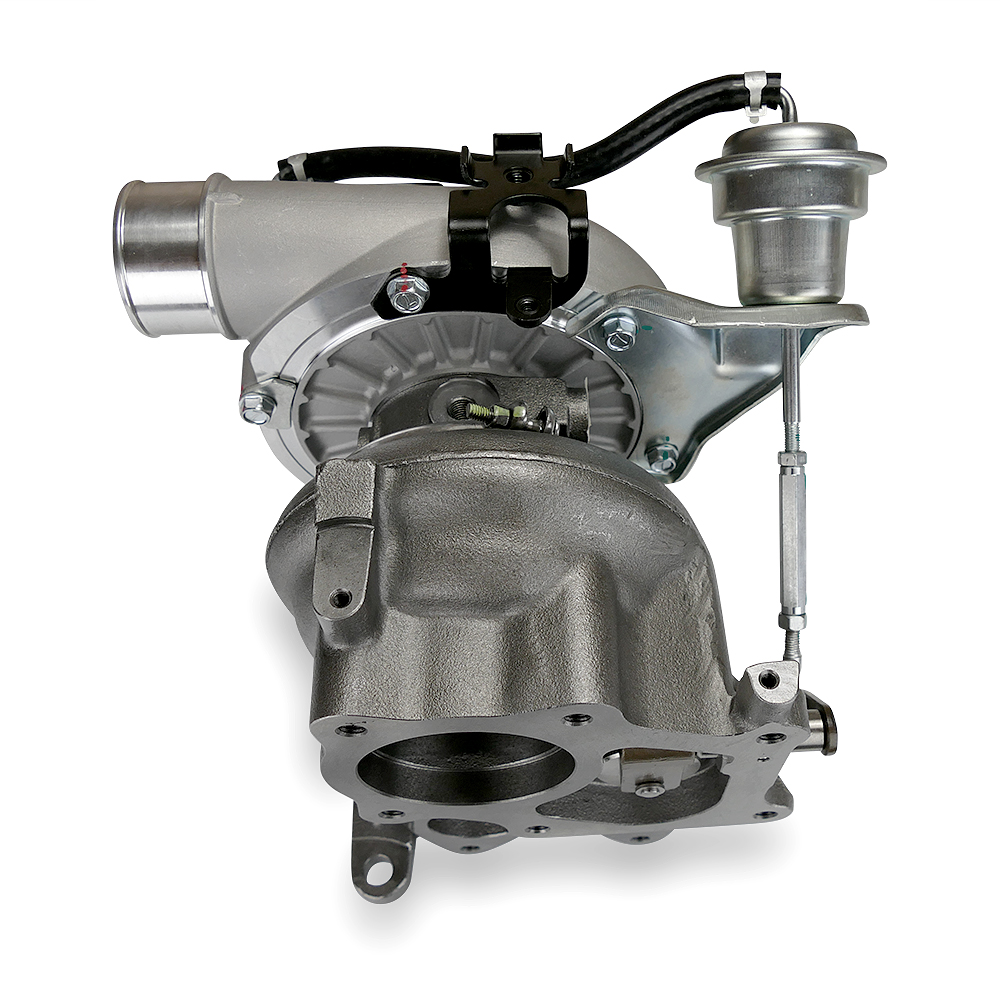

Wastegate Control

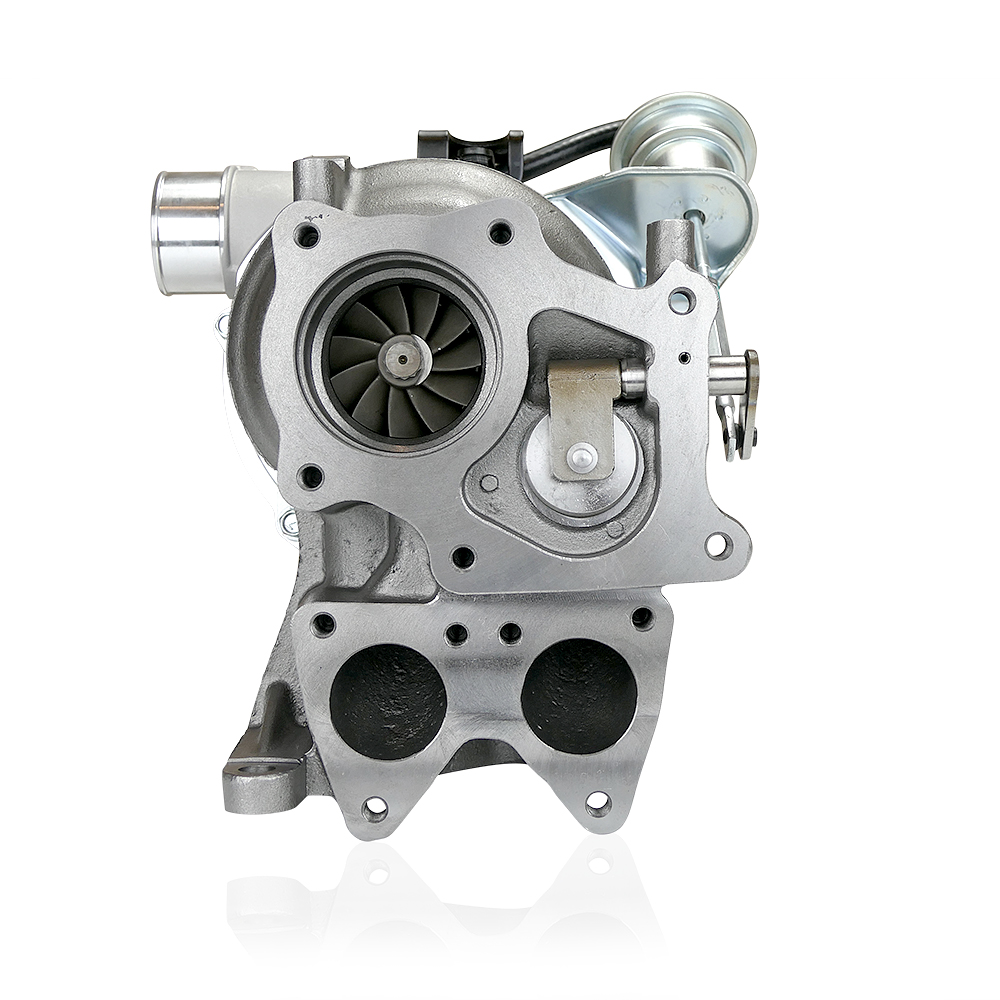

The RHG6 turbine housing uses an internal wastegate. A new wastegate actuator is installed and tested before shipment.

• Configuration: Internally wastegated

Coatings and Finish Options

The turbine housing and center-section exterior are ceramic coated to help manage radiant heat and resist oxidation. Heat reduction varies with operating conditions.

OEM Cross-References

• GM: 97307711
• GM: 97720748

Use these numbers to identify the original application. Confirm the engine, model year, Federal-emissions configuration, and turbocharger configuration before ordering.

1-Year Limited Warranty

Every SPOOLOGIC turbocharger carries a one-year limited warranty against defects in materials and workmanship from the original purchase date. Coverage applies to the original purchaser with dated proof of purchase. Contact SPOOLOGIC for return authorization before shipping the turbocharger for inspection. If inspection confirms a covered defect, SPOOLOGIC will repair or replace the turbocharger at its discretion. Damage from foreign-object debris, oil starvation, contaminated or restricted oil flow, extended oil-change intervals, over-boosting, over-fueling, improper installation or tuning, operation beyond the intended range, or use outside the listed application is excluded, along with cosmetic wear, coating discoloration, and normal heat-cycling marks. Customers are responsible for shipping both to SPOOLOGIC and back, whether the claim is approved or denied. Labor, diagnostics, removal, reinstallation, towing, downtime, and other related expenses are not covered. See the SPOOLOGIC Warranty Policy for complete terms and claim procedures.
