SPOOLOGIC Stock Plus Performance Turbocharger (Federal Emissions)

The SPOOLOGIC SL-100-051 is a brand-new, direct-fit Stock Plus RHG6 turbocharger for 2001–2004 Chevrolet Silverado 2500HD 3500 and GMC Sierra 2500HD 3500 pickup trucks equipped with the 6.6L Duramax LB7 and Federal emissions. It pairs a 60.6/82/87.7 mm extended-tip compressor wheel with a factory-size 68/62 mm turbine, upgraded internal components, a new wastegate actuator, and ceramic-coated hot-side components. Designed as a mild upgrade for daily driving, towing, and work-truck service, the Stock Plus configuration adds compressor airflow capability while retaining the original RHG6 mounting arrangement.

Features

• Brand new, no core charge
• Stock Plus RHG6 turbocharger
• Direct drop-in fit using factory connections.
• Extended-tip compressor wheel
• 11-blade turbine assembly
• Journal bearings, 360-degree thrust bearing, and step-gap seals
• Internally wastegated housing with a new actuator
• Ceramic coating; raw, red, or black compressor housing options
• High-speed VSR balancing

What's Included

• 1 SPOOLOGIC Turbocharger — SL-100-051
• 1 SPOOLOGIC Wastegate Actuator
• 1 SPOOLOGIC Turbo Installation Gasket Kit — SL-310-021
• 1 SPOOLOGIC Oil Feed Line — SL-350-020
• 1 SPOOLOGIC Oil Drain Line — SL-350-030
• 1 SPOOLOGIC Downpipe to Exhaust Pipe V-Band Clamp — SL-330-030

Fitment

• 2001-2004 Chevrolet Silverado GMC Sierra 2500 3500 6.6L Duramax LB7
• Federal emissions applications

Compare the Stock SL-100-050 and Stage 1 SL-100-052 for other configurations in this application range.

Tuning and Supporting Modifications

Tuning is optional and is not required to use this Stock Plus turbocharger.

Compressor Wheel

• Inducer diameter: 60.6 mm
• Exducer diameter: 82 mm
• Extended-tip diameter: 87.7 mm
• Compressor blade design: 11+0 — 11 full-length blades with no splitters
• Compressor wheel material: 5-axis CNC-machined billet aluminum

Turbine Shaft

• Turbine inducer: 68 mm
• Turbine exducer: 62 mm
• Blade count: 11
• Configuration: Internally wastegated
• Turbine wheel material: High-nickel Inconel

Bearings, Seals, and Balancing

The SL-100-051 is assembled with upgraded internal components designed to support shaft stability, oil control, and consistent rotating-assembly operation.

• Extreme-duty journal bearings — Bronze alloy with updated oil grooves
• 360-degree thrust bearing — Axial-load support
• Step-gap seal rings — Improved sealing and oil control
• High-speed VSR balancing — Smooth, consistent operation

Wastegate Control

The RHG6 housing uses an internal wastegate. A new wastegate actuator is installed and tested before shipment.

Coatings and Finish Options

The turbine housing and center-section exterior are ceramic coated to help manage radiant heat and resist oxidation. Heat reduction varies with operating conditions. The finish options below apply only to the compressor housing.

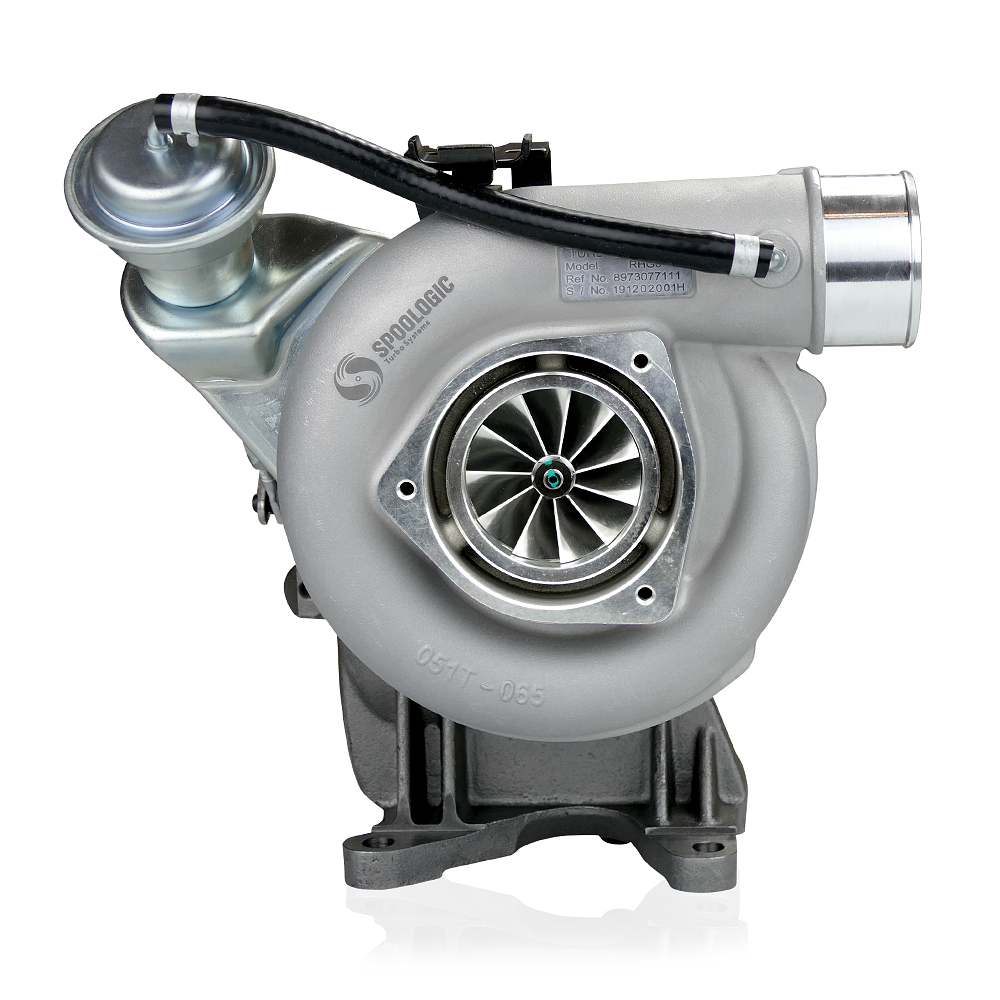

• Raw: Natural aluminum compressor housing with no exterior coating

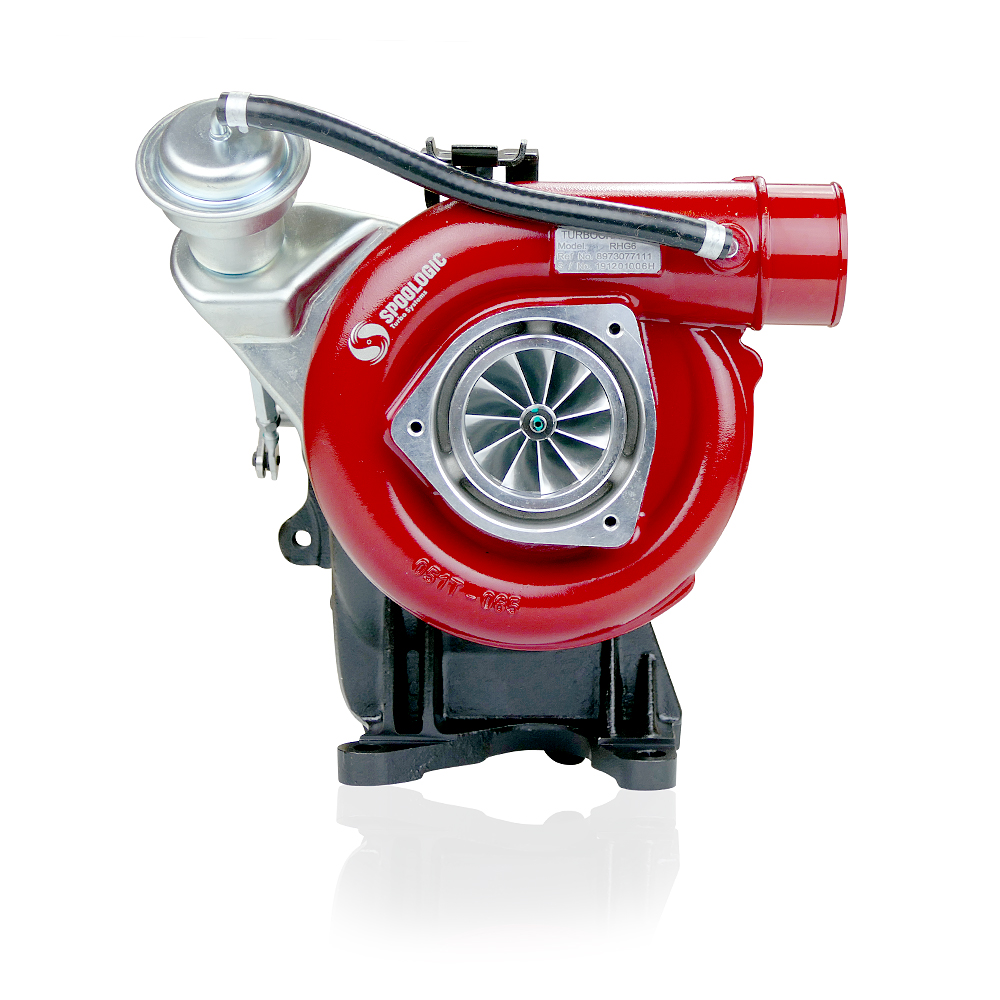

• Red: Red powder-coated compressor housing

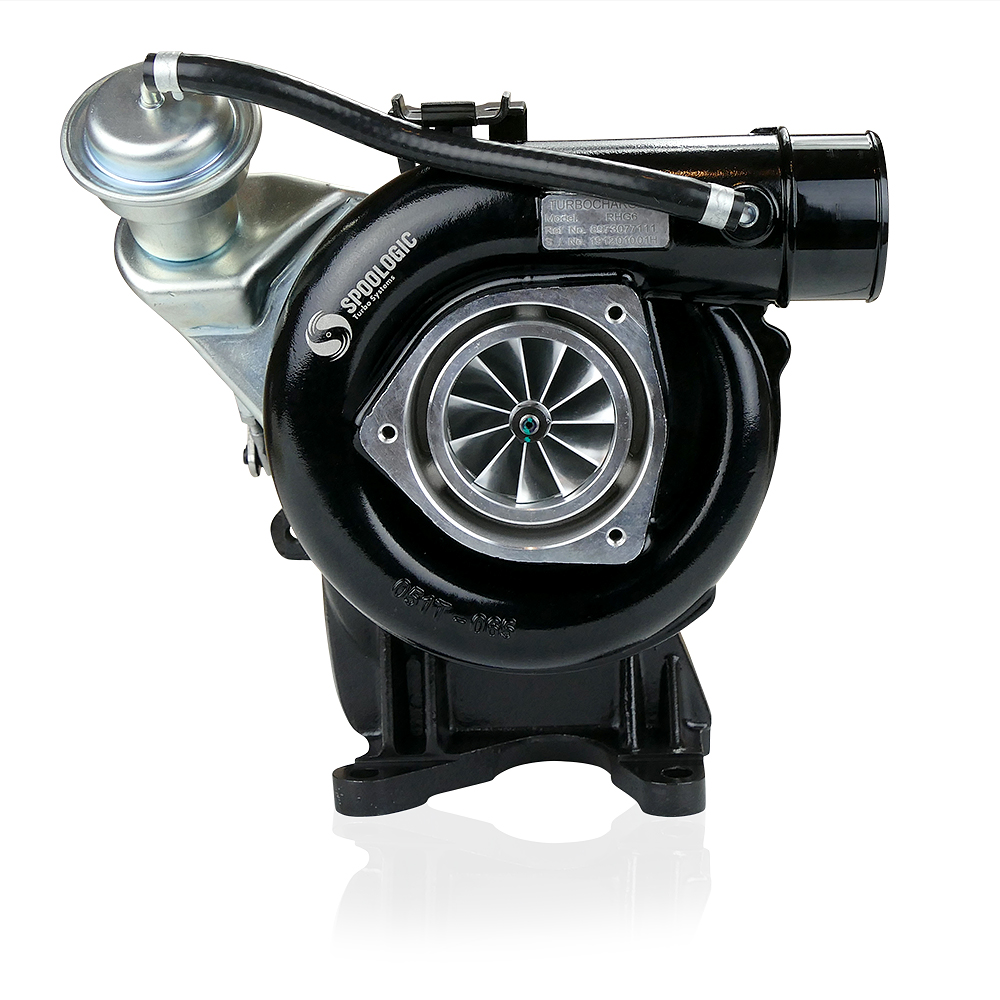

• Black: Black powder-coated compressor housing

OEM Cross-References

• GM: 97307711
• GM: 97720748

Use these numbers to identify the original application. Confirm the engine, model year, Federal-emissions configuration, and turbocharger configuration before ordering. These references do not indicate identical wheel specifications or performance to the original turbocharger.

⚠️ Emissions Notice

Not CARB approved. Not legal for sale or use in the state of California.

1-Year Limited Warranty

Every SPOOLOGIC turbocharger carries a one-year limited warranty against defects in materials and workmanship from the original purchase date. Coverage applies to the original purchaser with dated proof of purchase. Contact SPOOLOGIC for return authorization before shipping the turbocharger for inspection. If inspection confirms a covered defect, SPOOLOGIC will repair or replace the turbocharger at its discretion. Damage from foreign-object debris, oil starvation, contaminated or restricted oil flow, extended oil-change intervals, over-boosting, over-fueling, improper installation or tuning, operation beyond the intended range, or use outside the listed application is excluded, along with cosmetic wear, coating discoloration, and normal heat-cycling marks. Customers are responsible for shipping both to SPOOLOGIC and back, whether the claim is approved or denied. Labor, diagnostics, removal, reinstallation, towing, downtime, and other related expenses are not covered. See the SPOOLOGIC Warranty Policy for complete terms and claim procedures.
