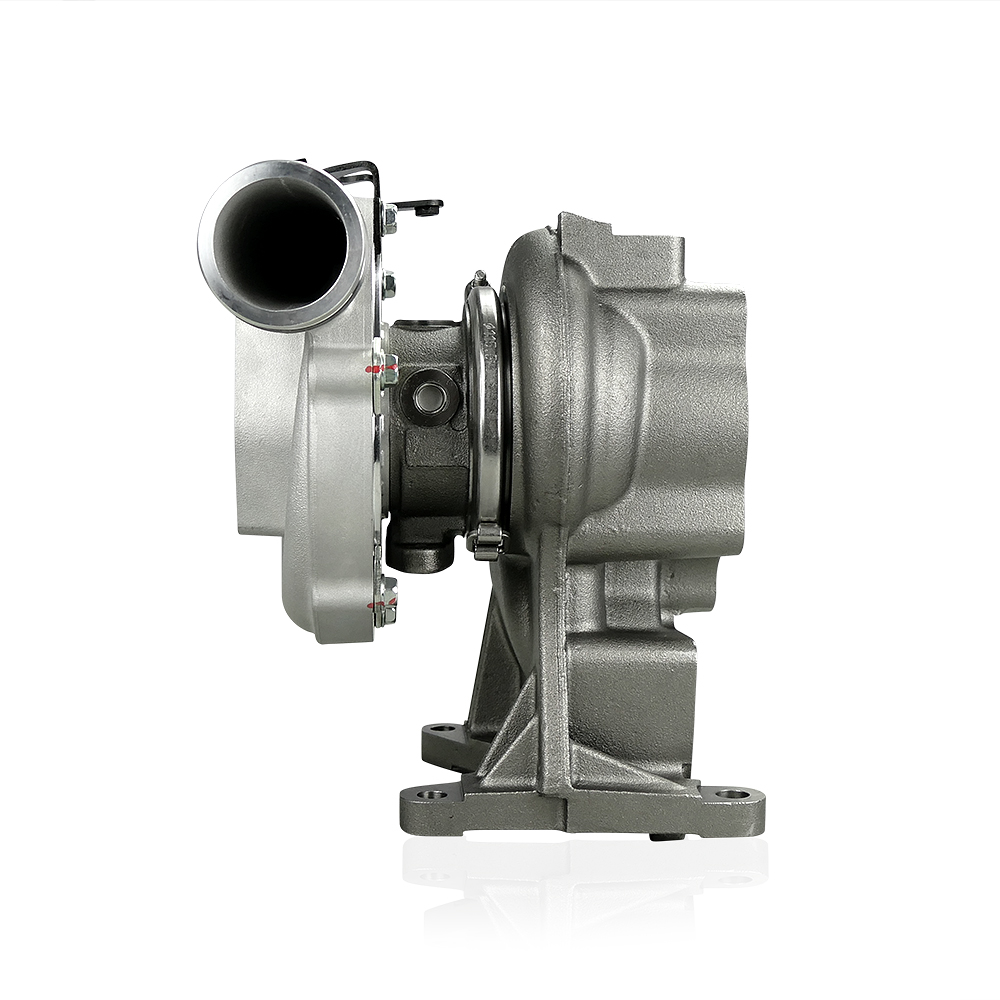

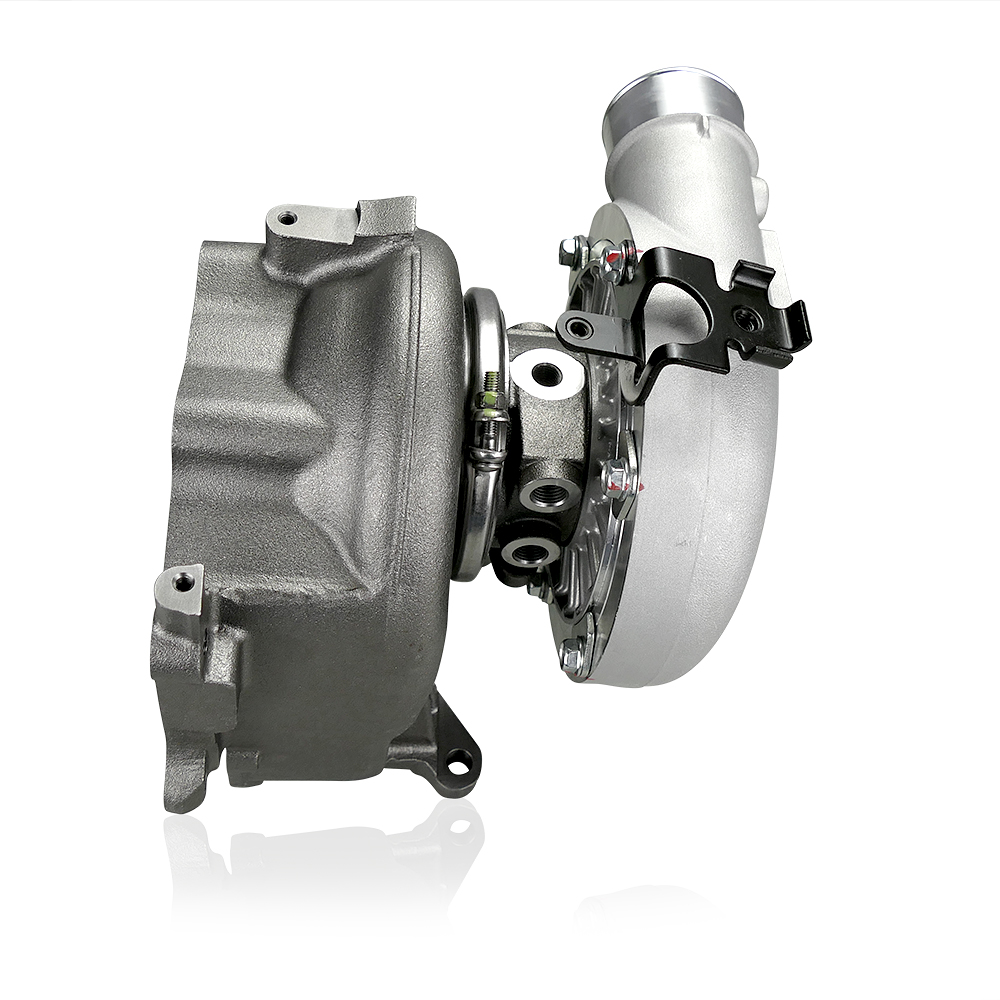

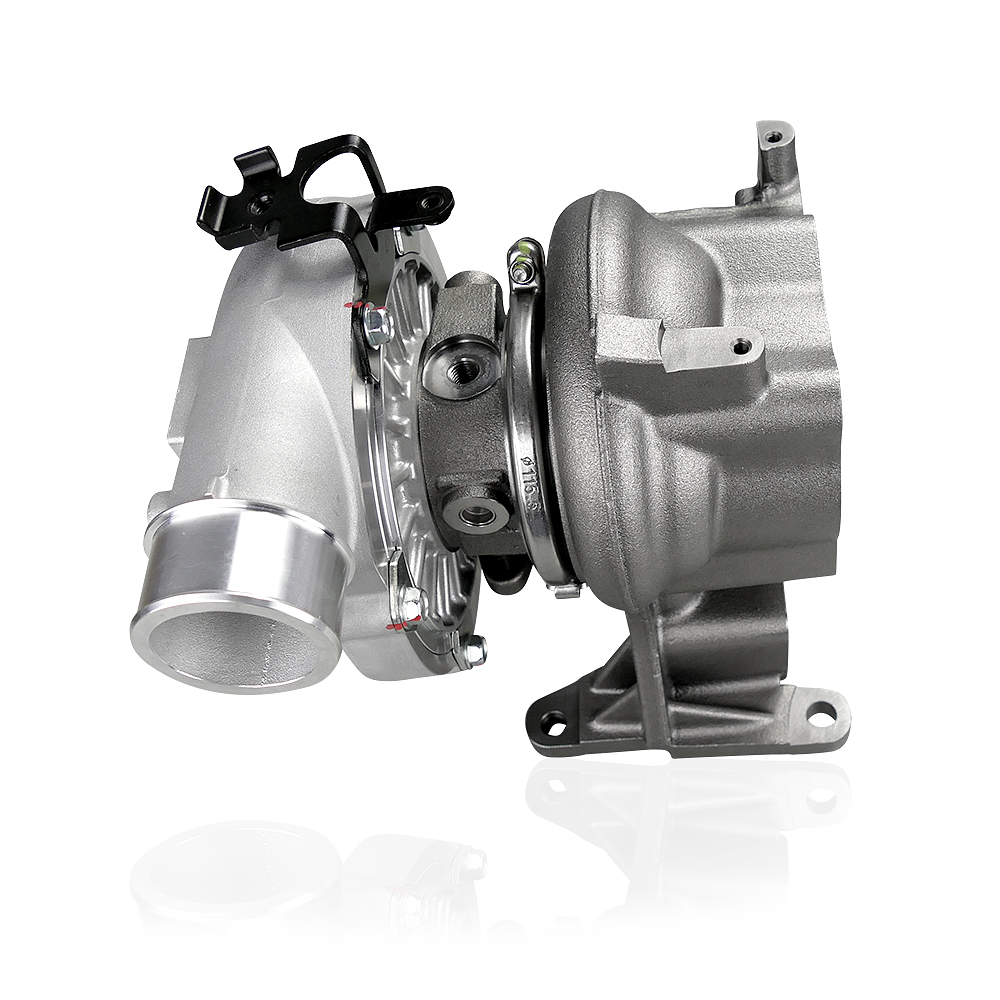

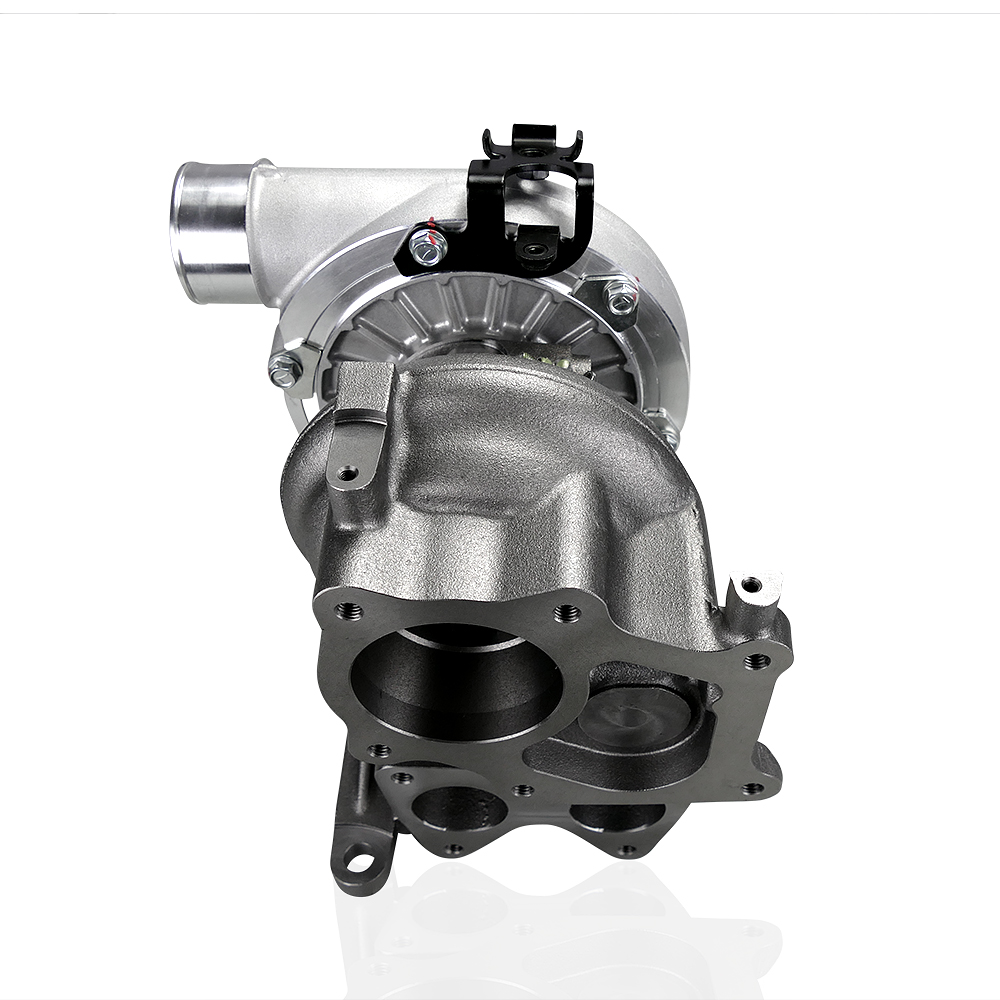

SPOOLOGIC Stage 1 Performance Turbocharger (Federal Emissions)

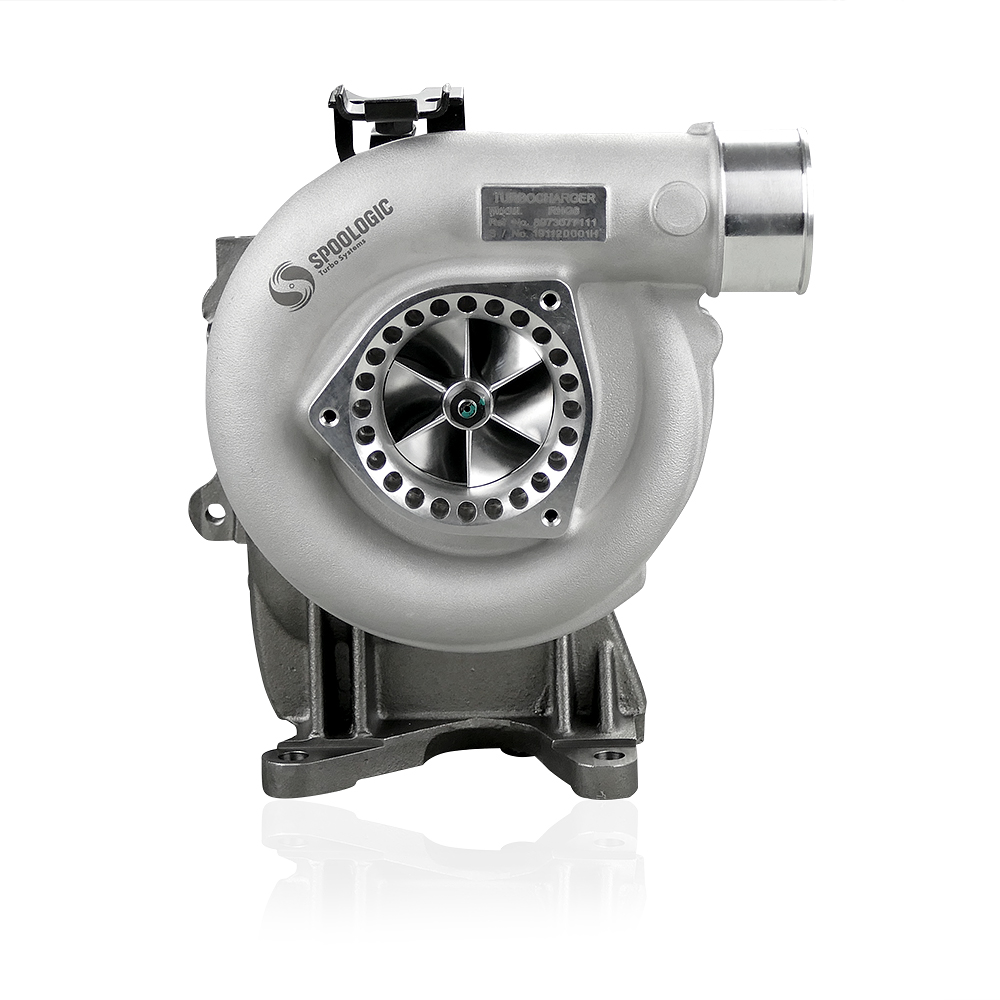

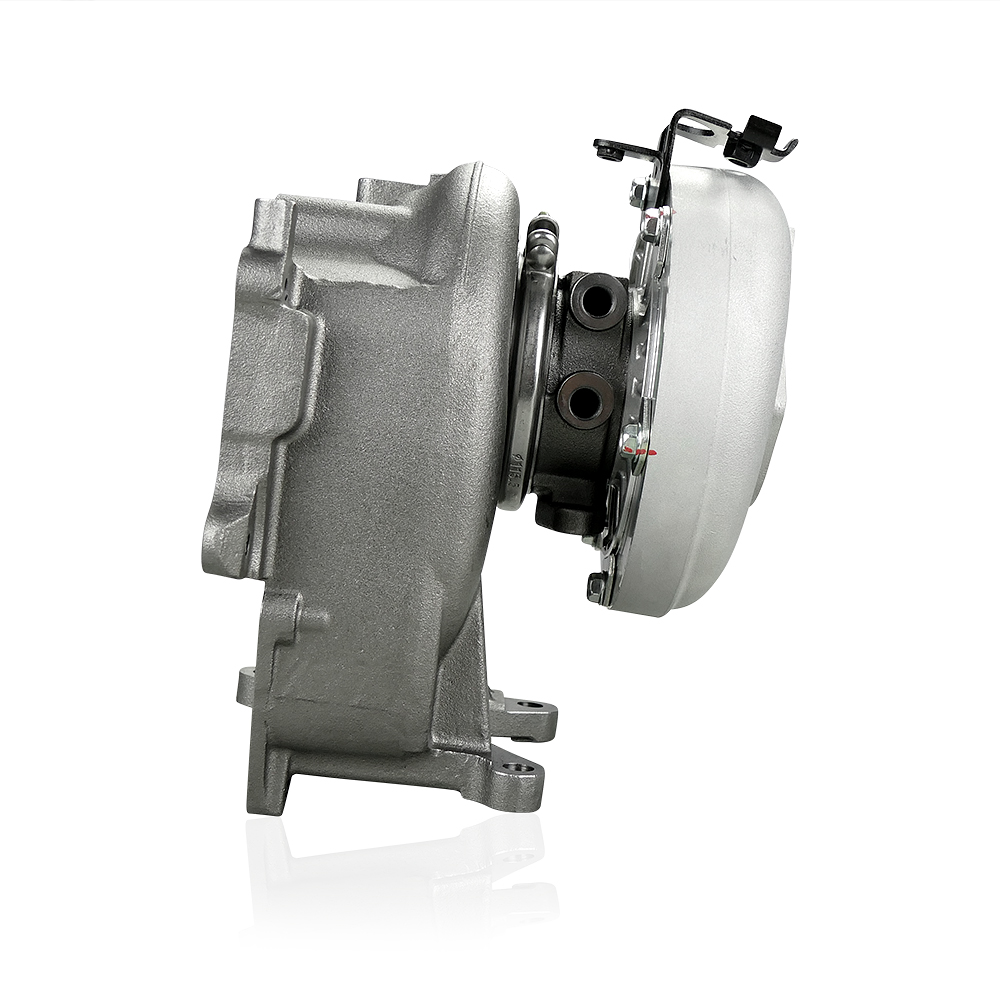

The SPOOLOGIC SL-100-052 is a brand-new, direct-fit Stage 1 RHG6 performance turbocharger for 2001–2004 Chevrolet Silverado 2500HD 3500 and GMC Sierra 2500HD 3500 pickup trucks equipped with the 6.6L Duramax LB7 and Federal emissions. It combines a 63/86.5/90.7 mm 6+6 billet compressor wheel, a 69.4/67.5 mm 11-blade turbine, upgraded internal components, and ceramic-coated hot-side components. The Stage 1 configuration is intended for modified LB7 trucks that need additional airflow capacity while retaining the factory-style turbo installation. It is designed to support approximately 600–625 rear-wheel horsepower with proper tuning, fueling, and supporting modifications.

⚠️ Custom tuning is highly recommended. See tuning recommendations below.

Features

• Brand new, no core charge
• Stage 1 RHG6 turbocharger
• Direct drop-in fit using factory connections.
• Billet compressor wheel
• 11-blade turbine assembly
• Journal bearings, 360-degree thrust bearing, and step-gap seals
• Internally wastegated housing with a new actuator
• Ceramic coating; raw, red, or black compressor housing options
• High-speed VSR balancing

What's Included

• 1 SPOOLOGIC Turbocharger — SL-100-052
• 1 SPOOLOGIC Wastegate Actuator

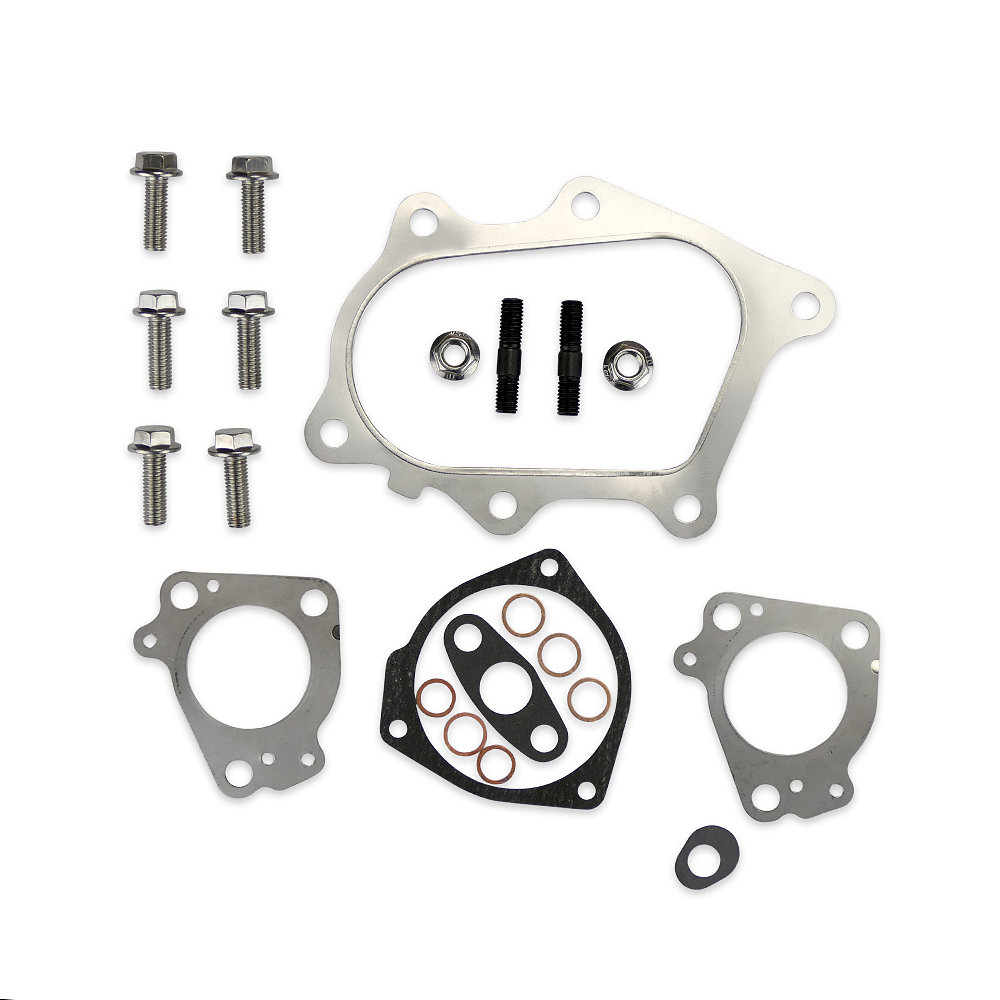

• 1 SPOOLOGIC Turbo Installation Gasket Kit — SL-310-021
• 1 SPOOLOGIC Oil Feed Line — SL-350-020
• 1 SPOOLOGIC Oil Drain Line — SL-350-030
• 1 SPOOLOGIC Downpipe to Exhaust Pipe V-Band Clamp — SL-330-030

Fitment

• 2001-2004 Chevrolet Silverado GMC Sierra 2500 3500 6.6L Duramax LB7
• Federal emissions applications

Compare the Stock SL-100-050 and Stock Plus SL-100-051 for other configurations in this application range.

Tuning and Supporting Modifications

⚠️ Custom Tuning Highly Recommended: Custom tuning is highly recommended to match this Stage 1 turbocharger to the engine, intended use, and supporting components.

Supporting Modifications: Upgrade components as needed to support your intended power level.

• Larger injectors and fuel-system upgrades may be needed to reach the listed power range.
• Intake and intercooler upgrades may be needed to reach the listed power range.
• Adequate exhaust flow and sealed exhaust connections.
• Boost and exhaust-gas-temperature monitoring during setup and loaded operation.

SPOOLOGIC does not provide custom tuning services. Customers are responsible for arranging application-appropriate tuning with a qualified tuning provider.

Power Support

Approximately 600–625 rear-wheel horsepower with a properly matched build. This is total power-support capacity, not a promised horsepower increase. Actual output depends on engine condition, fuel delivery, calibration, and the complete vehicle combination.

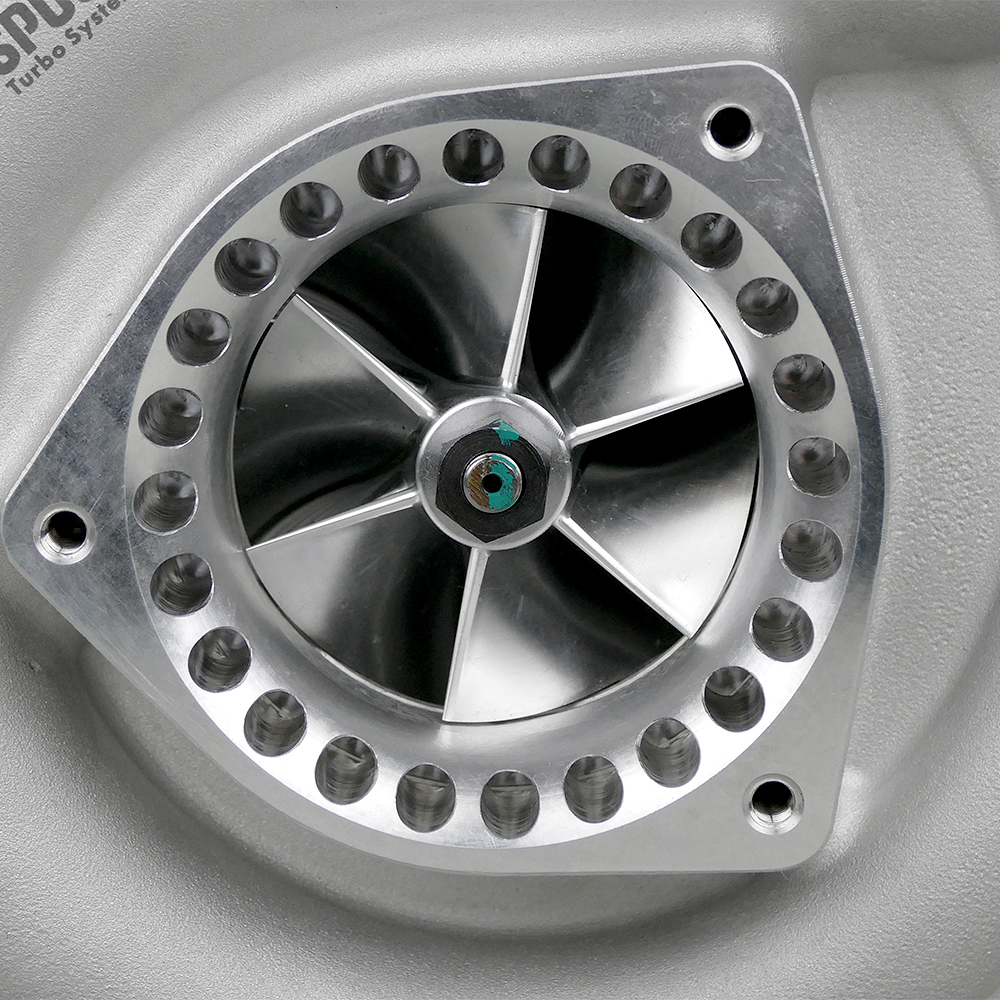

Compressor Wheel

• Inducer diameter: 63 mm
• Exducer diameter: 86.5 mm
• Extended-tip diameter: 90.7 mm
• Blade configuration: 6+6 — six main blades and six splitter blades
• Compressor wheel material: 5-axis CNC-machined billet aluminum

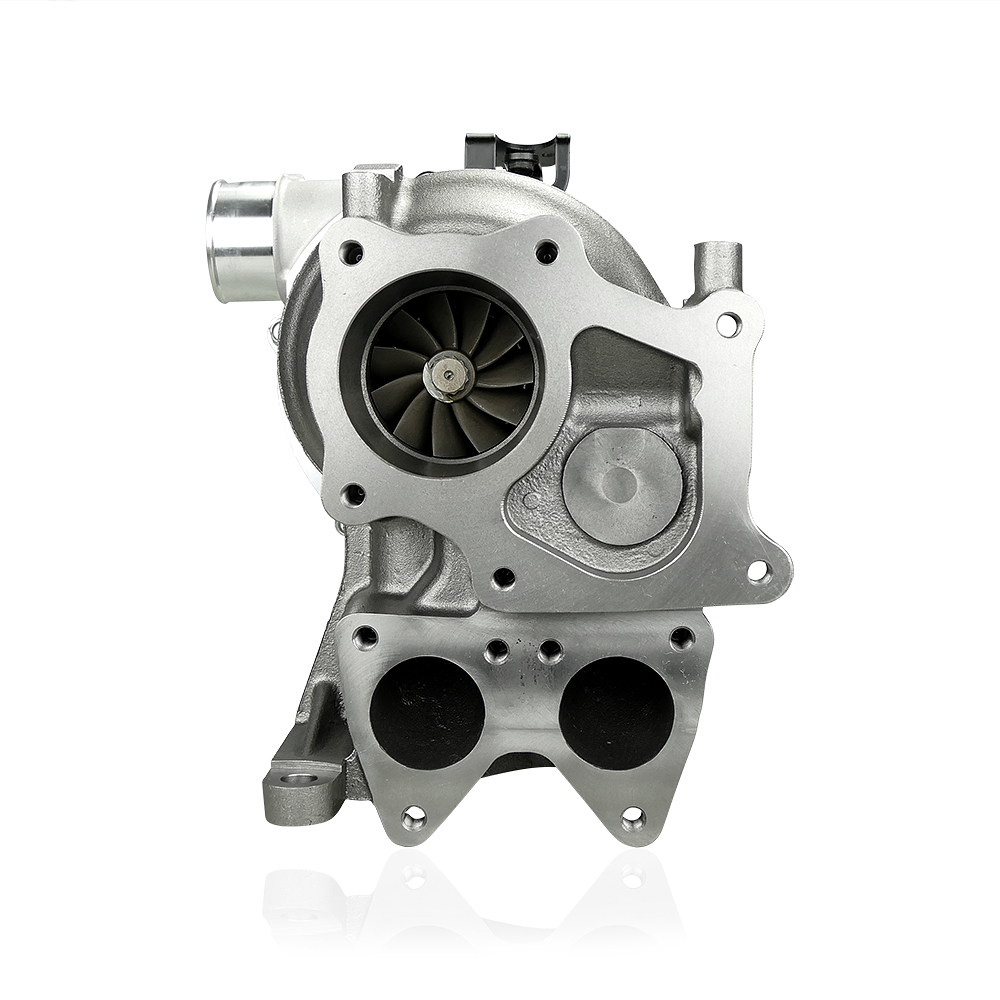

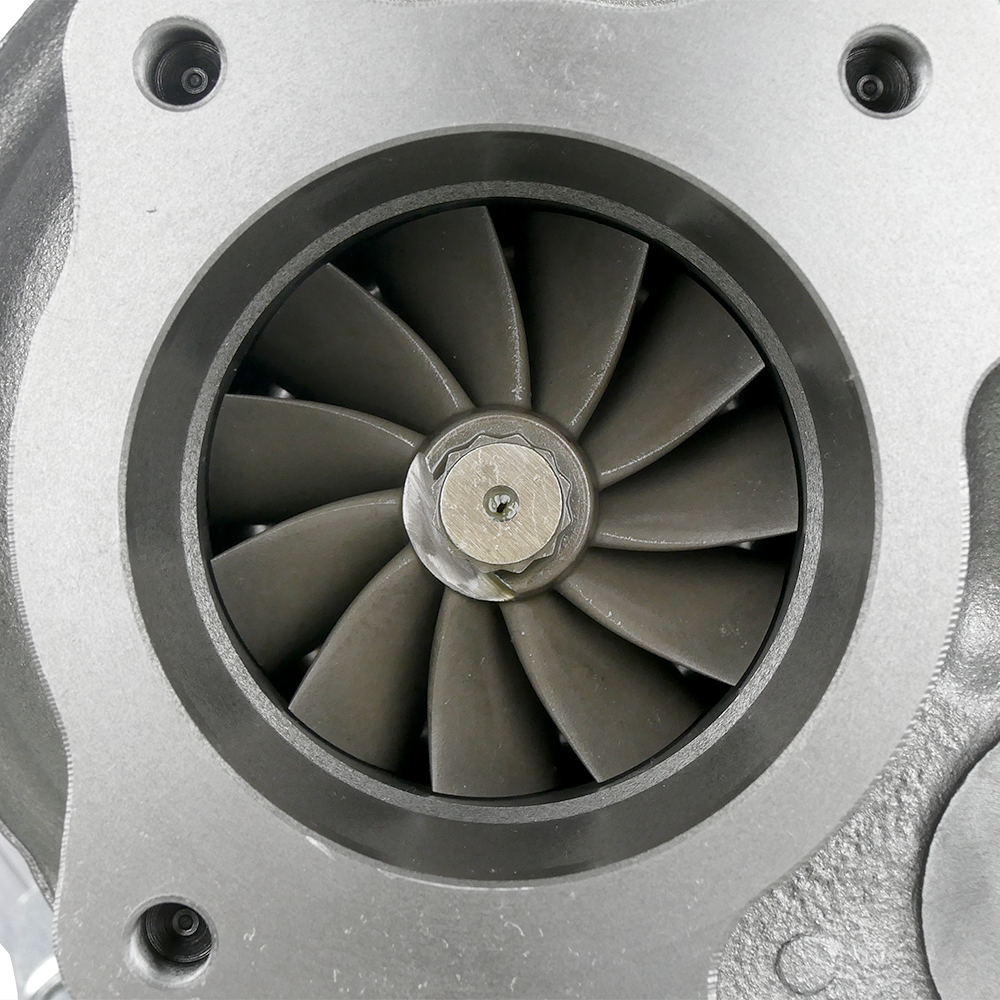

Turbine Shaft

• Turbine inducer: 69.4 mm
• Turbine exducer: 67.5 mm
• Blade count: 11
• Turbine wheel material: High-nickel Inconel

Bearings, Seals, and Balancing

The SL-100-052 is assembled with upgraded internal components designed to support shaft stability, oil control, and consistent rotating-assembly operation.

• Extreme-duty journal bearings — Bronze alloy with updated oil grooves
• 360-degree thrust bearing — Axial-load support
• Step-gap seal rings — Improved sealing and oil control
• High-speed VSR balancing — Smooth, consistent operation

Wastegate Control

The RHG6 turbine housing uses an internal wastegate. A new wastegate actuator is installed and tested before shipment.

• Configuration: Internally wastegated

Coatings and Finish Options

The turbine housing and center-section exterior are ceramic coated to help manage radiant heat and resist oxidation. Heat reduction varies with operating conditions. The finish options below apply only to the compressor housing.

• Raw: Natural aluminum compressor housing with no exterior coating

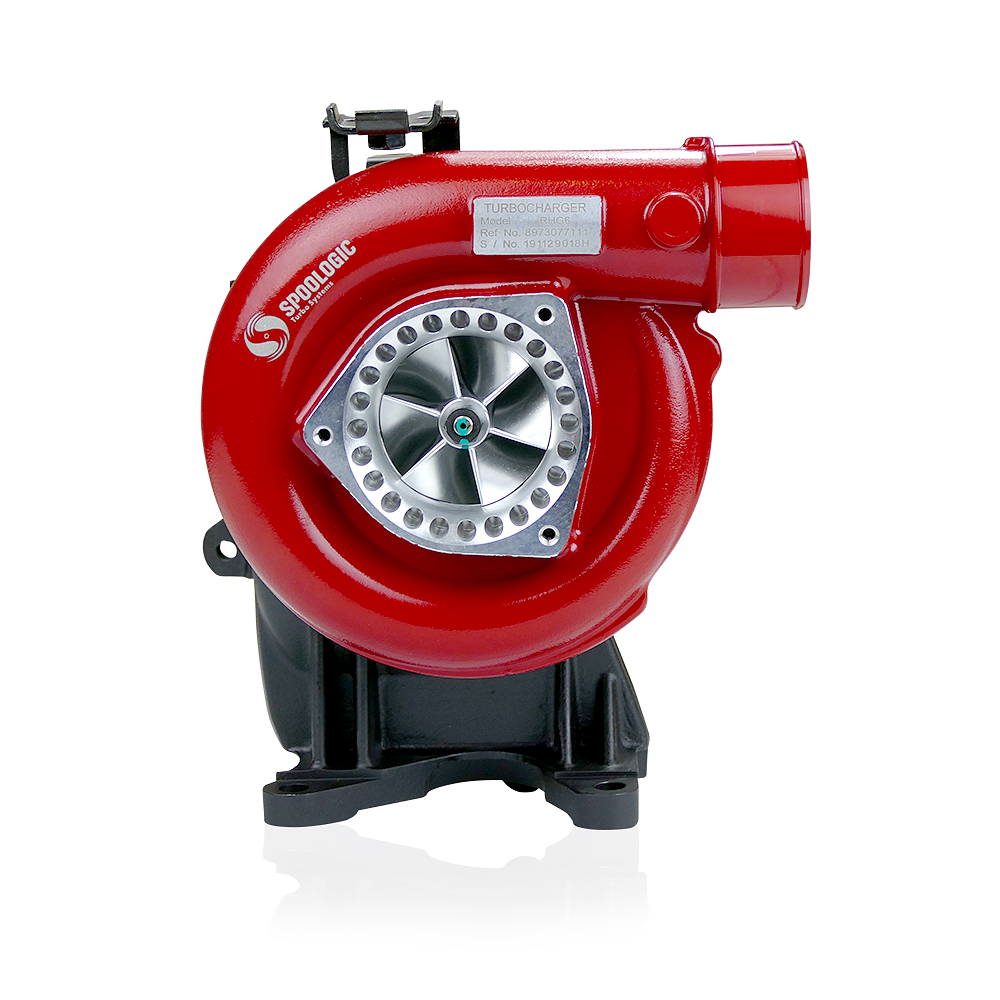

• Red: Red powder-coated compressor housing

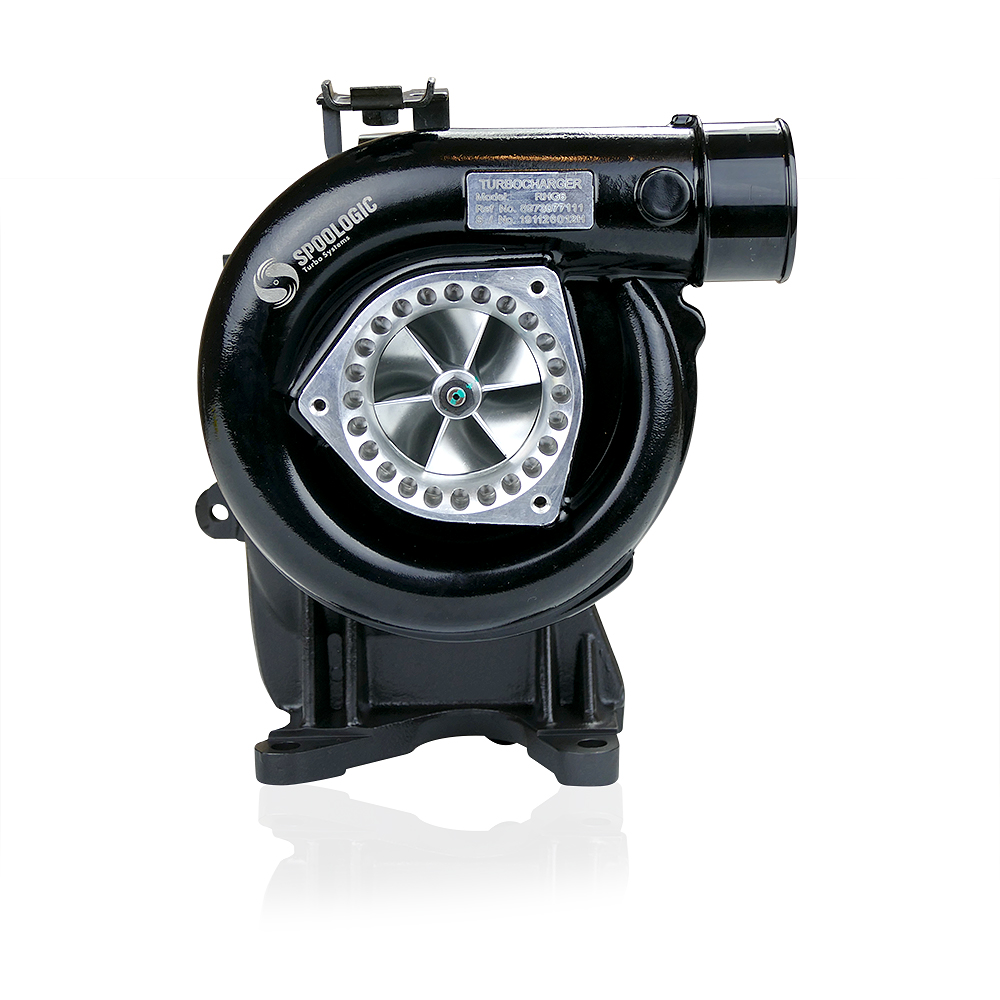

• Black: Black powder-coated compressor housing

OEM Cross-References

• GM: 97307711
• GM: 97720748

Use these numbers to identify the original application. Confirm the engine, model year, Federal-emissions configuration, and turbocharger configuration before ordering. These references do not indicate identical wheel specifications or performance to the original turbocharger.

⚠️ Emissions Notice

Not CARB approved. Not legal for sale or use in the state of California.

1-Year Limited Warranty

Every SPOOLOGIC turbocharger carries a one-year limited warranty against defects in materials and workmanship from the original purchase date. Coverage applies to the original purchaser with dated proof of purchase. Contact SPOOLOGIC for return authorization before shipping the turbocharger for inspection. If inspection confirms a covered defect, SPOOLOGIC will repair or replace the turbocharger at its discretion. Damage from foreign-object debris, oil starvation, contaminated or restricted oil flow, extended oil-change intervals, over-boosting, over-fueling, improper installation or tuning, operation beyond the intended range, or use outside the listed application is excluded, along with cosmetic wear, coating discoloration, and normal heat-cycling marks. Customers are responsible for shipping both to SPOOLOGIC and back, whether the claim is approved or denied. Labor, diagnostics, removal, reinstallation, towing, downtime, and other related expenses are not covered. See the SPOOLOGIC Warranty Policy for complete terms and claim procedures.
