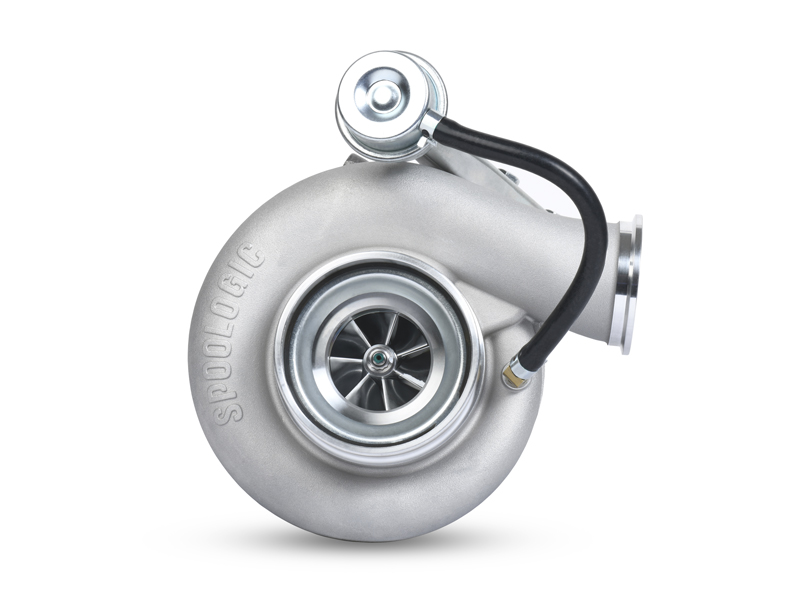

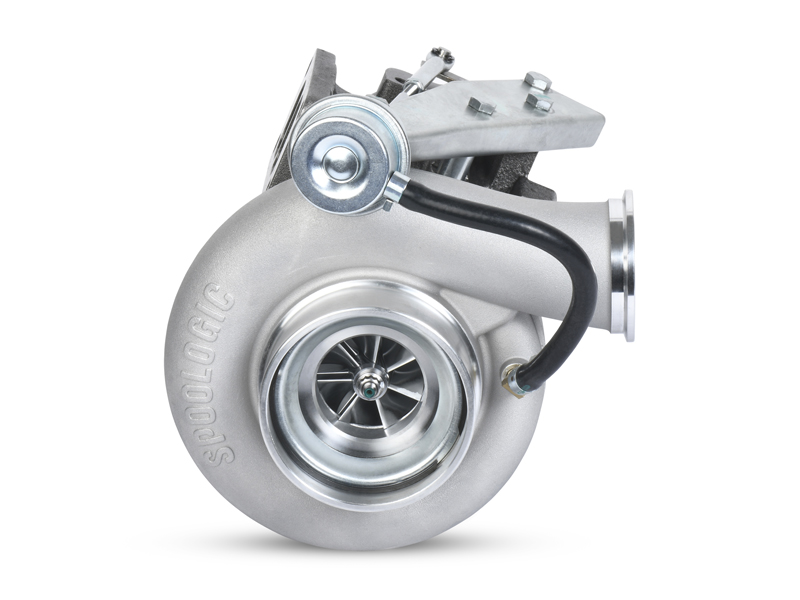

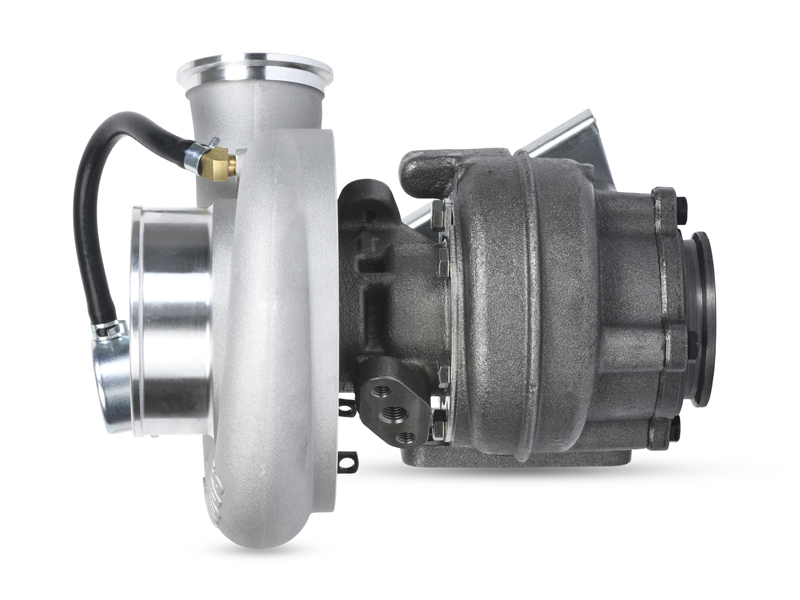

SPOOLOGIC Stock Plus Performance Turbocharger

The SPOOLOGIC SL-100-076 is a brand-new, direct-fit drop-in Stock Plus performance turbocharger for 1998.5–2002 Dodge Ram 2500 and 3500 pickup trucks equipped with the 5.9L Cummins 24-valve in the HX35 configuration. It combines a 52/83 mm billet aluminum compressor wheel with a 70/60 mm turbine, upgraded internal components, and a ceramic-coated turbine housing and center-section exterior. Designed for daily driving, towing, and work-truck use, it pairs the billet compressor upgrade with factory-calibration compatibility.

Features

• Brand new, no core charge
• Stock Plus performance turbocharger
• Direct drop-in fit using factory connections.
• 7+7 billet aluminum compressor wheel
• 12-blade turbine assembly
• Journal bearings, 360-degree thrust bearing, and step-gap seals
• Internally wastegated turbine housing
• Ceramic-coated turbine housing and center-section exterior
• High-speed VSR balancing

What's Included

• 1 SPOOLOGIC Turbocharger — SL-100-076
• 1 SPOOLOGIC Turbo Installation Gasket Kit — SL-310-071

Fitment

• 1998.5-2002 Dodge Ram 2500 3500 5.9L Cummins 24V

⚠️ HX35 Application — Verify Transmission and Turbo: This turbocharger uses the HX35 configuration. Confirm the original turbocharger and its connections, particularly on automatic-transmission trucks. For an OEM-style HY35W stock replacement in the listed 2000–2002 automatic application, see SL-100-075. If selecting an HX35 upgrade for a truck originally equipped with an HY35W, verify the installation requirements for that conversion.

Compare Stock SL-100-074 and Stage 1 SL-100-077 for other configurations. Confirm the individual product’s fitment and hardware requirements before selecting a turbocharger.

Tuning and Supporting Modifications

Tuning is optional and is not required to use this Stock Plus turbocharger.

Compressor Wheel

• Inducer diameter: 52 mm
• Exducer diameter: 83 mm
• Blade design: 7+7 splitter blade
• Compressor extended tip: N/A
• Compressor wheel material: 5-axis CNC-machined billet aluminum

Turbine Shaft

• Turbine inducer: 70 mm
• Turbine exducer: 60 mm
• Blade count: 12
• Turbine wheel material: High-nickel Inconel

Bearings, Seals, and Balancing

The SL-100-076 is assembled with upgraded internal components designed to support shaft stability, oil control, and consistent rotating-assembly operation.

• Extreme-duty journal bearings — Support the turbocharger shaft
• 360-degree thrust bearing — Axial-load support
• Step-gap seal rings — Improved sealing and oil control
• High-speed VSR balancing — Smooth, consistent operation

Wastegate Control

The listed Holset-style turbine housing uses an internal wastegate to regulate turbine flow.

• Configuration: Internally wastegated

Coatings and Finish Options

The turbine housing and center-section exterior are ceramic coated to help manage radiant heat and resist oxidation. Heat reduction varies with operating conditions.

OEM Cross-References

• Holset / Cummins: 3592766
• Holset / Cummins: 3592767
• Mopar: 5017509AA
• Mopar: R5017509AA

Use these numbers to identify the original application. Confirm the engine, model year, transmission where applicable, and turbocharger configuration before ordering.

⚠️ Emissions Notice

Not CARB approved. Not legal for sale or use in the state of California.

1-Year Limited Warranty

Every SPOOLOGIC turbocharger carries a one-year limited warranty against defects in materials and workmanship from the original purchase date. Coverage applies to the original purchaser with dated proof of purchase. Contact SPOOLOGIC for return authorization before shipping the turbocharger for inspection. If inspection confirms a covered defect, SPOOLOGIC will repair or replace the turbocharger at its discretion. Damage from foreign-object debris, oil starvation, contaminated or restricted oil flow, extended oil-change intervals, over-boosting, over-fueling, improper installation or tuning, operation beyond the intended range, or use outside the listed application is excluded, along with cosmetic wear, coating discoloration, and normal heat-cycling marks. Customers are responsible for shipping both to SPOOLOGIC and back, whether the claim is approved or denied. Labor, diagnostics, removal, reinstallation, towing, downtime, and other related expenses are not covered. See the SPOOLOGIC Warranty Policy for complete terms and claim procedures.
