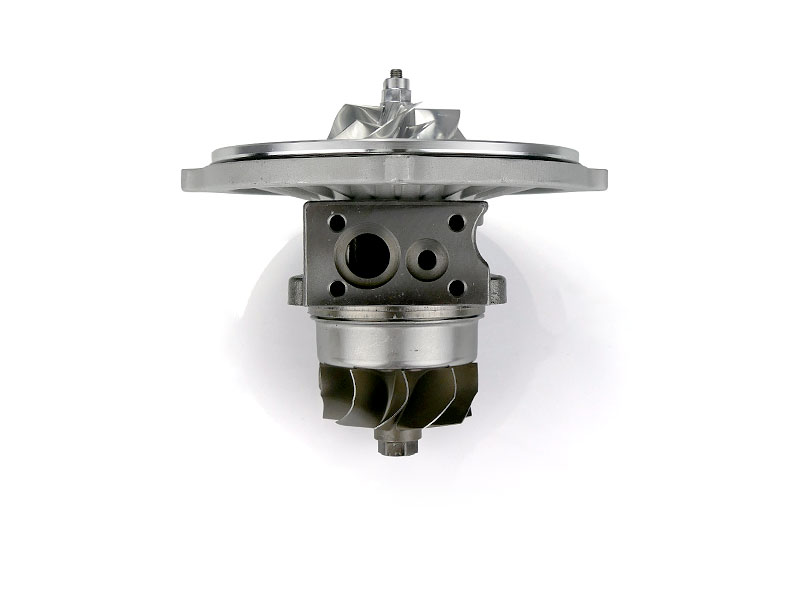

SPOOLOGIC Stock Turbo Cartridge CHRA

The SPOOLOGIC SL-200-002 is a brand-new, preassembled TP38 turbocharger cartridge with a billet compressor wheel. It fits 1994–1997 Ford F-250 F-350 trucks equipped with the 7.3L Powerstroke and the Garrett TP38 turbocharger. This CHRA combines a 5+5 5-axis CNC-machined billet aluminum compressor wheel, turbine shaft and wheel, upgraded journal bearings, a 360-degree thrust bearing, and step-gap seal rings. It arrives high-speed VSR balanced for installation into serviceable compressor and turbine housings, with O-rings and assembly bolts included. Also fits the Econoline models listed below when the original turbocharger and housing configuration match.

Features

• Brand-new, preassembled turbocharger cartridge
• 5+5 5-axis CNC-machined billet aluminum compressor wheel — SL-220-002
• Turbine shaft and wheel installed in the assembled center housing
• Extreme-duty journal bearings and bearing spacer
• 360-degree thrust bearing and thrust collars
• Step-gap seal rings at the compressor and turbine ends
• High-speed VSR-balanced rotating assembly
• Four pedestal O-rings, one compressor housing outlet O-ring, and eleven M8 12-point bolts included
• Built new, never remanufactured

What's Included

• 1 SPOOLOGIC CHRA Cartridge — SL-200-002

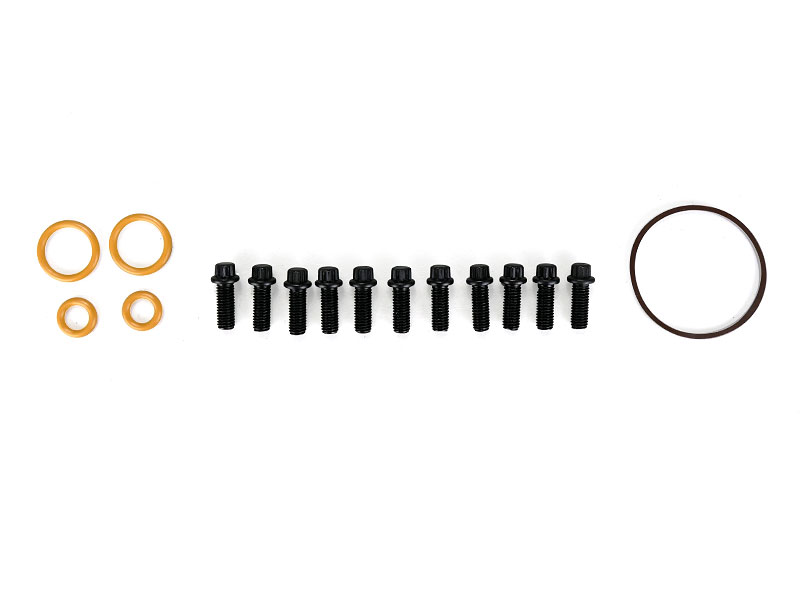

• 4 yellow turbo pedestal O-rings
• 1 compressor housing outlet O-ring
• 11 M8 12-Point Housing Bolts

Fitment

• 1994-1997 Ford F-250 F-350 F-Super Duty 7.3L Powerstroke
• 1995-1998 Ford E-350 Econoline 7.3L Powerstroke
• 1996-1998 Ford E-Super Duty Econoline 7.3L Powerstroke
• Econoline applications built through January 5, 1998

⚠️ Cartridge Only — Reuse Your Turbo Housings

This product includes the assembled turbocharger center section and the installation items listed below. Reuse the original TP38 compressor and turbine housings; the outer housings and turbo pedestal are not included. Inspect the housings for cracks, wheel-contact damage, and other defects before reuse. Confirm the original turbo is the 1994–1997 OBS TP38 configuration.

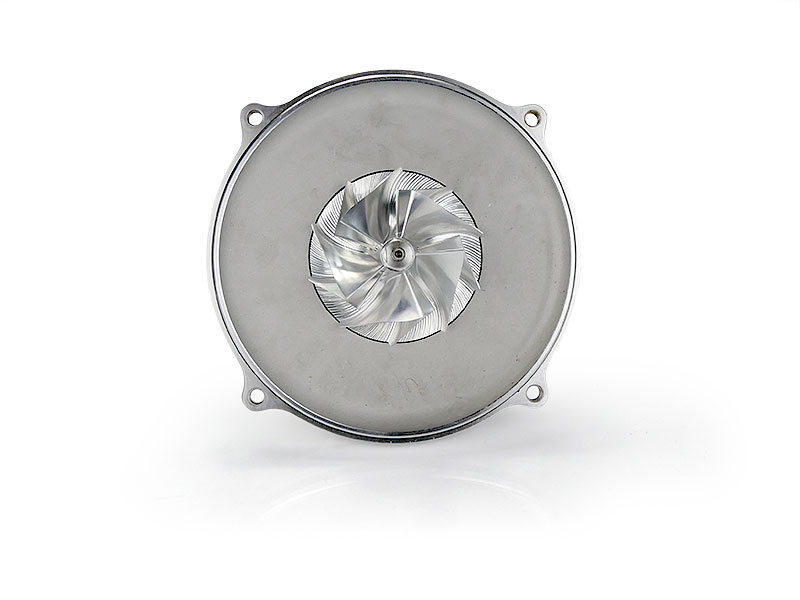

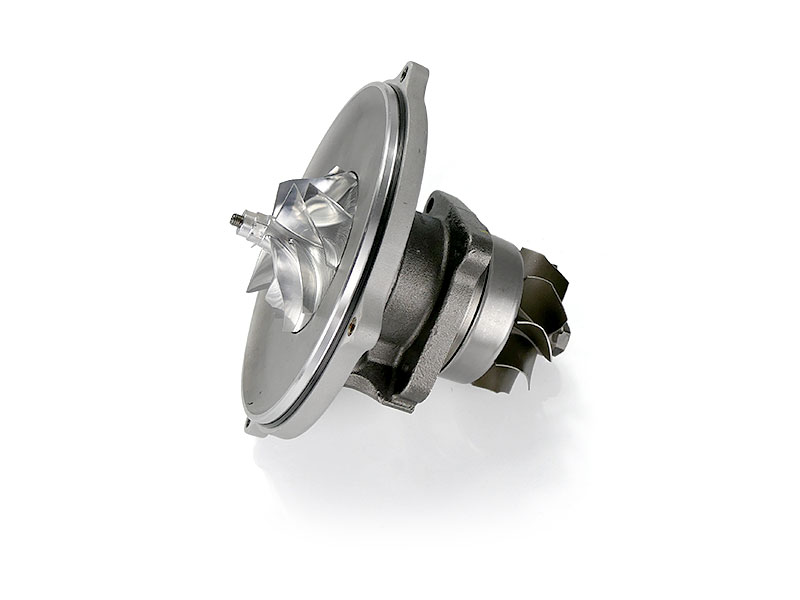

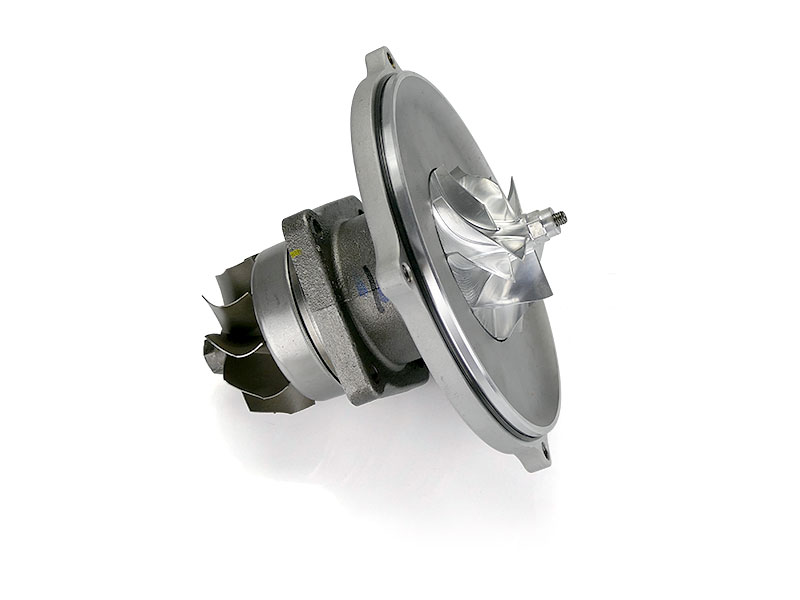

5+5 Billet Compressor Wheel

The cartridge uses the SPOOLOGIC SL-220-002 compressor wheel in the TP38 turbocharger.

• Compressor wheel: SL-220-002
• Blade design: 5+5
• Compressor inducer: 60 mm
• Compressor exducer: 80 mm
• Extended-tip diameter: 84 mm
• Material: 5-axis CNC-machined billet aluminum
• Installation: Supplied installed as part of the balanced CHRA

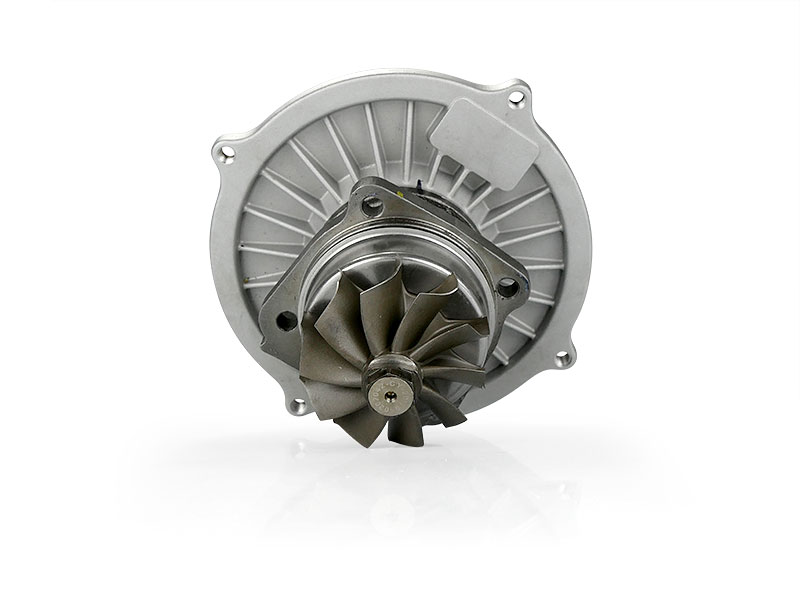

Turbine Shaft

The turbine wheel and shaft form a single rotating unit.

• Turbine inducer: 76 mm
• Turbine exducer: 70 mm
• Turbine blade count: 10
• Turbine wheel: High-nickel Inconel

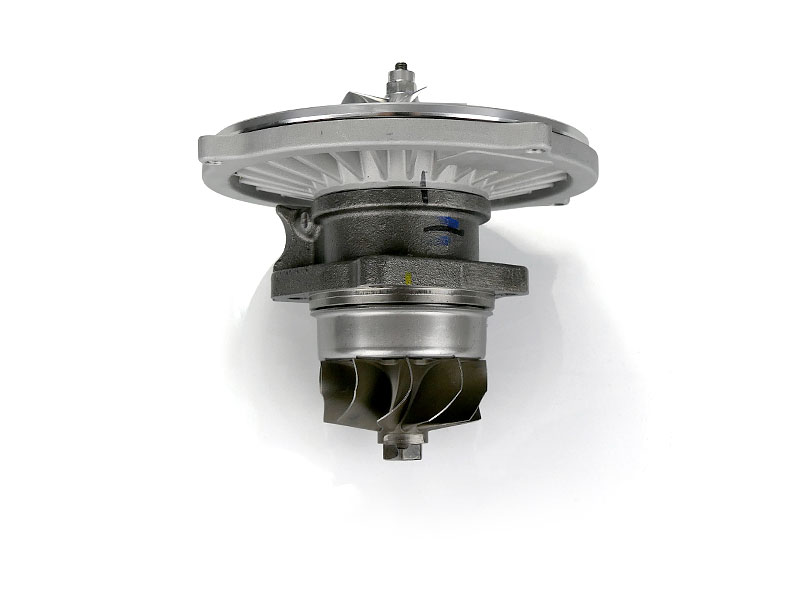

Upgraded Internals — Standard

The SL-200-002 is assembled with upgraded internal components designed to support shaft stability, axial loads, and oil control.

• Extreme-duty journal bearings and spacer: Support the turbocharger shaft and its lubricating oil film
• 360-degree thrust bearing and collars: Provide full-circle thrust-bearing support for axial shaft loads
• Step-gap seal rings: Installed at the compressor and turbine ends to help control oil leakage

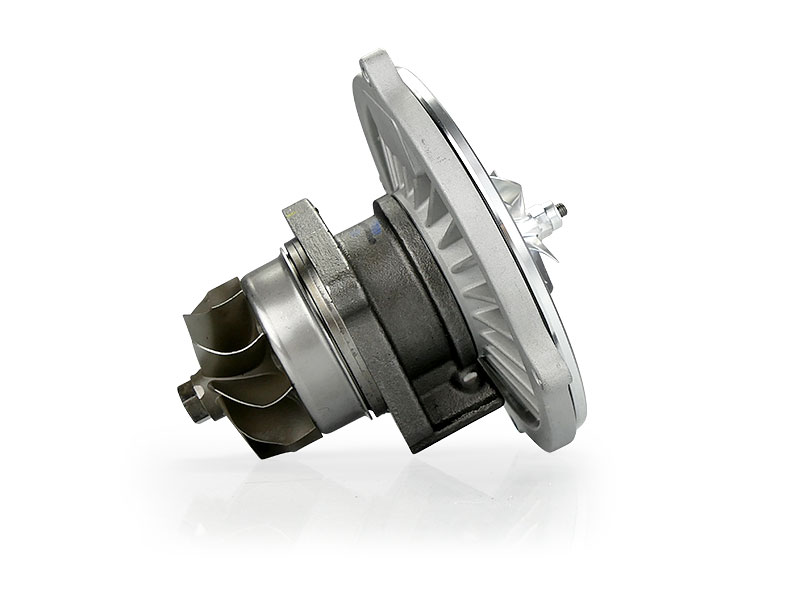

High-Speed VSR Balancing

The complete CHRA—including the compressor wheel, turbine shaft, bearings, thrust components, and seals—is assembled in the SPOOLOGIC center housing and high-speed VSR balanced before shipment. Keep the compressor wheel, shaft, and rotating components assembled during installation to preserve that balance. The supplied CHRA does not require an internal rebuild before installation; the outer housings still require inspection, correct alignment, and proper assembly.

Installation Notes

• Match the cartridge to the original TP38 turbocharger and housing configuration before disassembly. Engine size or model year alone does not establish cartridge compatibility.
• Inspect the compressor and turbine housings, mounting surfaces, and oil passages. A new cartridge does not repair damaged outer housings or correct an unresolved oil-supply problem.
• Follow the applicable service procedures for cleaning, housing alignment and clocking, bolt tightening, oil-system preparation, and initial startup.
• Do not loosen the compressor-wheel nut or separate the rotating assembly during housing installation. Verify free wheel rotation and check for oil, intake, and exhaust leaks before returning the vehicle to service.

Turbo Applications

Billet-wheel upgrade cartridge for the factory Garrett TP38 turbocharger. Also fits the SPOOLOGIC Stock Plus Turbocharger — SL-100-002.

For a factory-style cast-wheel replacement, see the SPOOLOGIC Stock CHRA Cartridge — SL-200-001.

OEM and Manufacturer References

These numbers identify complete turbochargers associated with the listed application. Use them to help identify the original turbo; the product sold here is the CHRA cartridge and listed installation hardware.

• Garrett: 466057-5005
• Ford: F4TZ-6VK682-CARM / F4TZ6VK682CARM
• Motorcraft: TC-2-RM / TC2RM

⚠️ Emissions Notice

Not CARB approved. Not legal for sale or use in the state of California.

⚠️ DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC turbocharger repair product is intended for experienced turbo builders and qualified technicians. Proper installation requires suitable tools, careful inspection, and correct assembly. All sales are final—no warranty, returns, or exchanges. Confirm compatibility before ordering. See the SPOOLOGIC Warranty Policy for details on products sold without a warranty.
