The SPOOLOGIC Intake Manifold Spider SL-430-001 is a brand new, direct bolt-on intake manifold base for 1999.5-2003 Ford F-250, F-350, F-450, and F-550 Super Duty trucks and 2000-2003 Ford Excursions with the 7.3L Powerstroke. Engineered as the foundation of a complete intake upgrade — paired with the SPOOLOGIC SL-430-002 Intake Plenums, it forms a high-flow, color-matched intake system that outflows the factory unit by 18%.

The factory intake spider is a low-flow restriction point in an otherwise capable engine. SPOOLOGIC redesigned it from the ground up using MDV — Multi-Directional Vane technology to straighten and accelerate intake charge flow through the manifold, getting more air to each cylinder with less turbulence. The result: faster turbo spool, lower EGTs, improved fuel economy, and a meaningful boost in throttle response across the rev range.

Features

• Direct bolt-on replacement for 1999.5-2003 7.3L Super Duty trucks and 2000-2003 Excursions
• Cast A356-T6 aerospace-grade heat-treated aluminum
• MDV Multi-Directional Vane technology — increases intake velocity and improves cylinder distribution
• Outflows the factory spider by 18%
• Faster turbo spool, lower EGTs, improved fuel economy, sharper throttle response
• Four 1/8" NPT ports pre-installed — ready for nitrous, gauges, EGT/IAT probes, or methanol injection
• Available in Raw, Black, or Red to color-match the SPOOLOGIC plenums, intercooler pipes, and turbo
• All hardware and brackets included — complete bolt-on install, no modifications
• Backed by a 1-year limited warranty

Cast A356-T6 Aluminum Construction

The spider is cast from A356-T6 aluminum — a heat-treated aerospace-grade alloy chosen for its strength-to-weight ratio, dimensional stability under thermal cycling, and excellent machinability. The casting is significantly lighter than the factory unit and dissipates heat faster than the OEM material, helping keep intake charge temperatures lower under sustained boost.

MDV Multi-Directional Vane Technology

Internal vanes are cast directly into the spider geometry to direct and accelerate intake air flow at every junction. Instead of the chaotic, turbulent flow path of the factory design, MDV technology gives air a clean, directional route through the manifold — increasing velocity at each cylinder port and improving cylinder-to-cylinder distribution. The published flow improvement over the factory spider is 18%, which translates directly to:

• Faster turbo spool — more air through the intake means the turbo reaches target boost sooner
• Lower EGTs — better-distributed, higher-velocity intake charge supports more complete combustion under load
• Improved fuel economy — more efficient cylinder filling reduces the work the engine does to move air
• Sharper throttle response — less flow restriction means the engine reacts more immediately to pedal input

Four 1/8" NPT Ports Pre-Installed

The spider comes with four 1/8" NPT ports machined into the casting, threaded and ready to use. No drilling, no tapping — just plumb in whatever you need: nitrous nozzles, boost reference for a gauge, EGT/IAT probe bungs, or methanol/water injection lines. The ports are positioned for clean access and come capped from the factory if you don't need them yet.

Color-Matched Finish Options

SL-430-001 is available in Raw, Black, and Red — matching the finish options on the SL-430-002 Plenums, SL-410-001 Intercooler Pipe Kit, and the SL-100-007 / SL-100-009 turbo compressor housings. Build out a fully color-matched intake side from the turbo to the cylinder heads.

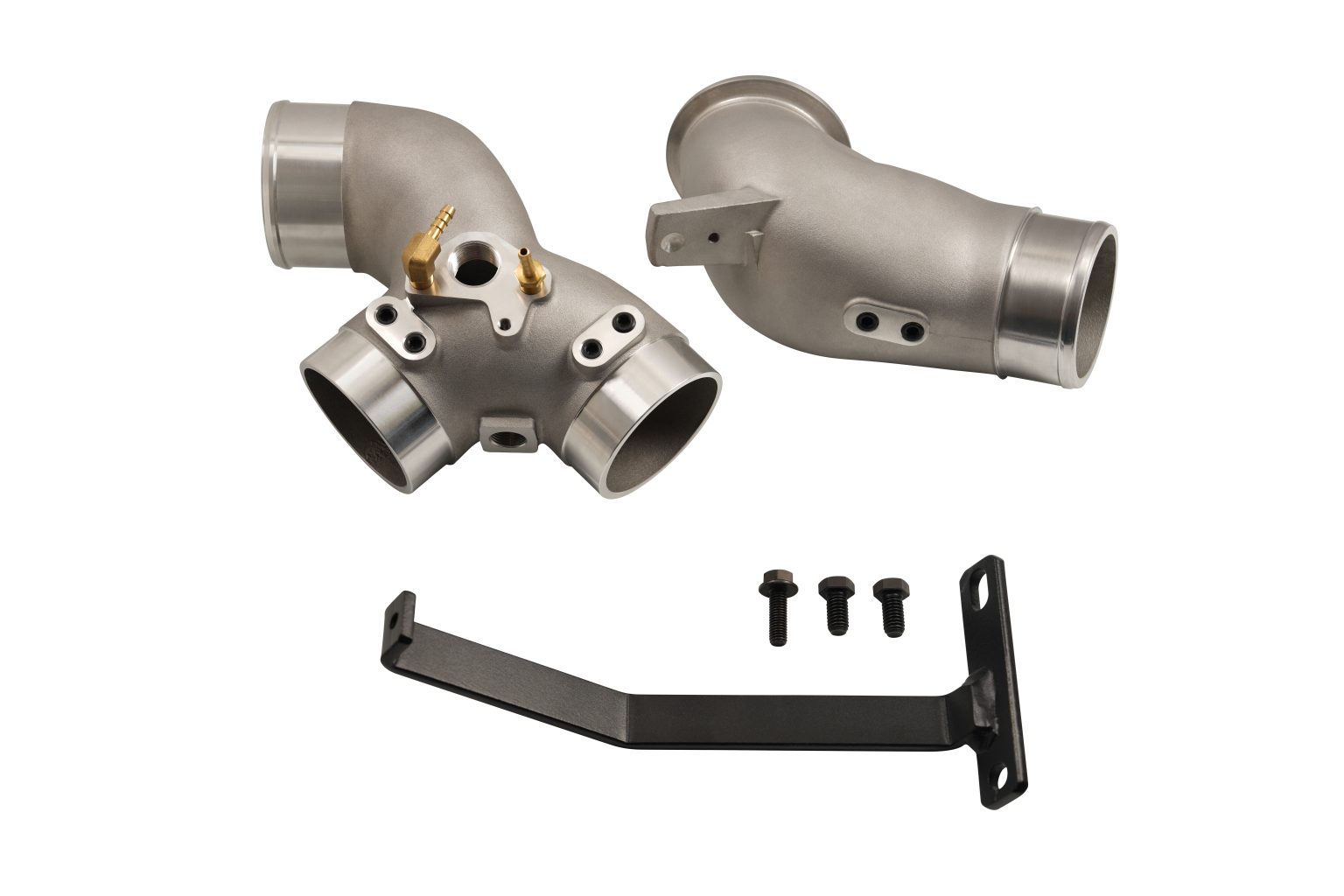

• Raw — Uncoated cast aluminum

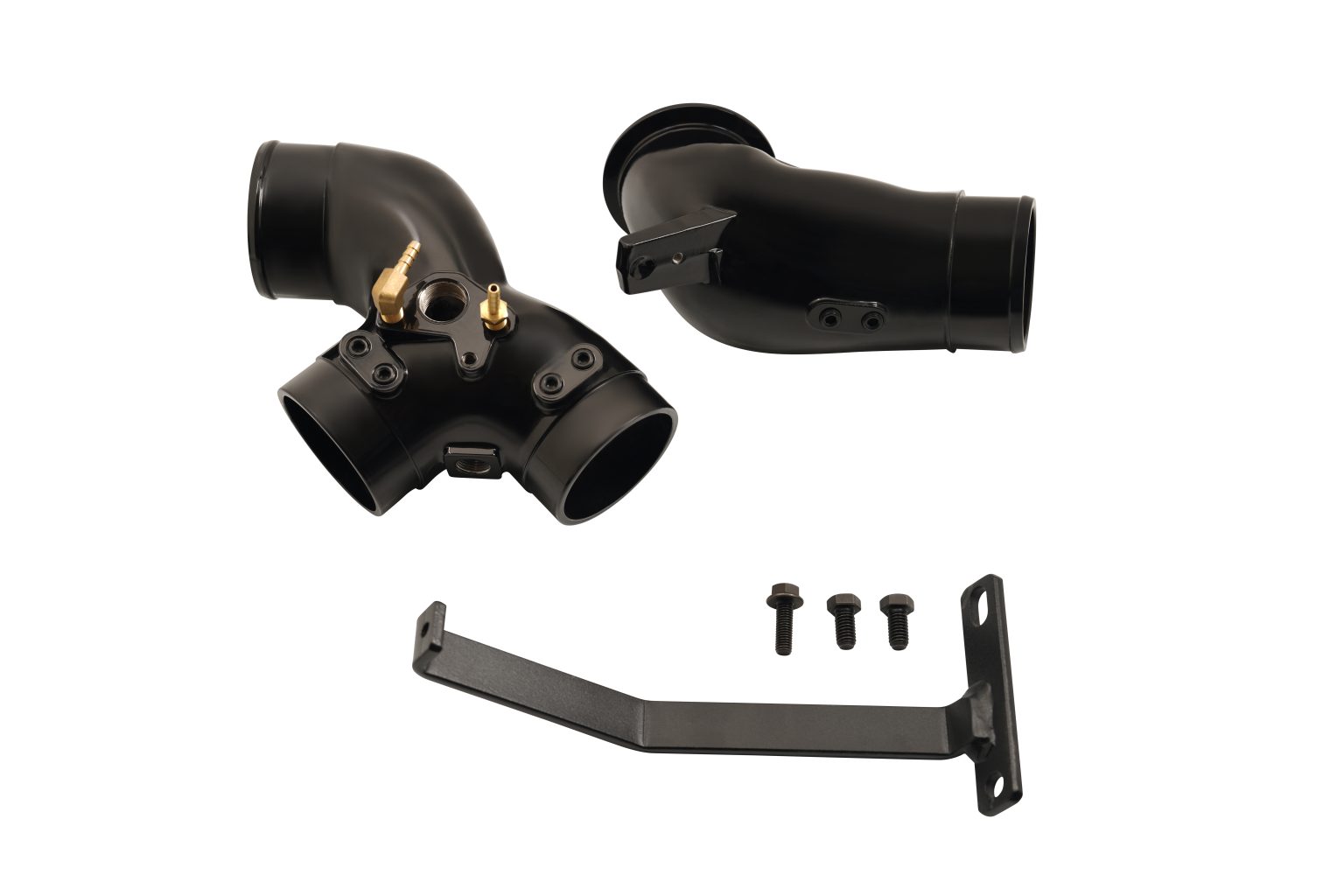

• Black — Powder coated, blacked-out look

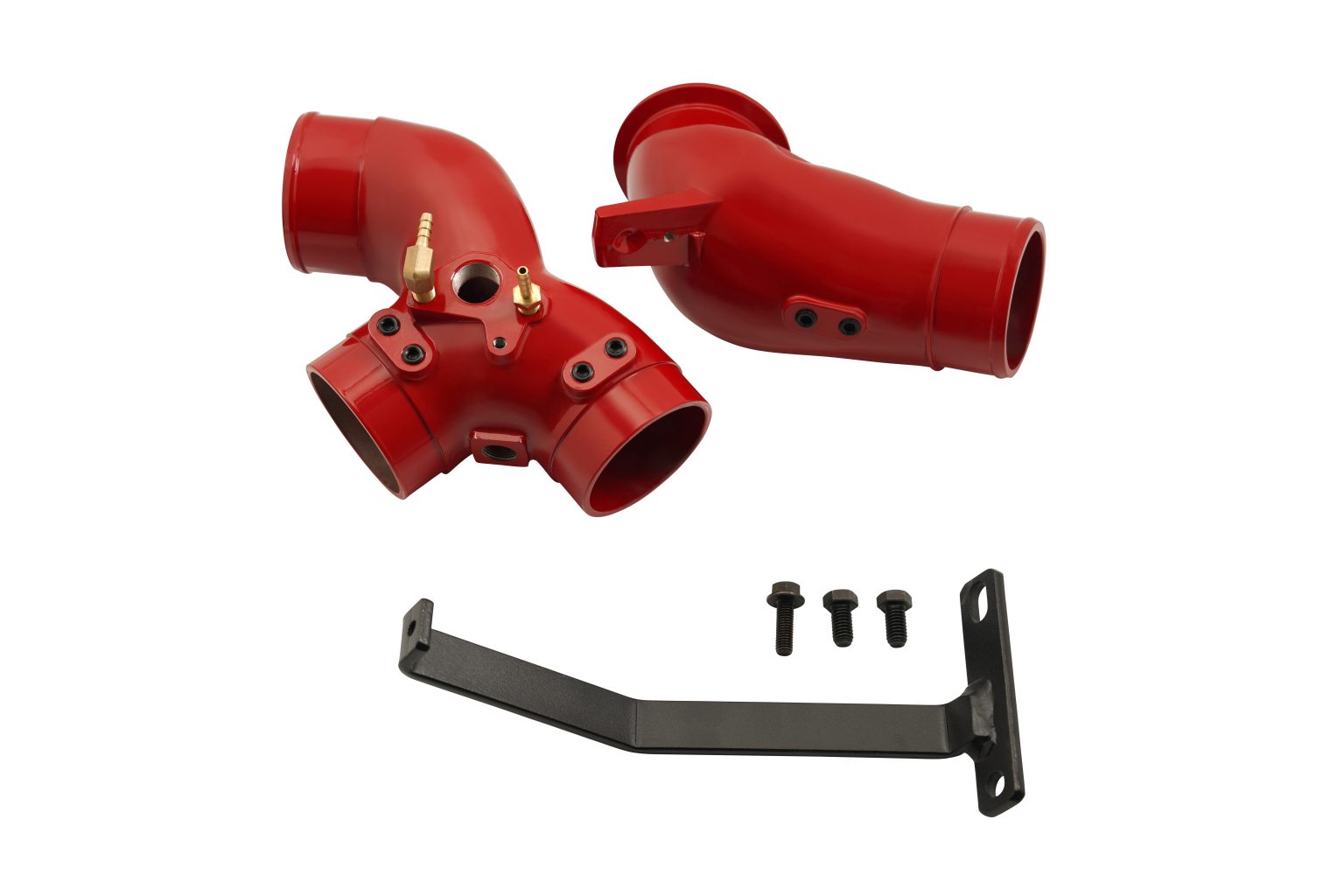

• Red — Bold powder coated finish

What's Included

• SPOOLOGIC Intake Manifold Spider — cast A356-T6 aluminum
• Four 1/8" NPT ports — pre-installed and capped
• All mounting hardware and brackets for a complete bolt-on install

Sold individually. For a complete intake upgrade, pair with the SL-430-002 SPOOLOGIC Intake Manifold Plenums.

Fits 1999.5-2003 7.3L Powerstroke

• 1999.5 – 2003 Ford F-250 / F-350 / F-450 / F-550 Super Duty 7.3L Powerstroke
• 2000 – 2003 Ford Excursion 7.3L Powerstroke

1-Year Limited Warranty

This SPOOLOGIC intake manifold spider is backed by a 1-year limited warranty against manufacturing defects. Warranty covers replacement of the part only and does not cover labor, consequential damages, or failures caused by improper installation.
