SPOOLOGIC Turbo Rebuild Kit Cast Wheel Turbine Shaft Wastegate Actuator

The SPOOLOGIC Advanced Turbo Rebuild Kit SL-900-020-K04 is a bundled, complete rebuild package for 2001-2004 Chevrolet Silverado GMC Sierra 2500 3500 6.6L Duramax LB7 IHI RHG6 applications. It combines a SPOOLOGIC base rebuild kit with a new cast compressor wheel, turbine shaft and wastegate actuator, so you have everything needed to restore the turbo to factory performance in one box.

Features

• Cast compressor wheel
• Turbine Shaft
• Extreme duty journal bearings
• 360° thrust bearing and collars

What's Included

• 1 SPOOLOGIC Basic Turbo Rebuild Kit — SL-210-020

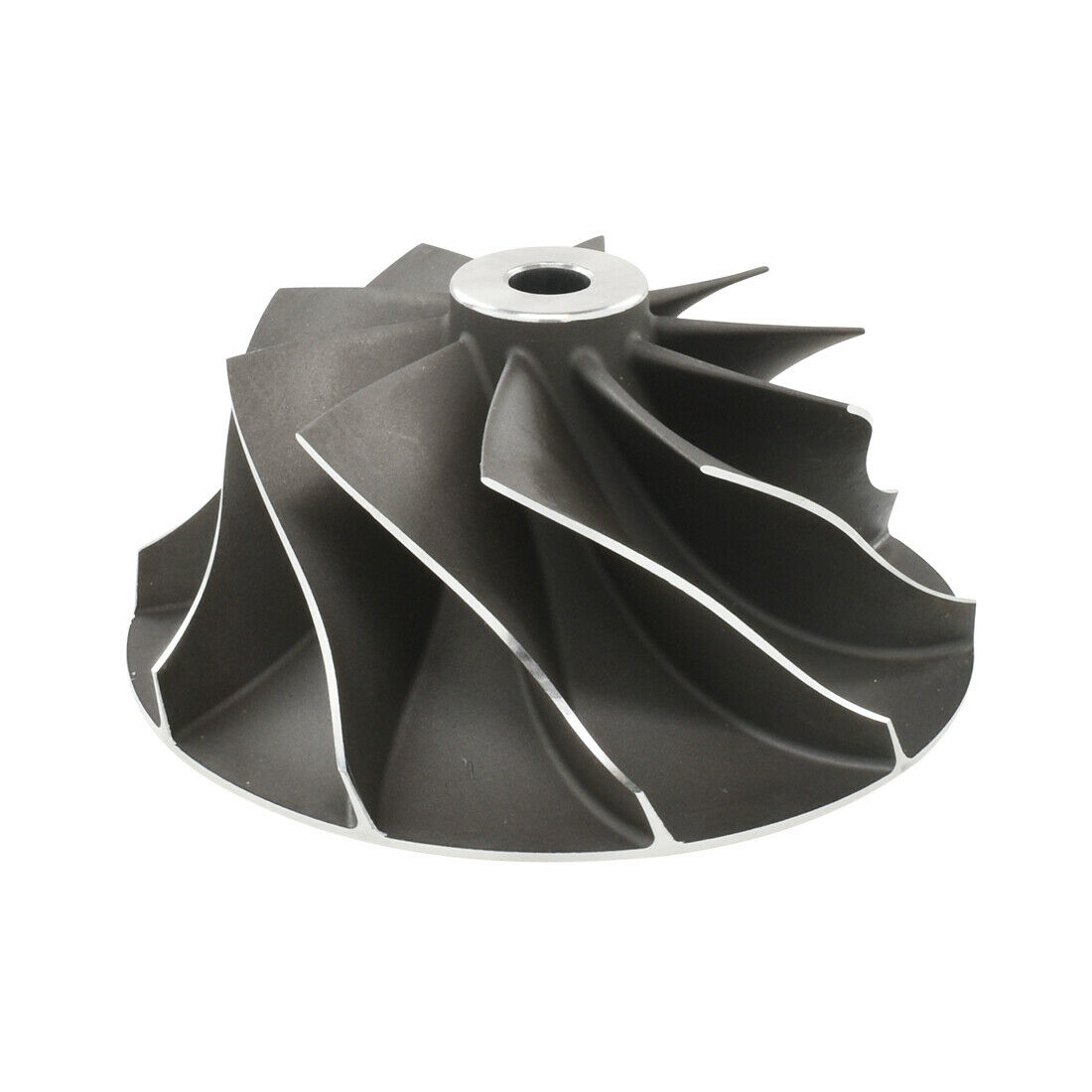

• 1 SPOOLOGIC 11 Blade Cast Compressor Wheel — SL-220-051
• 1 SPOOLOGIC Turbine Shaft — SL-240-020
• 1 SPOOLOGIC Wastegate Actuator — SL-260-020

Fitment

• 2001-2004 Chevrolet Silverado GMC Sierra 2500 3500 6.6L Duramax LB7

2004 trucks: LB7 application; verify the engine code.

Common IHI RHG6 Failure Symptoms

If your 6.6L LB7 Duramax turbo is showing any of these symptoms, a full rebuild is recommended:

• Wastegate actuator drift or stuck operation — overboost or underboost, inconsistent boost between runs
• Excessive shaft play or oil seal leakage — blue smoke at idle, oil residue in the intercooler piping, end-play beyond OEM tolerance
• Bearing failure — whining, grinding, or whistling that scales with RPM
• Loss of boost and reduced power — turbo not holding rated boost, sluggish acceleration, excess EGT

Advanced Rebuild Kit — Everything in One Box

This package supplies the rebuild components listed in What’s Included for the IHI RHG6 turbocharger.

Balancing Notes

The compressor wheel and turbine shaft are individually balanced. Balancing the assembled rotating assembly is recommended best practice.

OEM and Manufacturer References

Reference numbers associated with this turbocharger platform and its repair components:

• OEM cross-reference: 97188685, 97192618, 97192619, 97254688

⚠️ DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC turbocharger repair product is intended for experienced turbo builders and qualified technicians. Proper installation requires suitable tools, careful inspection, and correct assembly. All sales are final—no warranty, returns, or exchanges. Confirm compatibility before ordering. See the SPOOLOGIC Warranty Policy for details on products sold without a warranty.
