SPOOLOGIC Turbo Rebuild Kit Cast Wheel Turbine Shaft Wastegate Actuator

The SPOOLOGIC Advanced Turbo Rebuild Kit SL-900-002-K08 is a bundled, complete rebuild package for 1999.5-2003 Ford F-250 F-350 F-450 F-550 Super Duty 7.3L Powerstroke; 2000-2003 Ford Excursion 7.3L Powerstroke Garrett GTP38 applications. It combines a SPOOLOGIC base rebuild kit with a new cast compressor wheel, turbine shaft and wastegate actuator, so you have everything needed to restore the turbo to factory performance in one box.

Features

• Cast compressor wheel
• Turbine Shaft
• Extreme duty journal bearings and spacer
• 360° thrust bearing and collars

What's Included

• 1 SPOOLOGIC Basic Turbo Rebuild Kit — SL-210-002
• 1 SPOOLOGIC 5+5 Cast Compressor Wheel — SL-220-001
• 1 SPOOLOGIC Turbine Shaft — SL-240-002

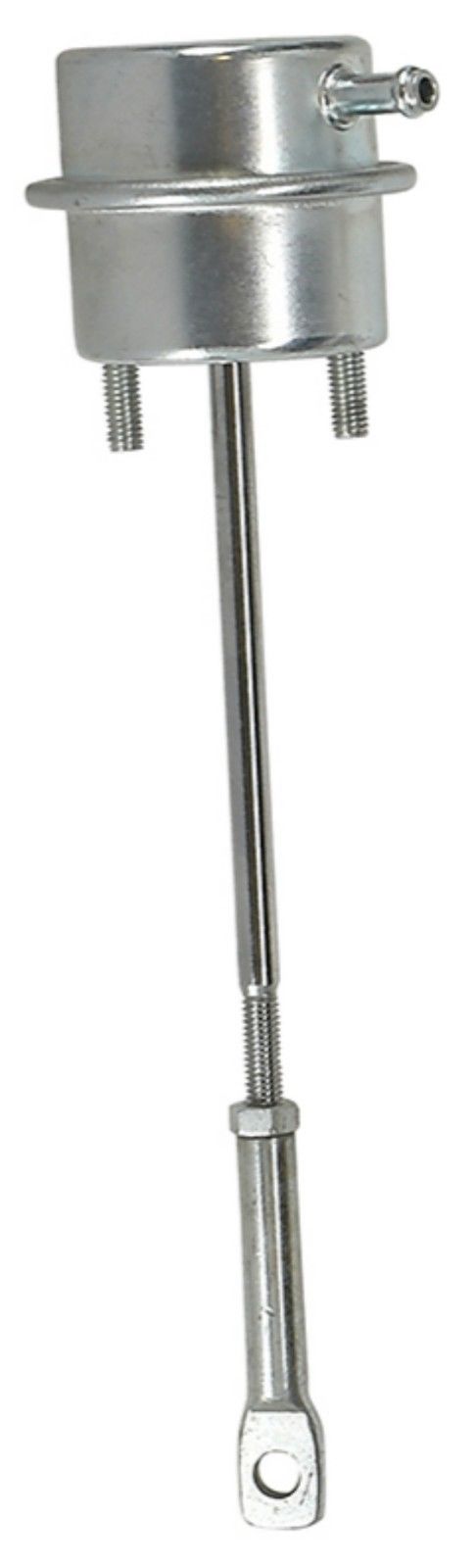

• 1 SPOOLOGIC Stock Wastegate Actuator — SL-260-002

Fitment

• 1999.5-2003 Ford F-250 F-350 F-450 F-550 7.3L Powerstroke
• 2000-2003 Ford Excursion 7.3L Powerstroke

1999 Super Duty: Engine built December 8, 1998 or later.

Common Garrett GTP38 Failure Symptoms

If your 7.3L Powerstroke turbo is showing any of these symptoms, a full rebuild is recommended:

• Wastegate actuator drift or stuck operation — overboost or underboost, inconsistent boost between runs
• Excessive shaft play or oil seal leakage — blue smoke at idle, oil residue in the intercooler piping, end-play beyond OEM tolerance
• Bearing failure — whining, grinding, or whistling that scales with RPM
• Loss of boost and reduced power — turbo not holding rated boost, sluggish acceleration, excess EGT

Advanced Rebuild Kit — Everything in One Box

This package supplies the rebuild components listed in What’s Included for the Garrett GTP38 turbocharger.

Balancing Notes

The compressor wheel and turbine shaft are individually balanced. Balancing the assembled rotating assembly is recommended best practice.

OEM and Manufacturer References

Reference numbers associated with this turbocharger platform and its repair components:

• Ford OEM: F4TZ-6N653-A, F4TZ-6N653-B, F4TZ6N653A, F4TZ6N653B, F81Z-6F089-BA, F81Z-9E436-AA, F81Z6F089BA, F81Z9E436AA
• Garrett: 445604-0601, 452603-0022, 703697-0001, 740659-0008

⚠️ DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC turbocharger repair product is intended for experienced turbo builders and qualified technicians. Proper installation requires suitable tools, careful inspection, and correct assembly. All sales are final—no warranty, returns, or exchanges. Confirm compatibility before ordering. See the SPOOLOGIC Warranty Policy for details on products sold without a warranty.
