SPOOLOGIC Turbo Rebuild Kit Billet Wheel Turbine Shaft

The SPOOLOGIC Advanced Turbo Rebuild Kit SL-900-042-K12 is a bundled, complete rebuild package for 2003-2004 Dodge Ram 2500 3500 5.9L Cummins; 2004 trucks built through January 4, 2004 Holset HY35W applications. It combines a SPOOLOGIC base rebuild kit with a new billet compressor wheel, turbine shaft, so you have everything needed to restore the turbo to factory performance in one box.

Features

• Billet compressor wheel
• Turbine Shaft
• Extreme duty journal bearings and spacer
• 360° thrust bearing and collars

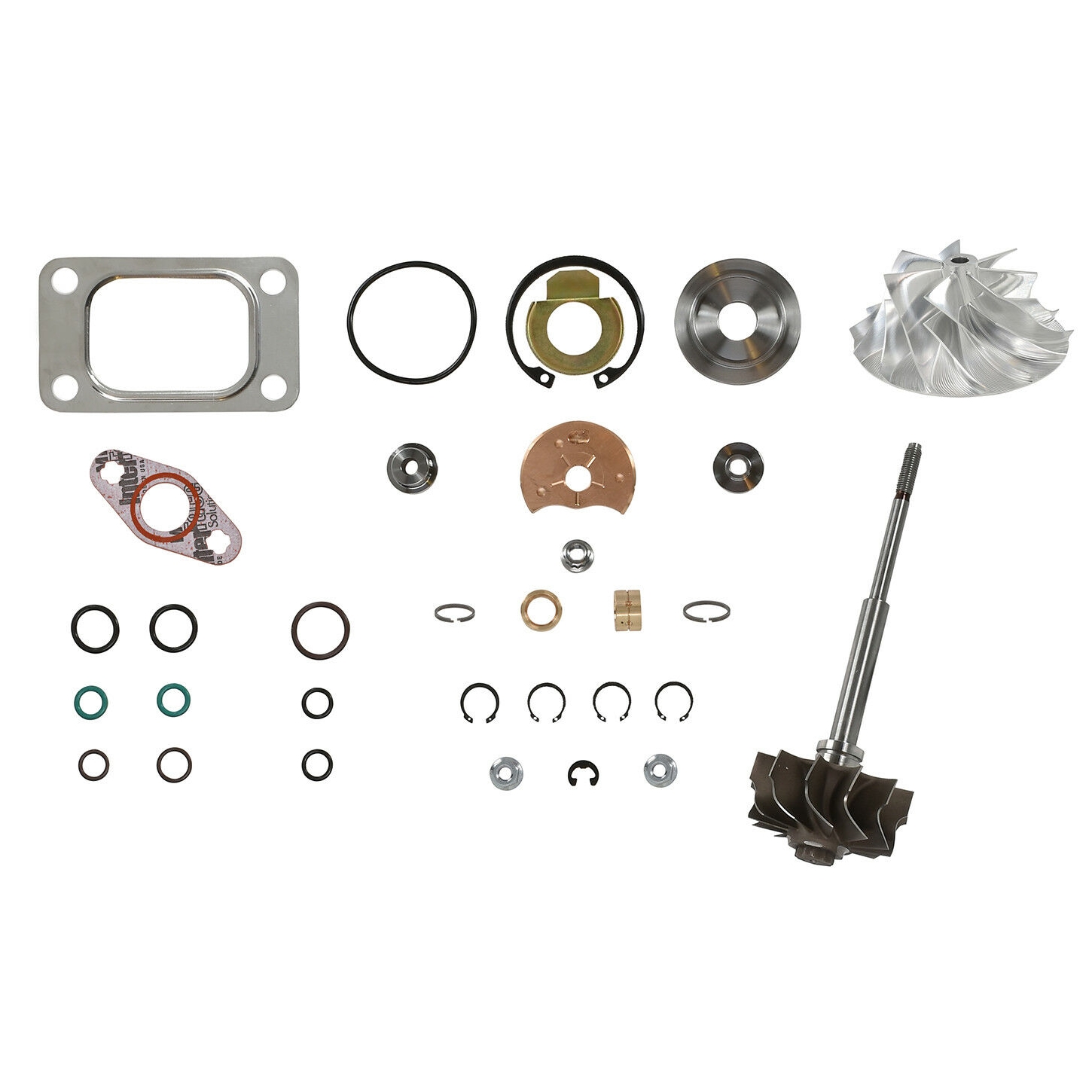

What's Included

• 1 SPOOLOGIC Basic Turbo Rebuild Kit — SL-210-042
• 1 SPOOLOGIC 7+7 Billet Compressor Wheel — SL-220-077
• 1 SPOOLOGIC Turbine Shaft — SL-240-040

Fitment

• 2003-2004 Dodge Ram 2500 3500 5.9L Cummins
• 2004 trucks built through January 4, 2004

Common Holset HY35W Failure Symptoms

If your 5.9L 24v Cummins turbo is showing any of these symptoms, a full rebuild is recommended:

• Wastegate actuator drift or stuck operation — overboost or underboost, inconsistent boost between runs
• Excessive shaft play or oil seal leakage — blue smoke at idle, oil residue in the intercooler piping, end-play beyond OEM tolerance
• Bearing failure — whining, grinding, or whistling that scales with RPM
• Loss of boost and reduced power — turbo not holding rated boost, sluggish acceleration, excess EGT

Advanced Rebuild Kit — Everything in One Box

This package supplies the rebuild components listed in What’s Included for the Holset HY35W turbocharger.

Balancing Notes

The compressor wheel and turbine shaft are individually balanced. Balancing the assembled rotating assembly is recommended best practice.

⚠️ Emissions Notice

Not CARB approved. Not legal for sale or use in the state of California.

⚠️ DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC turbocharger repair product is intended for experienced turbo builders and qualified technicians. Proper installation requires suitable tools, careful inspection, and correct assembly. All sales are final—no warranty, returns, or exchanges. Confirm compatibility before ordering. See the SPOOLOGIC Warranty Policy for details on products sold without a warranty.
