The SPOOLOGIC Turbine Housing Rebuild Kit SL-250-009 is a 2003-style turbine housing, 10-blade Inconel turbine shaft (72.5mm inducer × 66.4mm exducer), and 15mm vane conversion kit for 2004-2010 6.0L Powerstroke applications. The 2003 GT3782VA turbine setup is the most desirable variant of the 6.0L VGT — bigger turbine wheel exducer, wider 15mm vanes, less prone to sticking, more flow at the top end, and a cleaner-spooling drive pressure curve than the 04.5+ 13.2mm vane setup. This kit drops that 2003 configuration straight into an 04.5-07 truck with no housing machining required.

Why the 2003-Style Turbine Setup Is the Most Desirable on the 6.0L

Ford built the 6.0L GT3782VA in two variants. The original 2003 model year used a turbine housing with a straight non-stepped shaft journal bore, a 66.4mm exducer turbine wheel, and 15mm-wide variable vanes. Starting with the 04.5 build date Ford switched to a stepped shaft journal, a smaller 64mm exducer wheel, and narrower 13.2mm vanes. The 04.5+ setup spools a touch quicker but the narrower vanes are far more prone to sticking from soot and EGR carbon buildup, the smaller wheel chokes at higher boost levels, and the stepped journal complicates rebuilds. The 2003 setup is what most experienced 6.0L builders want back — bigger wheel and bigger vanes flow more, resist carbon sticking, and the straight journal makes the assembly cleaner to rebuild.

2003 Turbine Wheel Specs vs the 04.5-07 Truck Wheel

The 2003 turbine wheel measures 72.5mm at the inducer and 66.4mm at the exducer with a 16.1mm tip height — cast in Inconel 713C nickel-chromium superalloy and friction-welded to an alloy steel shaft. Starting in 04.5 Ford kept the same 72.5mm inducer but dropped the exducer down to 64mm. That 2.4mm of exducer diameter translates to roughly 7% more turbine wheel exducer area on the 2003 wheel — real flow capacity that the 04.5-07 wheel does not have. Combined with the 15mm vanes opening up the nozzle area, the 2003 turbine setup flows significantly more exhaust at the same drive pressure than the later 13.2mm + 64mm exducer setup.

The Conversion Without the Machine Shop

The usual way to put a 2003 turbine shaft into an 04.5-07 truck is to buy the 2003 shaft on its own and then send the truck's turbine housing out to a machine shop to have the journal bore re-cut to fit the straight 2003 shaft. That is a machining bill, shipping both ways, and a turbo down for a week or more. SL-250-009 skips that entirely. The housing in the kit is already the 2003-style straight-bore casting — it accepts the included 2003-style shaft directly, no machining, no waiting on a machine shop. The customer rebuilds the CHRA per normal service procedure with the included shaft and vanes, then bolts this housing on. Drop-in replacement on any 04.5-07 6.0L GT3782VA application.

Performance Benefits of the 2003 Turbine Conversion

The 2003-style turbine setup is a real upgrade even on a stock truck and a bigger one on a tuned or fueled 6.0L:

• 66.4mm exducer turbine wheel — roughly 7% more wheel exducer area than the 04.5-07 64mm wheel
• 15mm vanes — wider vane face flows more exhaust at the same vane angle than the 13.2mm vanes, lowering drive pressure and EGT under load
• Less prone to vane sticking — the wider 15mm vanes resist soot and EGR carbon buildup that locks up narrow vanes and trips boost codes
• Cleaner spool and flow on a tuned truck — the 2003 turbine matches added fuel better than the 13.2mm setup does
• Healthier drive-to-boost ratio under sustained tow load — lower drive pressure means less backpressure trying to push exhaust out of the cylinders
• Better top-end pull when the 13.2mm setup would be choking
• Cleaner long-term reliability — the wider vanes do not gum up the way the 13.2mm vanes do on EGR-equipped 6.0Ls

What Gets Installed

This is a CHRA-out job, not a bolt-on housing swap. The turbo has to come off the engine and be disassembled to install the new turbine shaft into the center section. Once the CHRA is rebuilt with the included 2003-style shaft and the 15mm vanes are dropped into the customer's unison ring and vane carrier, the new turbine housing in this kit bolts on as a direct replacement — no clocking changes, no machining, no modifications to the truck or to any other turbo parts.

Features

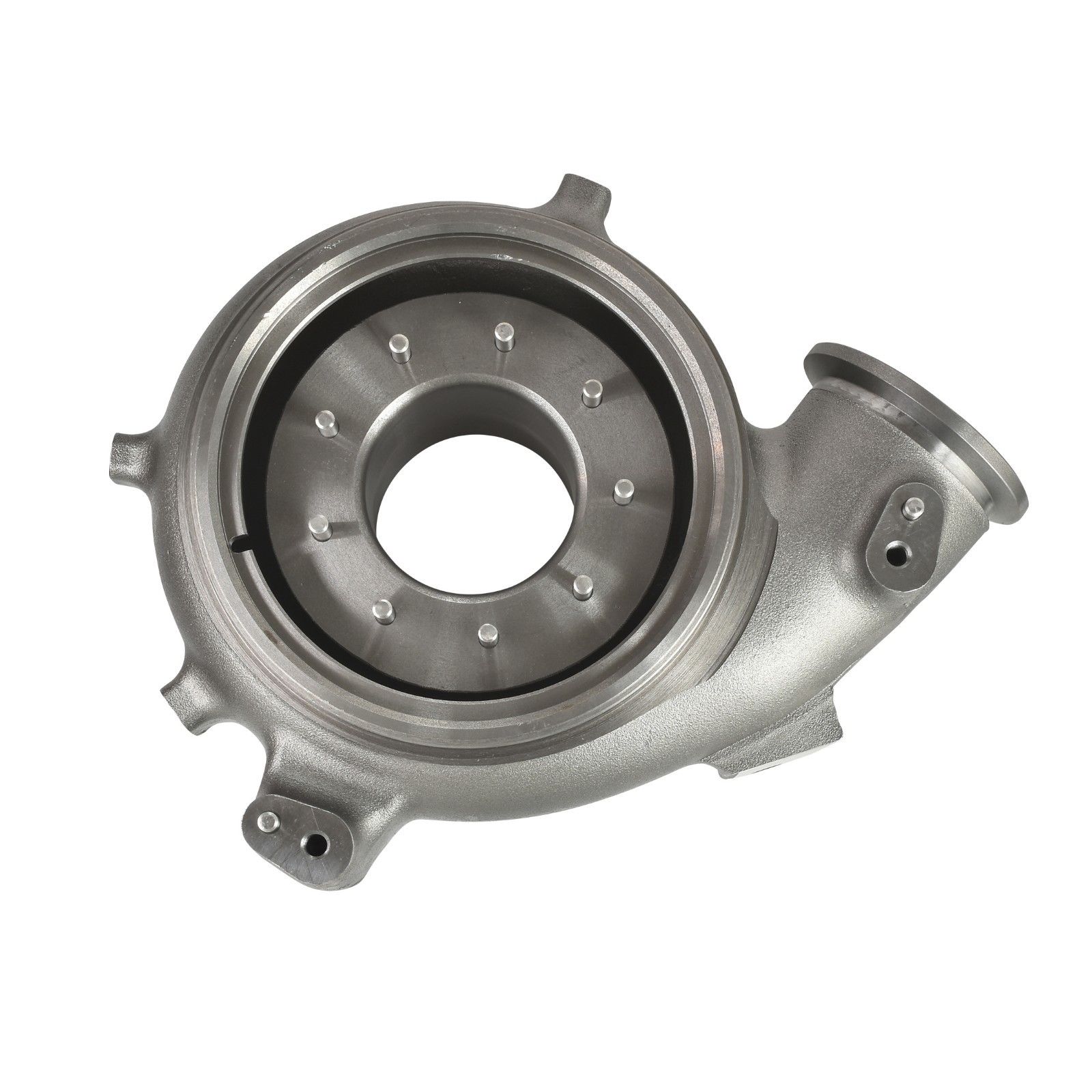

• 2003-style straight-journal turbine housing — accepts the included 2003-style shaft with no machining required

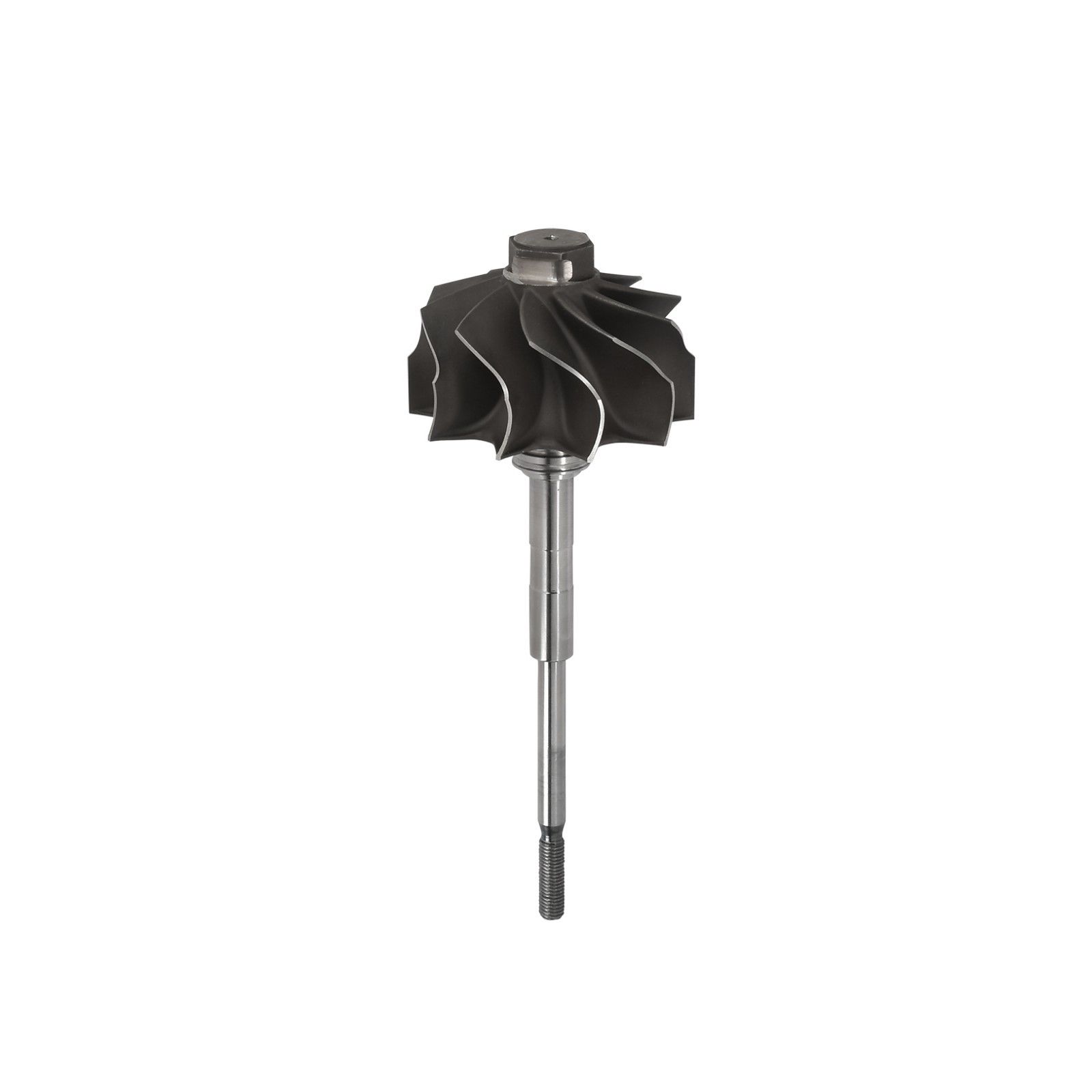

• 2003-style 10-blade Inconel turbine shaft — 72.5mm inducer × 66.4mm exducer × 16.1mm tip height, cast in Inconel 713C nickel-chromium superalloy and friction-welded to the shaft

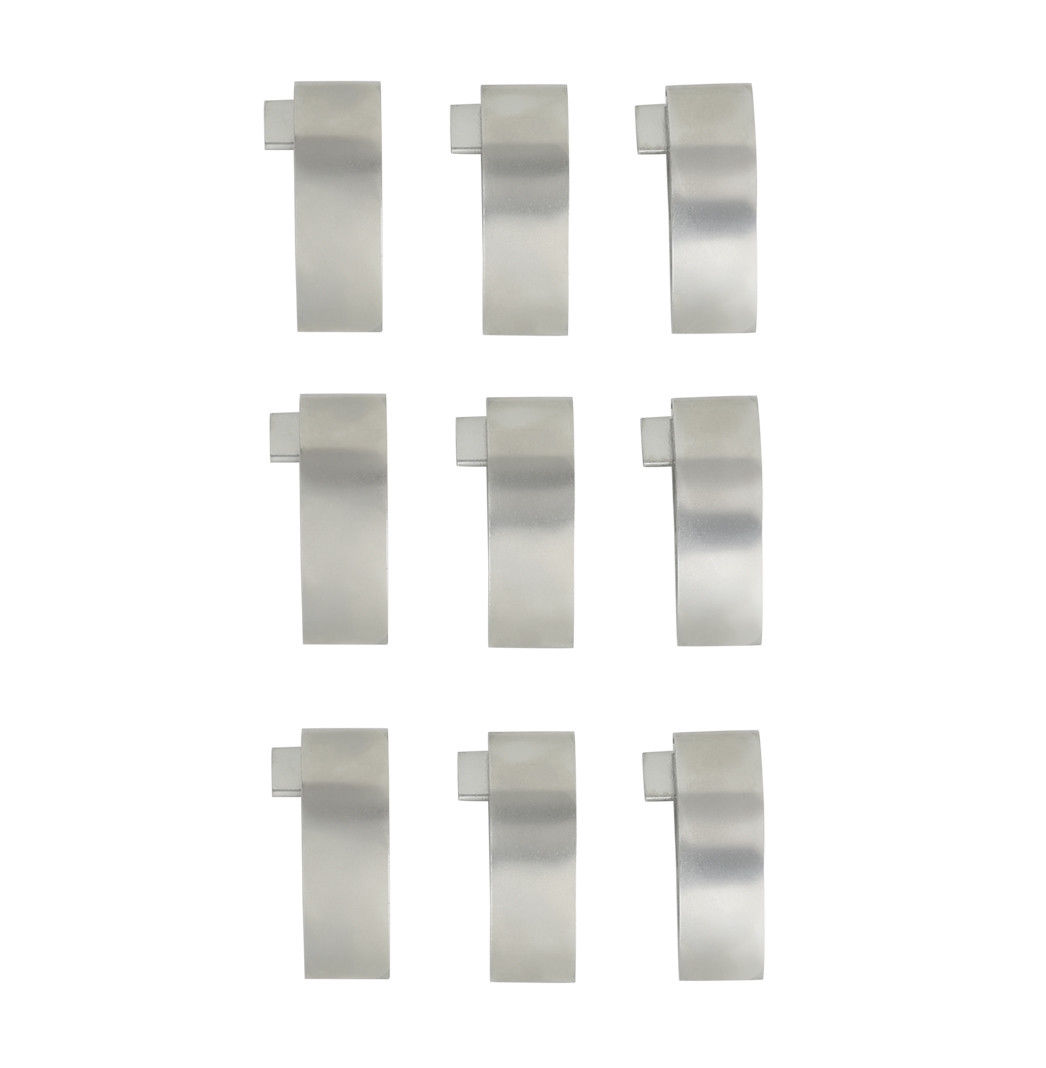

• 9 × 15mm variable vanes — the wider 2003-style vanes that flow more and resist carbon sticking
• V-band downpipe outlet — clean sealing surface for OEM or aftermarket V-band downpipes
• Includes V-band clamp and vane pack retaining snap ring
• Eliminates the machine shop step — no need to send the original turbine housing out to be re-bored to fit a 2003 shaft
• Direct fit upgrade on 2004-2010 6.0L Powerstroke trucks, vans, and Excursions

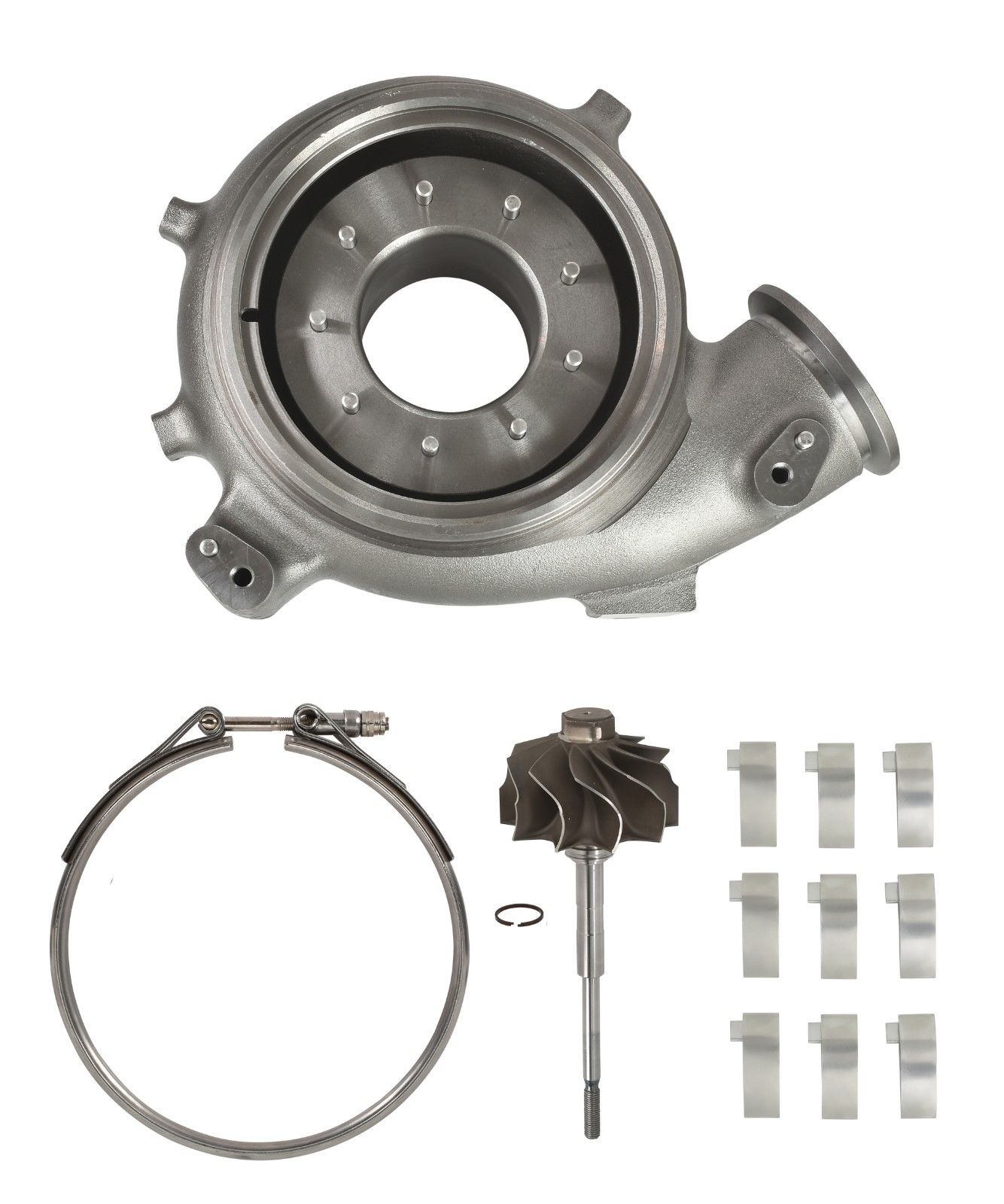

What's Included

• 2003-style turbine housing — 1
• 2003-style 10-blade Inconel turbine shaft and wheel assembly — 72.5mm × 66.4mm — 1
• 15mm variable vanes — 9
• Vane pack retaining snap ring — 1

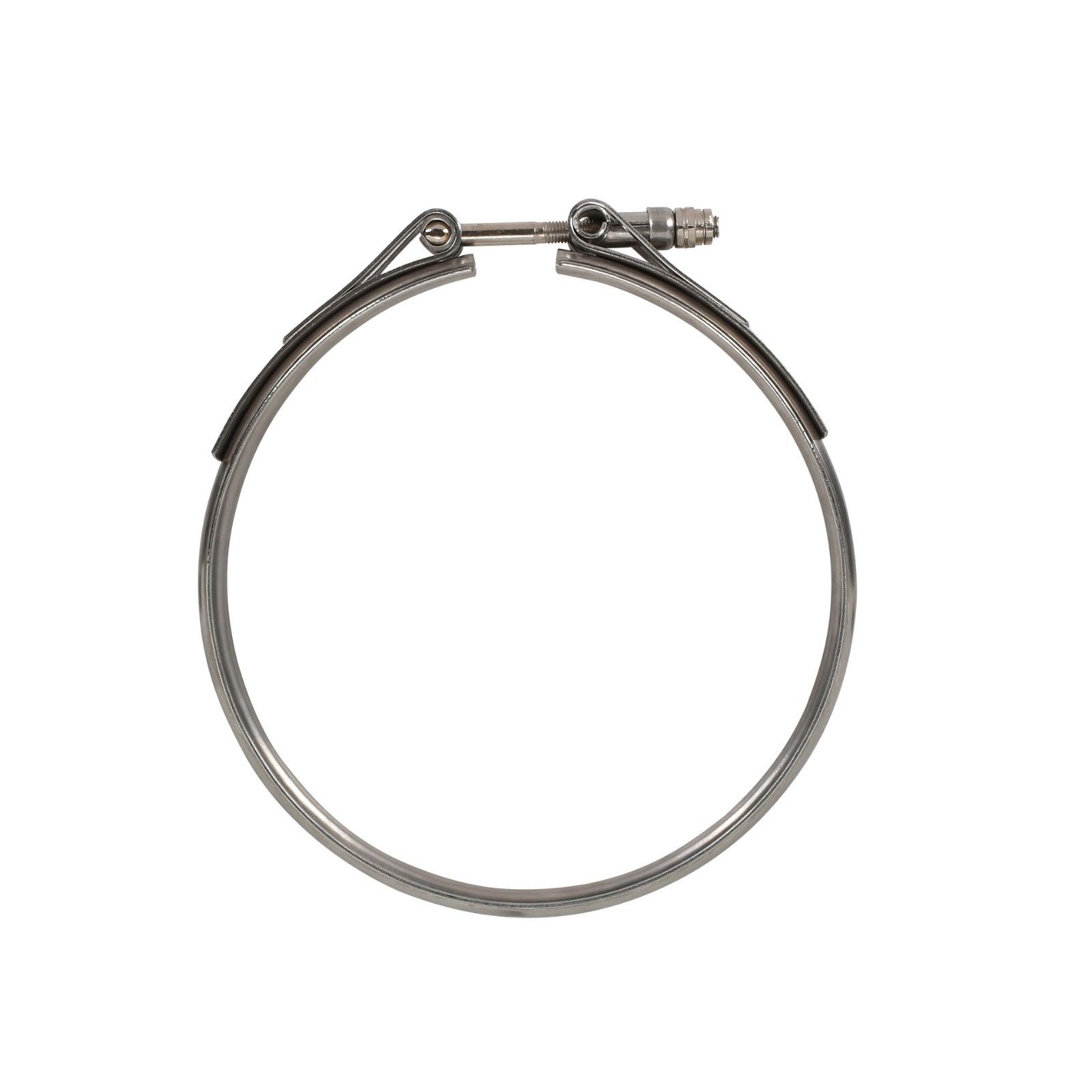

• V-band downpipe clamp — 1

Fits 2004-2010 6.0L Powerstroke

• 2004 – 2007 Ford F-250 / F-350 / F-450 / F-550 Super Duty 6.0L Powerstroke
• 2004 – 2010 Ford E-350 / E-450 / E-550 Econoline 6.0L Powerstroke
• 2004 – 2005 Ford Excursion 6.0L Powerstroke

Replaces Factory OEM Part Numbers

• 5C3Z-6K682-CCRM, 5C3Z6K682CCRM, 743250-5025S, 743250-9025S, TC-17-RM, TC17RM

DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC turbine housing rebuild kit is a professional DIY assembly product intended for experienced turbo builders and rebuild shops. Successful installation requires proper tools, OEM service procedures, cleanliness standards, correct sealing face preparation, and verification that the turbine wheel spins freely with no housing contact before running the turbo. Because SPOOLOGIC cannot control installation quality, all sales are final — no warranty, no returns, no exchanges. By purchasing this kit you acknowledge that you are responsible for correct installation and assembly.
