SPOOLOGIC 6+6 Billet Compressor Wheel

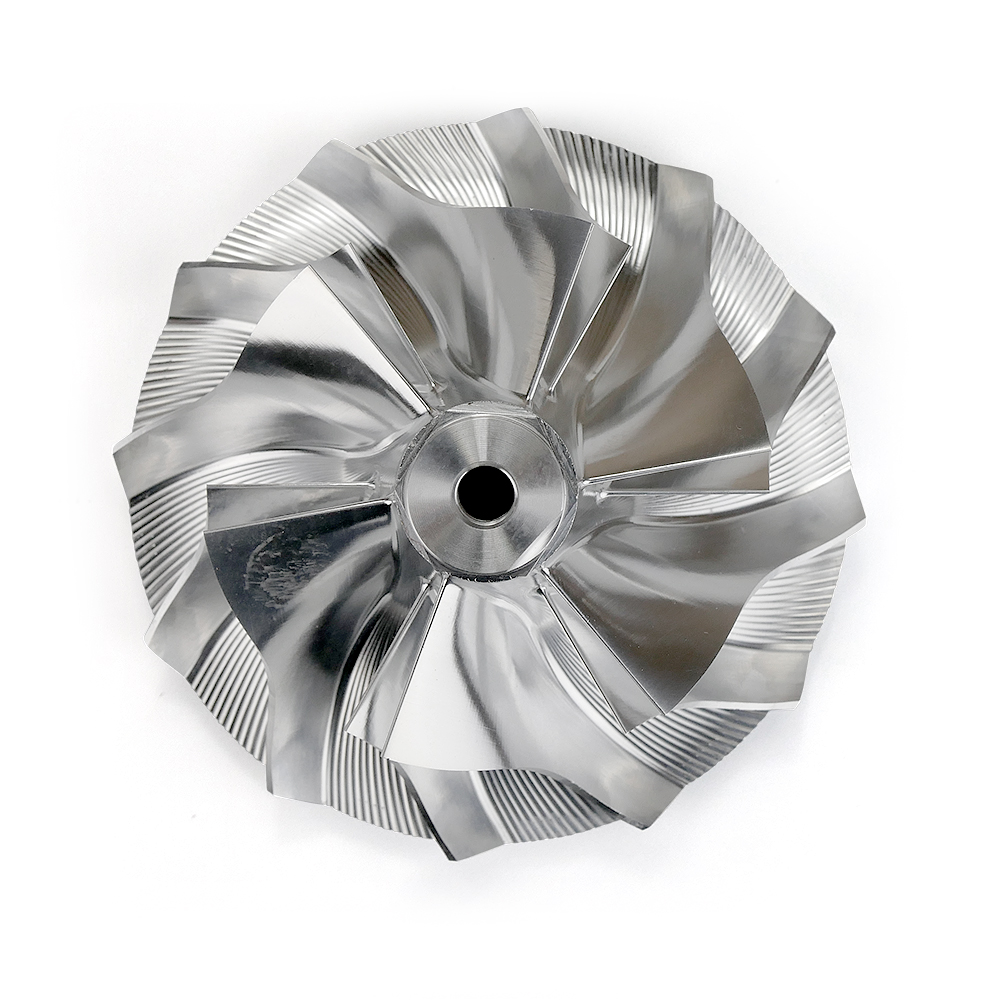

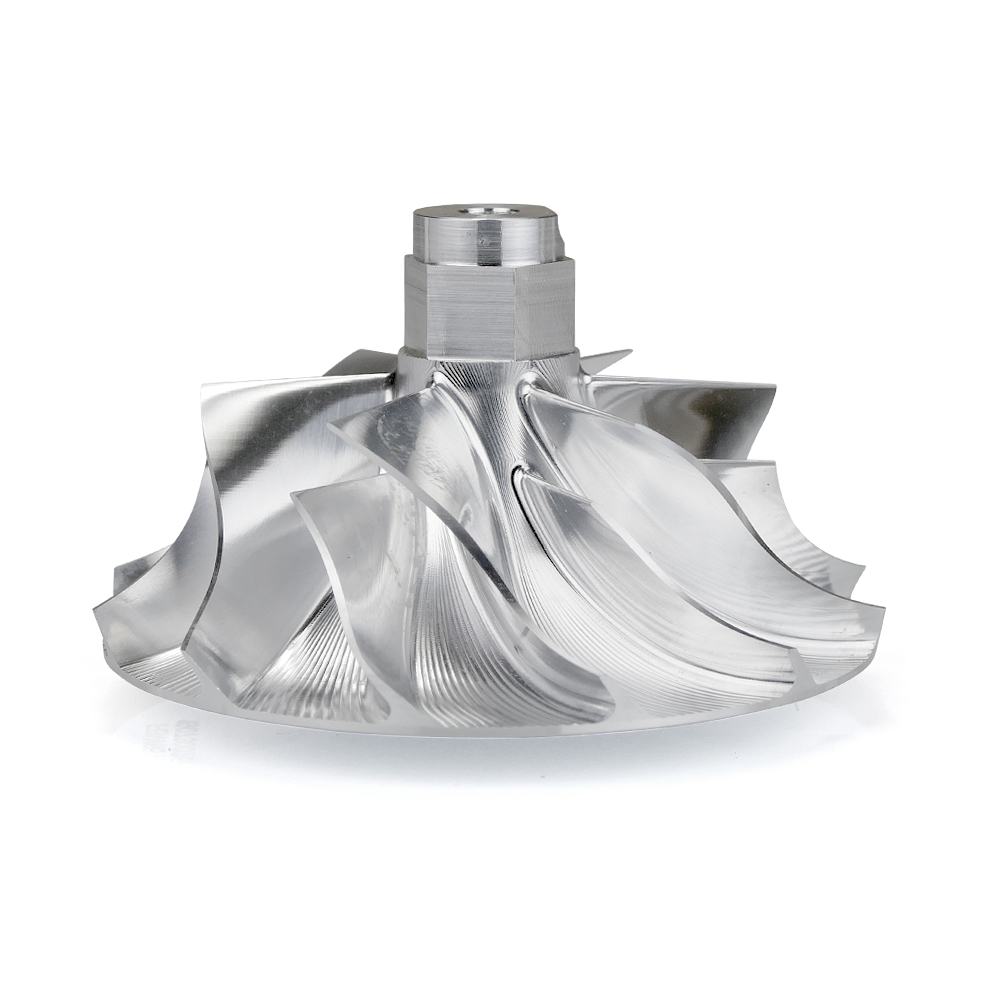

The SPOOLOGIC SL-220-014 is a 6+6-blade billet-aluminum compressor wheel built to wake up the GT3788VA PowerMax turbocharger on 2003-2010 Ford 6.0L Powerstroke GT3788VA PowerMax applications. 5-axis CNC-machined from billet aluminum with a 63.5/86/89 mm inducer/exducer/tip pattern, this wheel is a direct-swap performance upgrade for the OE cast wheel — more airflow, faster spool, and higher usable boost without any housing modification or custom tuning required.

Features

• Direct-fit billet-aluminum compressor wheel for the GT3788VA PowerMax turbocharger
• 6+6-blade layout, 63.5 mm inducer, 86 mm exducer, 89 mm major diameter
• 5-axis CNC-machined billet aluminum
• Extended-tip blade geometry for improved airflow and spool response
• Direct bolt-in to the GT3788VA PowerMax compressor housing — no machining, no housing modification
• Assembly balancing recommended after installation
• Sold as a DIY product — installation and balancing are the buyer’s responsibility

What's Included

• 1 SPOOLOGIC SL-220-014 billet-aluminum compressor wheel

Fitment

• 2003-2007 Ford F-250 F-350 F-450 F-550 6.0L Powerstroke
• 2004-2010 Ford E-350 E-450 Econoline 6.0L Powerstroke
• 2003-2005 Ford Excursion 6.0L Powerstroke
• For GT3788VA PowerMax Turbo Only

⚠️ Fits the GT3788VA PowerMax compressor housing without machining. Does not fit other compressor housings.

Why It Matters

The GT3788VA PowerMax was Ford’s upgrade for high-GVWR 6.0L applications, and a billet wheel takes that ceiling higher still — more airflow, a wider efficiency island, and the shaft-speed headroom the cast wheel doesn’t have.

Performance Gains Over the OE Cast Wheel

• Faster spool — lighter, stiffer billet blades cut rotational inertia, so the turbo lights sooner off idle and out of the corners
• Extended-tip compressor-wheel design
• Stronger top-end pull — sustained boost at RPM where the OE cast wheel is running out of breath
• 5-axis CNC-machined billet aluminum construction
• Sharper throttle response — quicker RPM changes mean less lag between shifts and better drivability under load
• Cooler compressor discharge — improved wheel efficiency drops IAT versus a worn or overworked cast wheel at the same boost level
• Bolt-in upgrade — direct-fit to the GT3788VA PowerMax compressor housing, no machining or clearancing needed
• Built for high-GVWR and hot-shot use — sustained load without the cast wheel’s fatigue risk
• Supports the higher fuel and boost demands of tuned PowerMax setups

Why You Replace the Compressor Wheel

The compressor wheel is the aluminum airfoil pack on the cold side of the turbo that draws intake air, spins it up to 100,000+ RPM, and pushes it into the intake manifold as pressurized charge air. It is one of the highest-stress rotating components on the engine. Here’s why it gets replaced:

• Foreign object damage — a bolt, nut, filter fragment, or torn intake elbow sends debris through the wheel. Even a small dent in the leading edge unbalances the assembly and shortens shaft life.
• Erosion and rub — years of dirty intake air erode the leading edge of each blade. A worn wheel with rounded blades makes less boost per unit of turbine speed — the turbo works harder for the same result.
• Cracked hub or blade root — high-cycle fatigue eventually opens a crack at a blade root or the hub bore. A cracked cast wheel can throw a blade at speed, destroying the compressor housing.
• Rebuild policy — when the CHRA is opened for a shaft, bearing, or seal service, the wheel comes off. Reusing a worn or bent wheel wastes the whole rebuild.

Wheel Specifications

• Construction: billet aluminum
• Blade Count: 6+6
• Inducer Diameter: 63.5 mm
• Exducer Diameter: 86 mm
• Extended-Tip Diameter: 89 mm
• Turbo Model: GT3788VA PowerMax

Installation and Balancing Notes

• The compressor wheel is individually balanced. Balancing the assembled rotating assembly is recommended best practice.
• Inspect the shaft, compressor-wheel bore, and mating surfaces before assembly.
• Shaft nut torque. Torque the compressor-side shaft nut to the turbocharger manufacturer’s spec, in a controlled increment, holding the turbine wheel from spinning. Over-torque stretches the shaft; under-torque lets the nut back off.
• Clearance check. After torque, spin the assembly by hand and confirm the wheel does not contact the compressor housing at any angle. Verify tip clearance is within OEM spec at the exducer face.
• Follow the applicable service requirements for shaft-nut replacement and tightening.

OEM and Manufacturer References

• 772441-5002S
• 777469-5002S

⚠️ Emissions Notice

Not CARB approved. Not legal for sale or use in the state of California.

⚠️ DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC turbocharger repair product is intended for experienced turbo builders and qualified technicians. Proper installation requires suitable tools, careful inspection, and correct assembly. All sales are final—no warranty, returns, or exchanges. Confirm compatibility before ordering. See the SPOOLOGIC Warranty Policy for details on products sold without a warranty.
