The SPOOLOGIC High Flow Exhaust Manifold Kit (SL-500-046) is a heavy-duty ductile iron upgrade for the 2007.5-2018 6.7L Cummins. Built to replace the factory manifold that shrinks, warps, and cracks under DPF regen heat cycles, it restores drive pressure to the HE351VE/HE300VG variable-geometry turbo, sharpens spool, drops EGTs, and eliminates the pre-turbo exhaust leaks that trigger VGT position codes.

Why It Matters

The factory 6.7L Cummins manifold is a rigid single-piece casting that has to survive DPF regeneration heat spikes on top of normal exhaust cycling. Uneven wall thickness concentrates stress at the runners and turbo flange, the casting bows, studs pull, and gasket clamp is lost. Cracks propagate into visible fractures at the flanges. Once the manifold leaks, exhaust energy escapes before it reaches the VGT turbine — you lose drive pressure, spool softens, EGTs climb, and the actuator gets blamed for what is really a manifold problem. The SPOOLOGIC replacement uses a heavier, higher-grade casting engineered to survive DPF regen thermal loads and hold flange geometry so the VGT gets full drive pressure.

Performance Gains Over the OE Manifold

• Heavy-duty ductile iron construction survives DPF regen heat cycles that crack OE castings
• Restores drive pressure to the HE351VE / HE300VG variable-geometry turbo
• Faster VGT spool and lower EGTs vs. a warped or leaking OE manifold
• Eliminates the pre-turbo exhaust leaks that cause soft spool and VGT position codes
• Improved runner geometry preserves exhaust pulse energy for sharper throttle response
• Machined flanges maintain gasket clamp through repeated hot-soak cycles
• Fully EGR-compatible — keeps OEM emissions strategies intact
• Frees up power the OE restriction was leaving on the table

Interchange Part Numbers

Cummins 5301441; Mopar 68027070AA, 68027070AB, 68210184AA, 68210184AB, 68482545AA

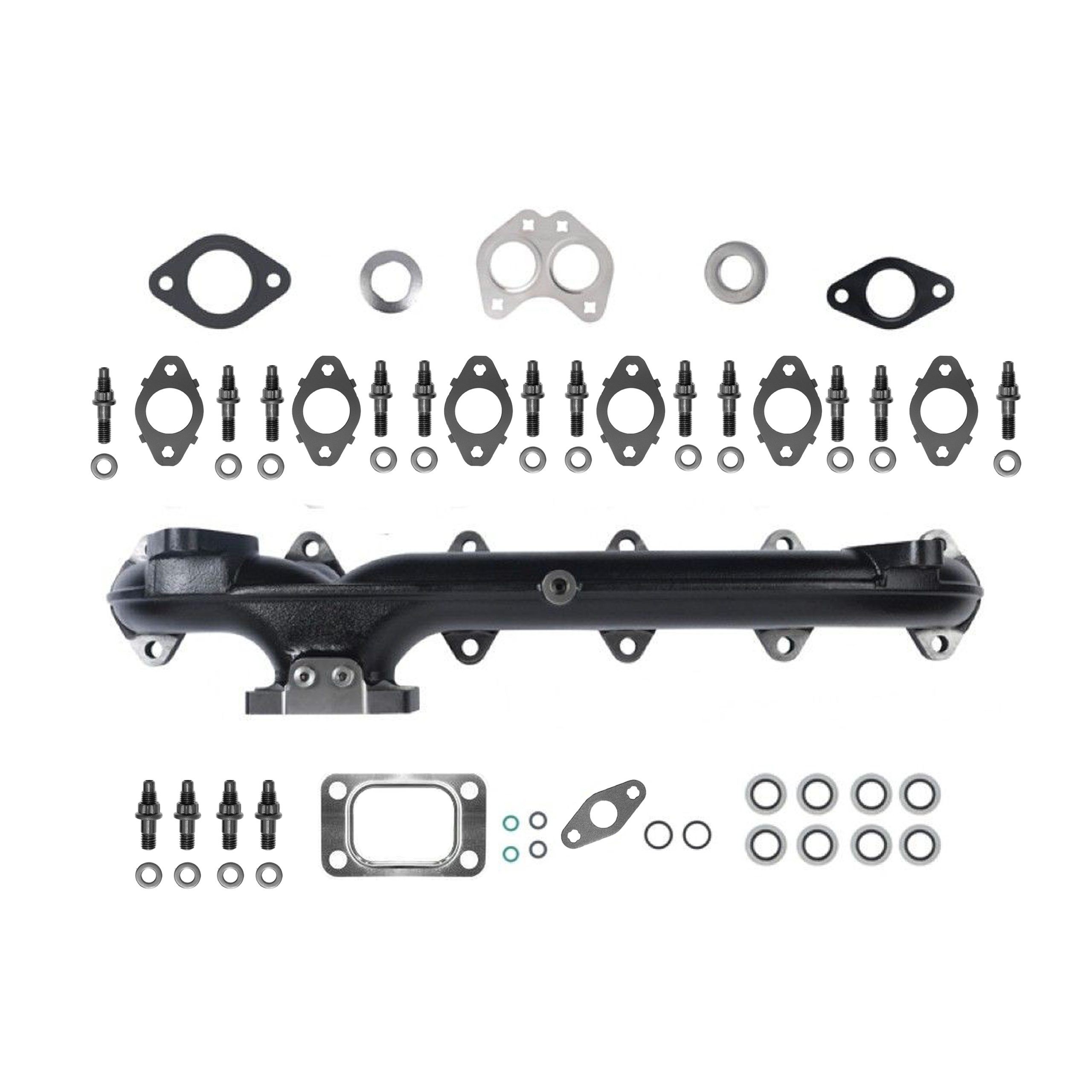

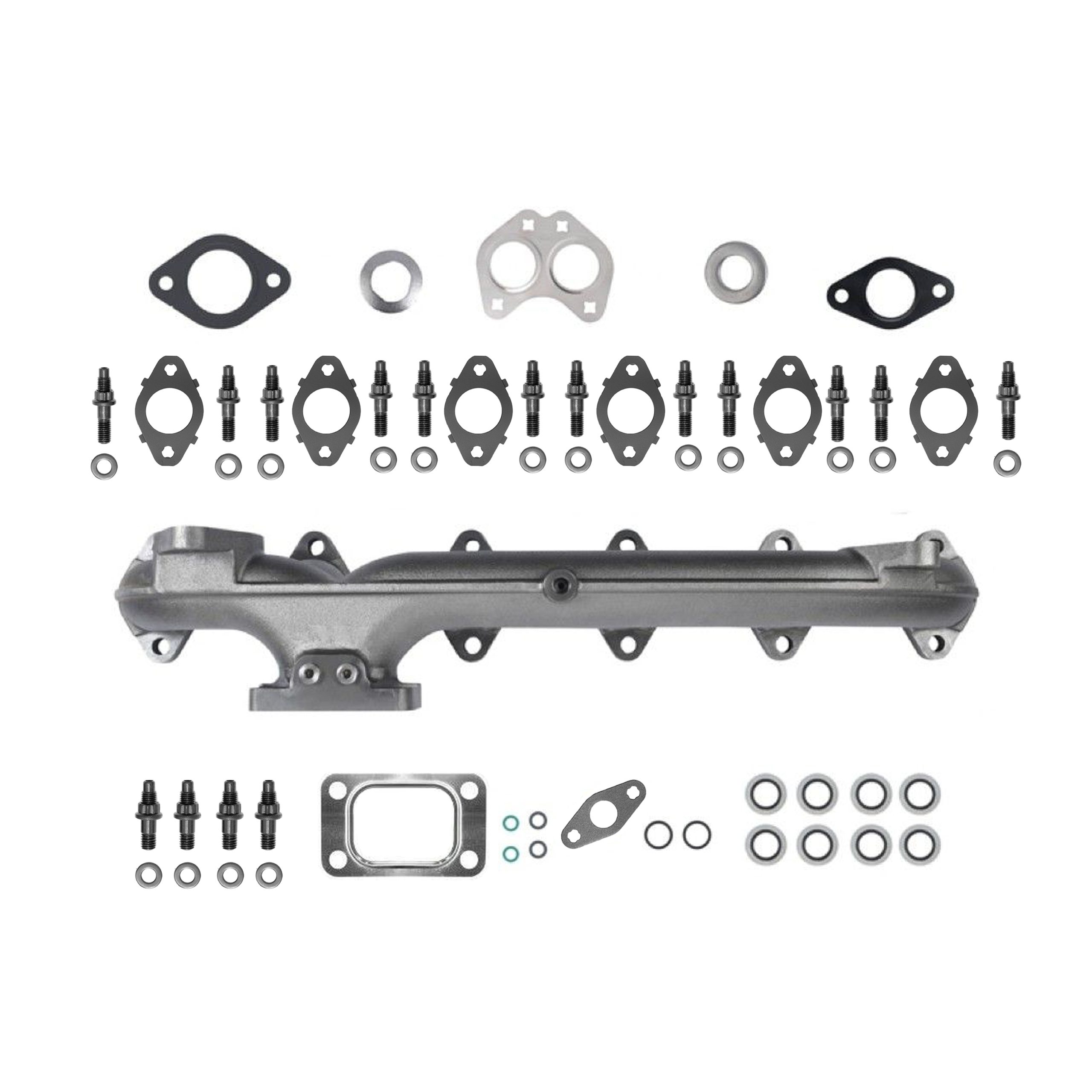

What’s Included

• SPOOLOGIC high-flow ductile iron exhaust manifold
• Manifold gaskets

Features

• Heavy-duty ductile iron casting engineered to outlast the OE 6.7L manifold
• Machined flanges seal cleanly to the head and turbo mount
• Ceramic-coated finish for high-heat and DPF-regen corrosion resistance
• EGR-compatible — keeps factory emissions strategy intact
• Fits HE351VE and HE300VG variable-geometry turbo configurations

Install Notes

• Torque manifold bolts to factory spec in the recommended sequence — over-torque cracks the flanges
• Replace manifold gaskets and inspect turbo mount gasket while access is open
• Anti-seize all fasteners — Cummins manifold bolts routinely seize into the head
• Re-torque after first heat cycle for consistent clamp load
• If troubleshooting VGT codes, perform the actuator relearn after install before condemning the turbo

Emissions Notice: Not CARB approved. Not legal for sale or use in the state of California.

Fits 2007.5-2018 6.7L Cummins

• 2007.5 – 2018 Dodge Ram 2500 / 3500 / 4500 / 5500 6.7L Cummins

1-Year Limited Warranty

Every SPOOLOGIC exhaust manifold is covered by a 1-Year Limited Warranty against defects in materials and workmanship from the date of purchase. Warranty coverage requires that the exhaust manifold first be shipped back to SPOOLOGIC for inspection. If SPOOLOGIC determines the failure was caused by a defect in materials or workmanship, the exhaust manifold will be replaced at SPOOLOGIC’s discretion. Warranty does not cover damage from over-torqued or improperly torqued hardware, cracked flanges from improper install sequence, use outside the listed fitment, EGTs beyond the manifold’s rated operating range, tuning or fueling that exceeds safe exhaust gas temperatures, cosmetic wear, ceramic coating discoloration or chipping, surface rust on raw manifolds, or normal heat cycling marks. Warranty does not cover labor, shipping, towing, downtime, gaskets, hardware, or any other costs outside the exhaust manifold itself.
