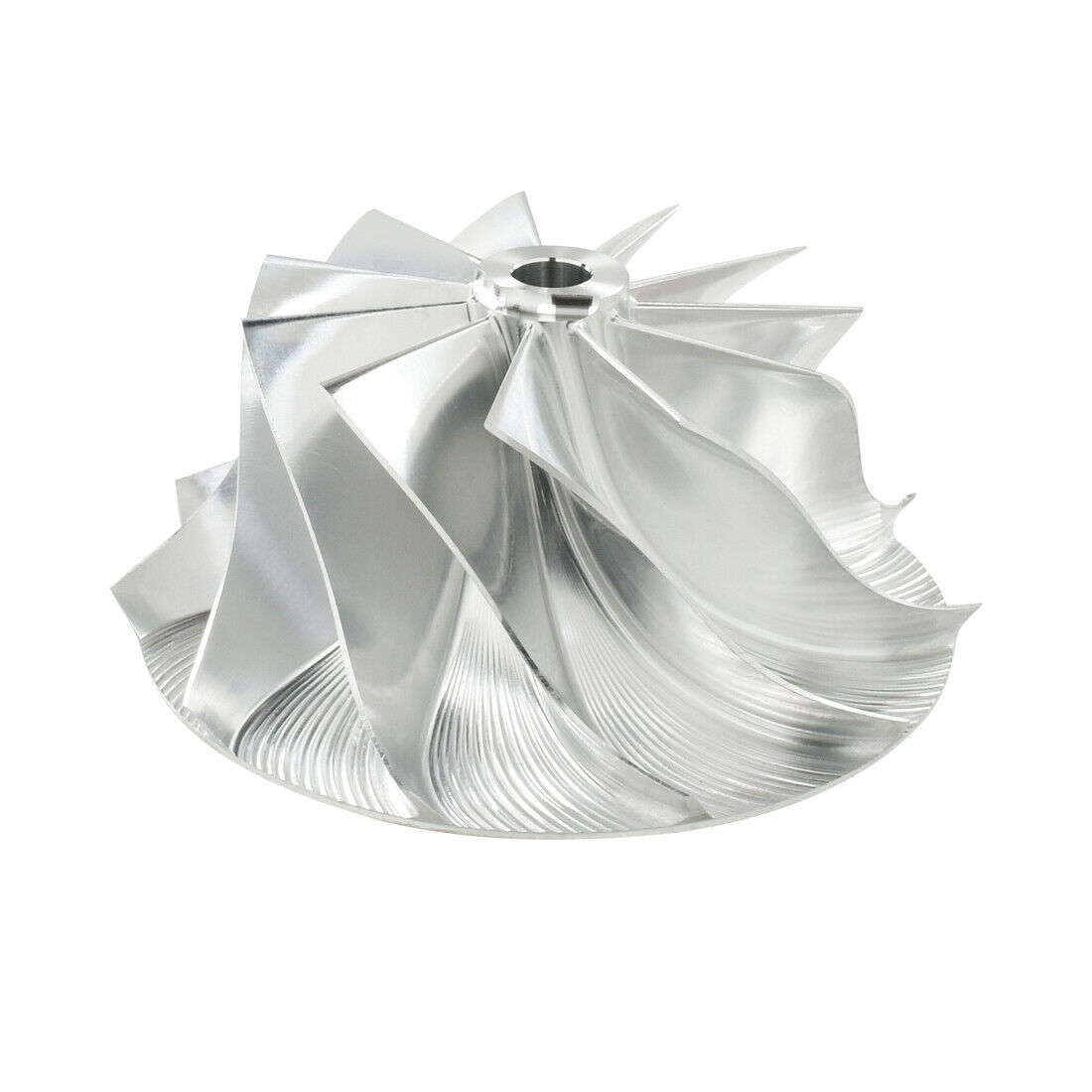

The SPOOLOGIC SL-220-052 is a 11-blade billet-aluminum compressor wheel built to wake up the RHG6 turbocharger on 2001-2004 GM 6.6L Duramax LB7 applications. Machined from a solid aluminum forging with a 60.6/82/87.7 mm inducer/exducer/tip pattern, this wheel is a direct-swap performance upgrade for the OE cast wheel — more airflow, faster spool, and higher usable boost without any housing modification or custom tuning required.

Why It Matters

The LB7 Duramax RHG6 is a fixed-geometry turbo with a tight compressor wheel — a billet 11-blade upgrade is the single highest-impact change you can make to the cold side without replacing the turbo outright.

Wheel Specifications

• Construction: billet aluminum
• Blade Count: 11
• Inducer Diameter: 60.6 mm
• Exducer Diameter: 82 mm
• Major (Tip) Diameter: 87.7 mm
• Turbo Model: RHG6

Performance Gains Over the OE Cast Wheel

• Faster spool — lighter, stiffer billet blades cut rotational inertia, so the turbo lights sooner off idle and out of the corners
• Higher airflow ceiling — extended-tip blade geometry a cast wheel physically can't hold moves more CFM at the same shaft speed
• Stronger top-end pull — sustained boost at RPM where the OE cast wheel is running out of breath
• Higher safe boost ceiling — forged construction is rated well beyond the shaft speeds where cast wheels flex, crack, or throw blades
• Sharper throttle response — quicker RPM changes mean less lag between shifts and better drivability under load
• Cooler compressor discharge — improved wheel efficiency drops IAT versus a worn or overworked cast wheel at the same boost level
• Bolt-in upgrade — direct-fit to the OE compressor housing, no machining or clearancing needed
• Wakes up the LB7 — the RHG6 is a small compressor, and billet blade geometry moves real air past its stock ceiling
• Reduces drive pressure — more efficient compression at high load means lower EGTs and less exhaust backpressure

Why You Replace the Compressor Wheel

The compressor wheel is the aluminum airfoil pack on the cold side of the turbo that draws intake air, spins it up to 100,000+ RPM, and pushes it into the intake manifold as pressurized charge air. It is one of the highest-stress rotating components on the engine. Here's why it gets replaced:

• Foreign object damage (FOD) — a bolt, nut, filter fragment, or torn intake elbow sends debris through the wheel. Even a small dent in the leading edge unbalances the assembly and shortens shaft life.
• Erosion and rub — years of dirty intake air erode the leading edge of each blade. A worn wheel with rounded blades makes less boost per unit of turbine speed — the turbo works harder for the same result.
• Cracked hub or blade root — high-cycle fatigue eventually opens a crack at a blade root or the hub bore. A cracked cast wheel can throw a blade at speed, destroying the compressor housing.
• Rebuild policy — when the CHRA is opened for a shaft, bearing, or seal service, the wheel comes off. Reusing a worn or bent wheel wastes the whole rebuild.

Install Notes — This Wheel Must Be Balanced

• High-speed balancing is required. A compressor wheel is a rotating mass. Installed unbalanced, it will destroy the shaft, thrust bearing, and seals on the first heat cycle. Every SPOOLOGIC wheel must be installed on a rebuilt CHRA and high-speed balanced (VSR / core balancer) before the turbo is returned to service.
• Bore and hub inspection. The wheel bore must match the CHRA shaft with a light interference fit — not sloppy, not press-tight. A loose bore lets the wheel walk on the shaft; a tight bore galls on install.
• Shaft nut torque. Torque the compressor-side shaft nut to the turbocharger manufacturer's spec, in a controlled increment, holding the turbine wheel from spinning. Over-torque stretches the shaft; under-torque lets the nut back off.
• Clearance check. After torque, spin the assembly by hand and confirm the wheel does not contact the compressor housing at any angle. Verify tip clearance is within OEM spec at the exducer face.
• Do not reuse the OE shaft nut. Compressor shaft nuts are torque-to-yield and stretch on installation. Reusing a stretched nut lets the assembly loosen at speed.

Interchange / Cross-Reference Part Numbers

• 97188685
• 97192618
• 97192619
• 97254688

What's Included

• 1 SPOOLOGIC SL-220-052 billet-aluminum compressor wheel

Features

• Direct-fit billet-aluminum compressor wheel for the RHG6 turbocharger
• 11-blade layout, 60.6 mm inducer, 82 mm exducer, 87.7 mm major diameter
• Machined from solid billet aluminum forging — higher shaft-speed capability than cast
• Extended-tip blade geometry for improved airflow and spool response
• Direct bolt-in to the OE compressor housing — no machining, no housing modification
• Requires high-speed balancing on the assembled CHRA before return to service
• Sold as a DIY product — installation and balancing are the buyer's responsibility

Emissions Notice: Not CARB approved. Not legal for sale or use in the state of California.

Fits 2001-2004 6.6L Duramax LB7

• 2001 – 2004 Chevrolet Silverado GMC Sierra 2500 / 3500 6.6L Duramax LB7

DIY Product — All Sales Final, No Warranty, No Returns

This SPOOLOGIC compressor wheel is a professional DIY assembly product intended for experienced turbo builders and rebuild shops. Successful installation requires proper tools, OEM service procedures, cleanliness standards, correct wheel-to-shaft fitment, torque-to-yield shaft nut, and high-speed VSR balancing of the completed rotating assembly before return to service. Because SPOOLOGIC has no control over installation quality, balancing accuracy, or the condition of the parts the wheel is installed into, all sales are final — no warranty, no returns, no exchanges. By purchasing this wheel you acknowledge that you are responsible for correct installation, balancing, and verification.
